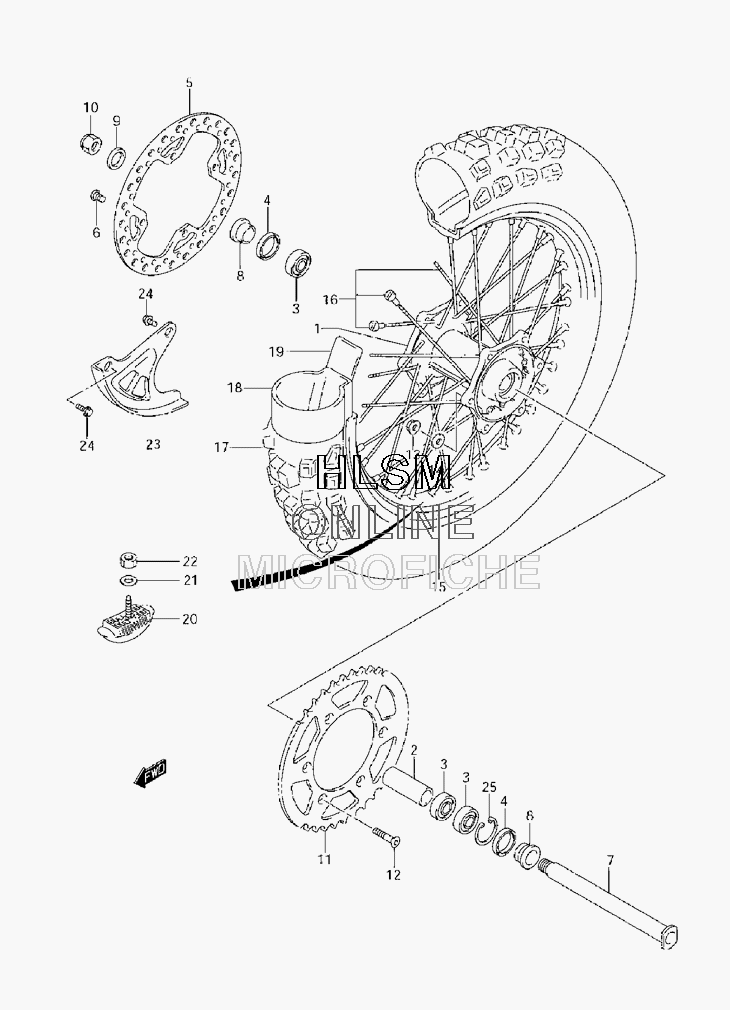

WHEEL - REAR для Suzuki RM-Z250K7 - 2007 года выпуска
-
№АртикулНазвание
-
164111-35G20 HUB, REAR WHEELHUB, REAR WHEEL
-
264731-35G01 SPACER, BEARINGSPACER, BEARING
-
309262-25139 BEARINGBEARING
-
409283-32045 SEAL, DUSTSEAL, DUST
-
569211-35G10 DISC, REAR BRAKEDISC, REAR BRAKE
-
609139-08022 SCREWSCREW
-
764711-35G00 AXLE, REARAXLE, REAR
-
864751-35G00 SPACERSPACER
-
909160-22081 WASHERWASHER
-
1009159-22007 NUTNUT
-
1164511-37E00 SPROCKET, REAR (NT:48)SPROCKET, REAR (NT:48)
-
1164511-36E00 SPROCKET, REAR (NT:50) (OPT)SPROCKET, REAR (NT:50) (OPT)
-
1164511-40261 SPROCKET, REAR (NT:51) (OPT)SPROCKET, REAR (NT:51) (OPT)
-
1164511-28E00 SPROCKET, REAR (NT:49) (OPT)SPROCKET, REAR (NT:49) (OPT)
-
1209120-08017 SCREW (8X30.5)SCREW (8X30.5)
-
1309159-08133 NUTNUT
-
1409160-08082 WASHERWASHER
-
1565311-10H00 RIM, REAR WHEEL (1.85X19)RIM, REAR WHEEL (1.85X19)
-
1665320-35G10 SPOKE SET, WHEELSPOKE SET, WHEEL
-
1765110-36F00 TIRE, REAR (100/90-19) (DUNLOP)TIRE, REAR (100/90-19) (DUNLOP)
-
1855200-44610 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
1965261-01B30 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2065270-43D00 STOPPER, BEADSTOPPER, BEAD
-
2108322-0108A WASHERWASHER
-
2208310-0008A NUTNUT
-
2369231-37F11 COVER, REAR DISCCOVER, REAR DISC
-
2409116-06197 BOLTBOLT
-
2508331-4142A CIRCLIPCIRCLIP
