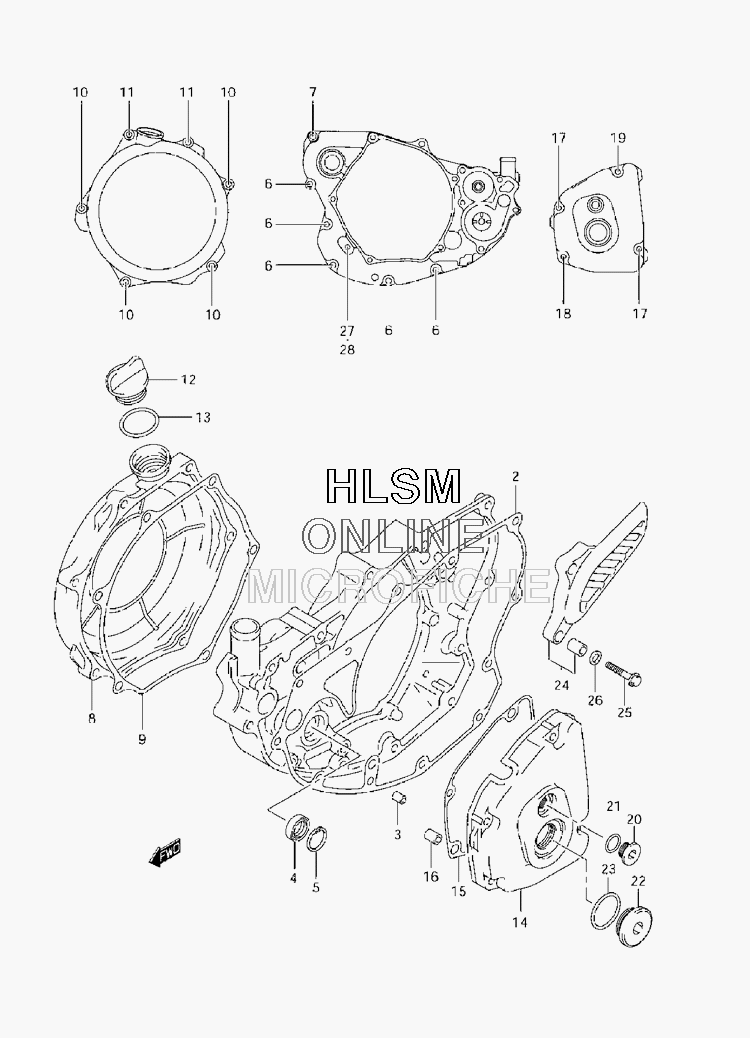

CRANKCASE COVER для Suzuki RM-Z250K7 - 2007 года выпуска
-
№АртикулНазвание
-
111340-10H00 COVER, CLUTCH INNERCOVER, CLUTCH INNER
-
211482-10H00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
304211-09109 PINPIN
-
409282-12012 SEAL, OILSEAL, OIL
-
508331-4124A CIRCLIPCIRCLIP
-
601547-0625A BOLT (6X25)BOLT (6X25)
-
701547-0630A BOLT (6X30)BOLT (6X30)
-
811371-10H00 COVER, CLUTCH OUTERCOVER, CLUTCH OUTER
-
911484-10H00 GASKET, CLUTCH COVER OUTERGASKET, CLUTCH COVER OUTER
-
1001547-0625A BOLT, OUTER COVER (6X25)BOLT, OUTER COVER (6X25)
-
1101547-0660A BOLT, OUTER COVER (6X60)BOLT, OUTER COVER (6X60)
-
1209259-20008 PLUG, OIL FILLERPLUG, OIL FILLER
-
1309280-17003 O RINGO RING
-
1411351-10H00 COVER, MAGNETOCOVER, MAGNETO
-
1511483-10H00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1604211-09109 PINPIN
-
1701547-0630A BOLT (6X30)BOLT (6X30)
-
1801547-0635A BOLT (6X35)BOLT (6X35)
-
1909103-06252 BOLT (6X35)BOLT (6X35)
-
2009248-12007 PLUG, T.D.C.PLUG, T.D.C.
-
2109280-10016 O RING (D:1.9,ID:9.8)O RING (D:1.9,ID:9.8)
-
2209259-26011 PLUG, CRANK HOLEPLUG, CRANK HOLE
-
2309280-22008 O RING (D:3.1,ID:22.7)O RING (D:3.1,ID:22.7)
-
2411360-35G00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2501547-0630A BOLT (6X30)BOLT (6X30)
-
2608322-0106B WASHERWASHER
-
2707120-0610B BOLT, OIL CHECKBOLT, OIL CHECK
-
2809168-06004 GASKETGASKET
