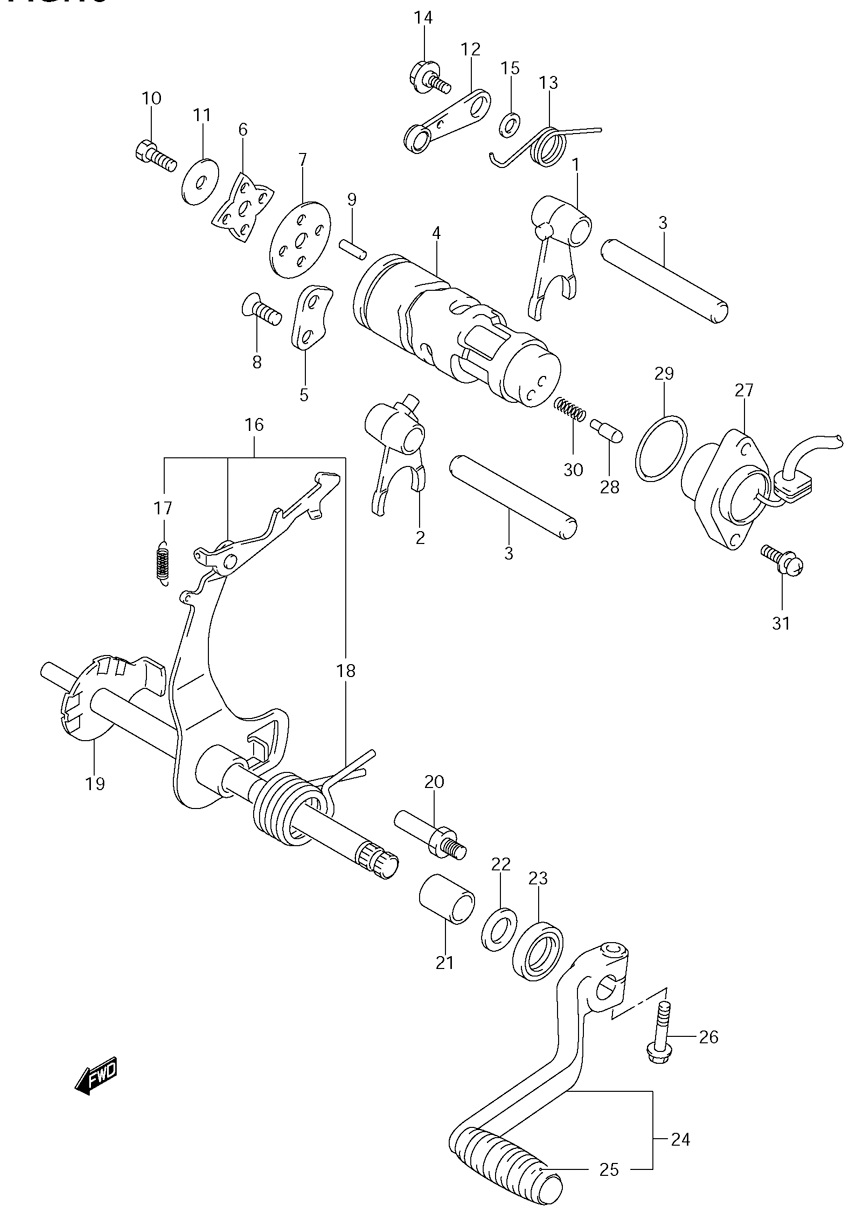

GEAR SHIFTING для Suzuki DR-Z70K8 - 2008 года выпуска
-
№АртикулНазвание
-
125211-09400 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-02A00 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325421-04702 SHAFT, GEAR SHIFT FORKSHAFT, GEAR SHIFT FORK
-
425311-14H00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
525341-09400 RETAINER, GEAR SHIFT CAMRETAINER, GEAR SHIFT CAM
-
625381-35401 PLATE, SHIFT CAM STOPPERPLATE, SHIFT CAM STOPPER
-
725382-35401 GUIDE, GR SHIFT CAMGUIDE, GR SHIFT CAM
-
809126-06014 SCREW, GEAR SHIFT CAM RETAINERSCREW, GEAR SHIFT CAM RETAINER
-
909261-04002 PIN, GEAR SHIFT CAM (4X13.8)PIN, GEAR SHIFT CAM (4X13.8)
-
1001547-0616A BOLT, SHIFT CAM PINBOLT, SHIFT CAM PIN
-
1108211-06221 STOPPER, SHIFT CAM PINSTOPPER, SHIFT CAM PIN
-
1225350-09D00 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1325355-14H00 SPRING, SHIFT CAM STOPPERSPRING, SHIFT CAM STOPPER
-
1409111-06041 BOLT, SHIFT CAM STOPPERBOLT, SHIFT CAM STOPPER
-
1508211-06121 WASHER SHIFT CAM STOPPERWASHER SHIFT CAM STOPPER
-
1625501-09440 ARM ASSEMBLY, GEAR SHIFTARM ASSEMBLY, GEAR SHIFT
-
1709443-05030 ...SPRING, SHIFT PAWL...SPRING, SHIFT PAWL
-
1809444-26025 ...SPRING...SPRING
-
1925510-09405 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2025671-35410 STOPPER, SHAFT ARMSTOPPER, SHAFT ARM
-
2109180-12036 SPACER, GEAR SHIFT ARMSPACER, GEAR SHIFT ARM
-
2209181-12167 WASHER, GEAR SHIFT ARMWASHER, GEAR SHIFT ARM
-
2309285-12002 SEAL, GEAR SHIFT SHAFT OILSEAL, GEAR SHIFT SHAFT OIL
-
2425600-14H00 LEVER ASSEMBLY, GEAR SHIFTLEVER ASSEMBLY, GEAR SHIFT
-
2525652-16500 ...RUBGER, GEAR SHIFT PEDAL...RUBGER, GEAR SHIFT PEDAL
-
2601500-0620B BOLT, SHIFT LEVERBOLT, SHIFT LEVER
-
2737720-09420 BASE ASSEMBLY, NEUT SW TERMBASE ASSEMBLY, NEUT SW TERM
-
2809209-05011 CONTACT, NEUT SWCONTACT, NEUT SW
-
2909280-26005 O RING, NEUT SWO RING, NEUT SW
-
3009440-04010 SPRING, NEUT SWSPRING, NEUT SW
-
3102112-1516A SCREW, NEUT SWSCREW, NEUT SW
