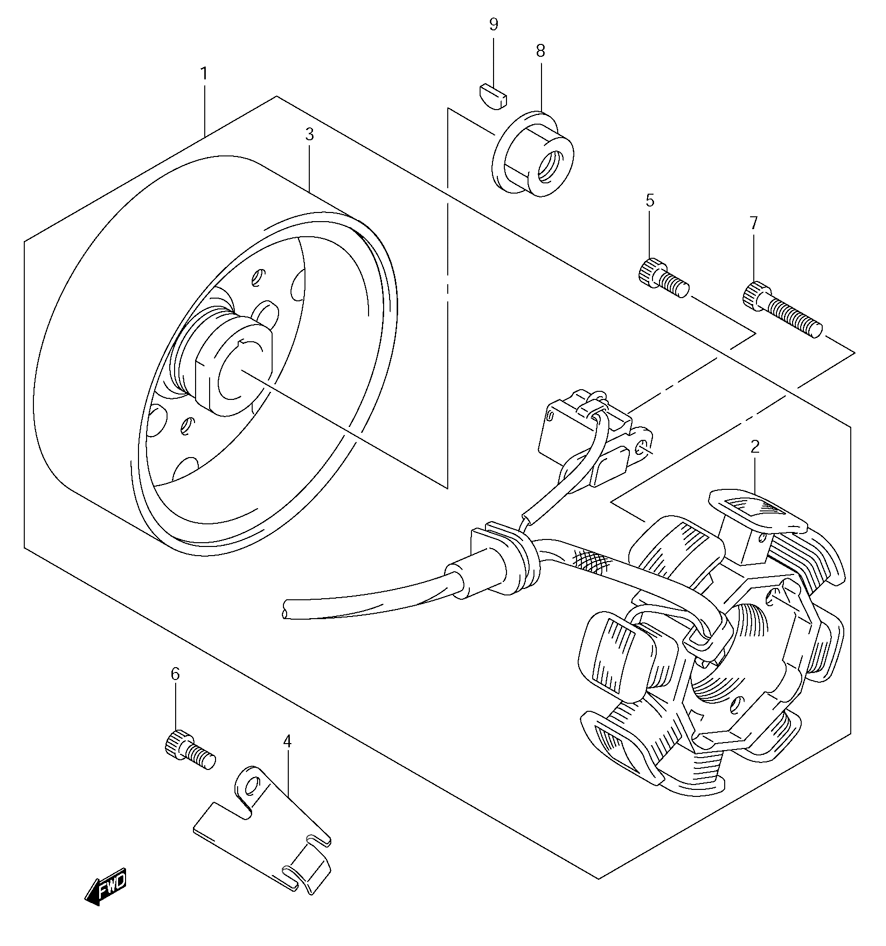

MAGNETO для Suzuki DR-Z70K8 - 2008 года выпуска
-
№АртикулНазвание
-
132100-14H00 MAGNETO ASSEMBLYMAGNETO ASSEMBLY
-
232101-14H00 ...STATOR ASSEMBLY, MAGNETO...STATOR ASSEMBLY, MAGNETO
-
332102-14H00 ...ROTOR ASSEMBLY, MAGNETO...ROTOR ASSEMBLY, MAGNETO
-
432371-30D00 CLAMP, MAGNETO LEAD WIRECLAMP, MAGNETO LEAD WIRE
-
507130-0512A SCREW, PULSER COILSCREW, PULSER COIL
-
607130-0612A BOLT, MAGNETO LEAD CLAMPBOLT, MAGNETO LEAD CLAMP
-
707130-0620A BOLT, MAGNETO STATORBOLT, MAGNETO STATOR
-
808316-1010A NUT, MAGNETO ROTORNUT, MAGNETO ROTOR
-
908341-31039 KEY, MAGNETOKEY, MAGNETO
