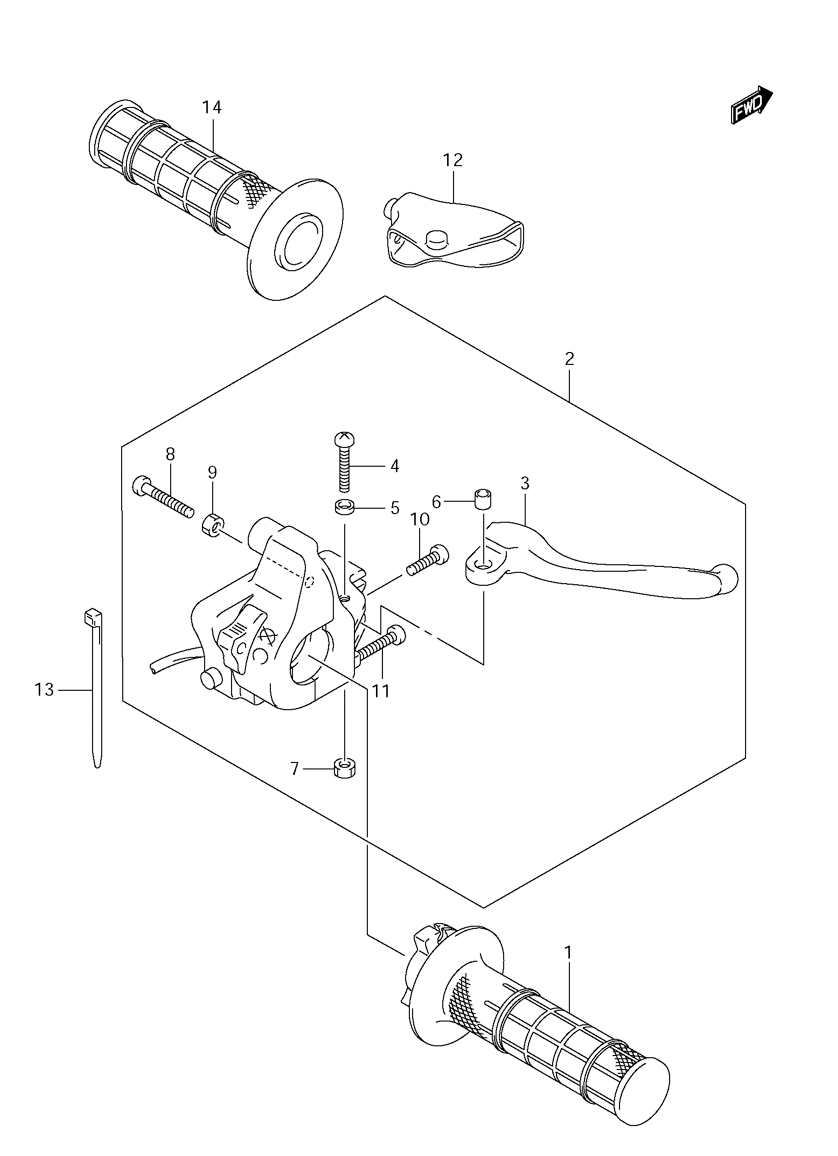

HANDLEBAR - LEVERS для Suzuki DR-Z70K8 - 2008 года выпуска
-
№АртикулНазвание
-
157110-14H00 GRIP, THROTTLEGRIP, THROTTLE
-
257300-14H00 LEVER ASSEMBLY, FRONT BRAKELEVER ASSEMBLY, FRONT BRAKE
-
357421-14H00 ...LEVER...LEVER
-
402112-0525A ...SCREW, PIVOT...SCREW, PIVOT
-
557336-09D00 ...COLLAR...COLLAR
-
657435-12900 ...SPACER...SPACER
-
708319-2105A ...NUT...NUT
-
802112-0525A ...SCREW, ADJUSTER...SCREW, ADJUSTER
-
908310-0005A ...NUT...NUT
-
1002112-0516A ...SCREW, CASE...SCREW, CASE
-
1102112-0545A ...SCREW...SCREW
-
1257314-14H00 COVER, LEVERCOVER, LEVER
-
1309407-11401 CLAMPCLAMP
-
1457211-14H00 GRIP, LEFT HANDGRIP, LEFT HAND
