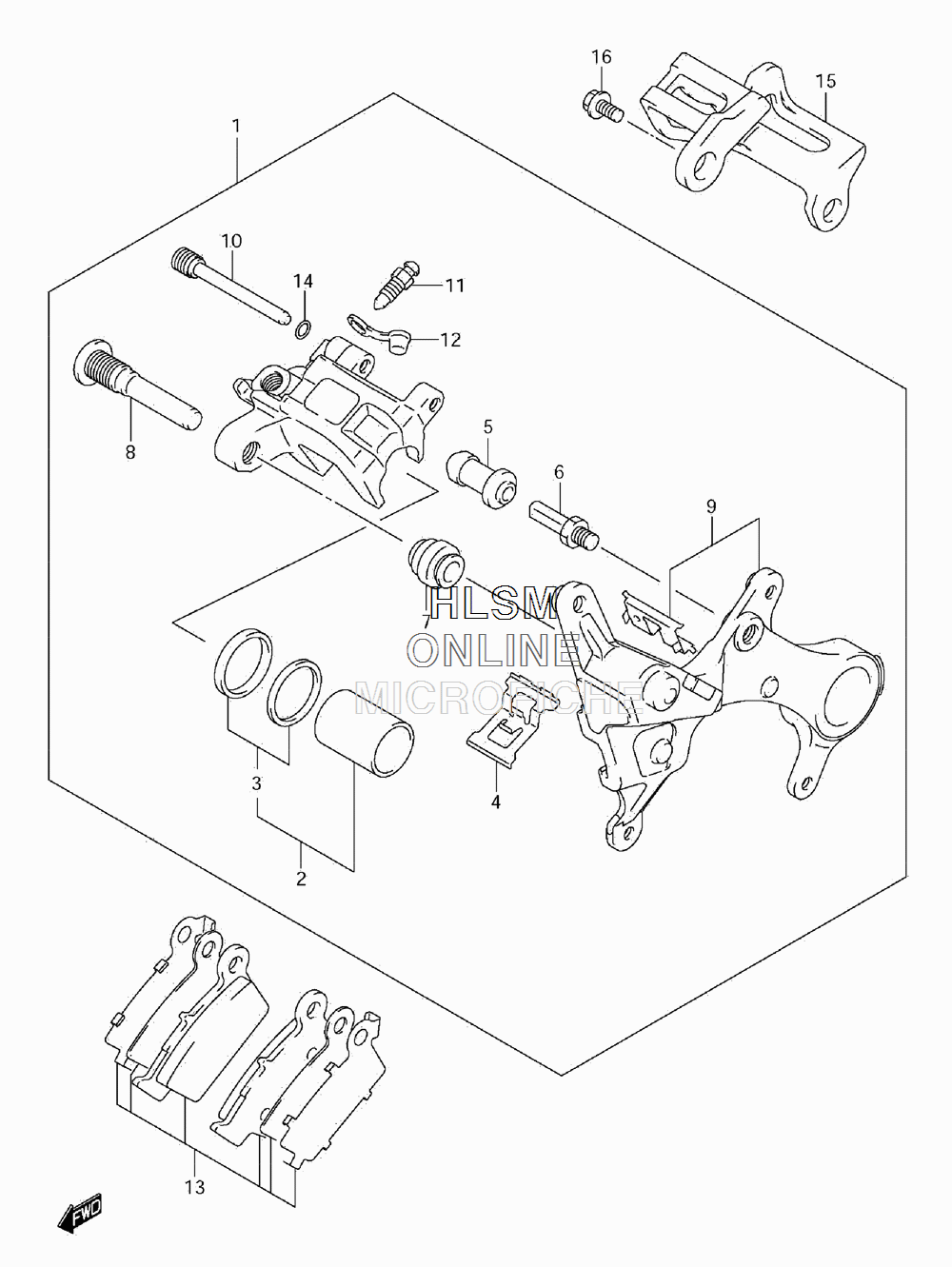

BRAKE - REAR CALIPER для Suzuki RM-Z250L0 - 2010 года выпуска
-
№АртикулНазвание
-
169100-28H00-999 CALIPER ASSY, REAR (INCL. 2-12, 14)CALIPER ASSY, REAR (INCL. 2-12, 14)
-
269100-14820 PISTON SET (INC 3)PISTON SET (INC 3)
-
369100-13810 SEAL SET, PISTONSEAL SET, PISTON
-
459315-36E00 SPRINGSPRING
-
559386-13A00 BOOTBOOT
-
659382-14500 PINPIN
-
759303-14500 BOOTBOOT
-
859305-36E00 PINPIN
-
969350-28H00 BRACKETBRACKET
-
1069345-37F00 PINPIN
-
1159121-01A00 BLEEDERBLEEDER
-
1259122-01A00 CAPCAP
-
1369100-28820 PAD SETPAD SET
-
1459145-37F00 RING, STOPPERRING, STOPPER
-
1569725-37F00 GUARD, REAR CALIPERGUARD, REAR CALIPER
-
1609116-06197 BOLT (6X12)BOLT (6X12)
