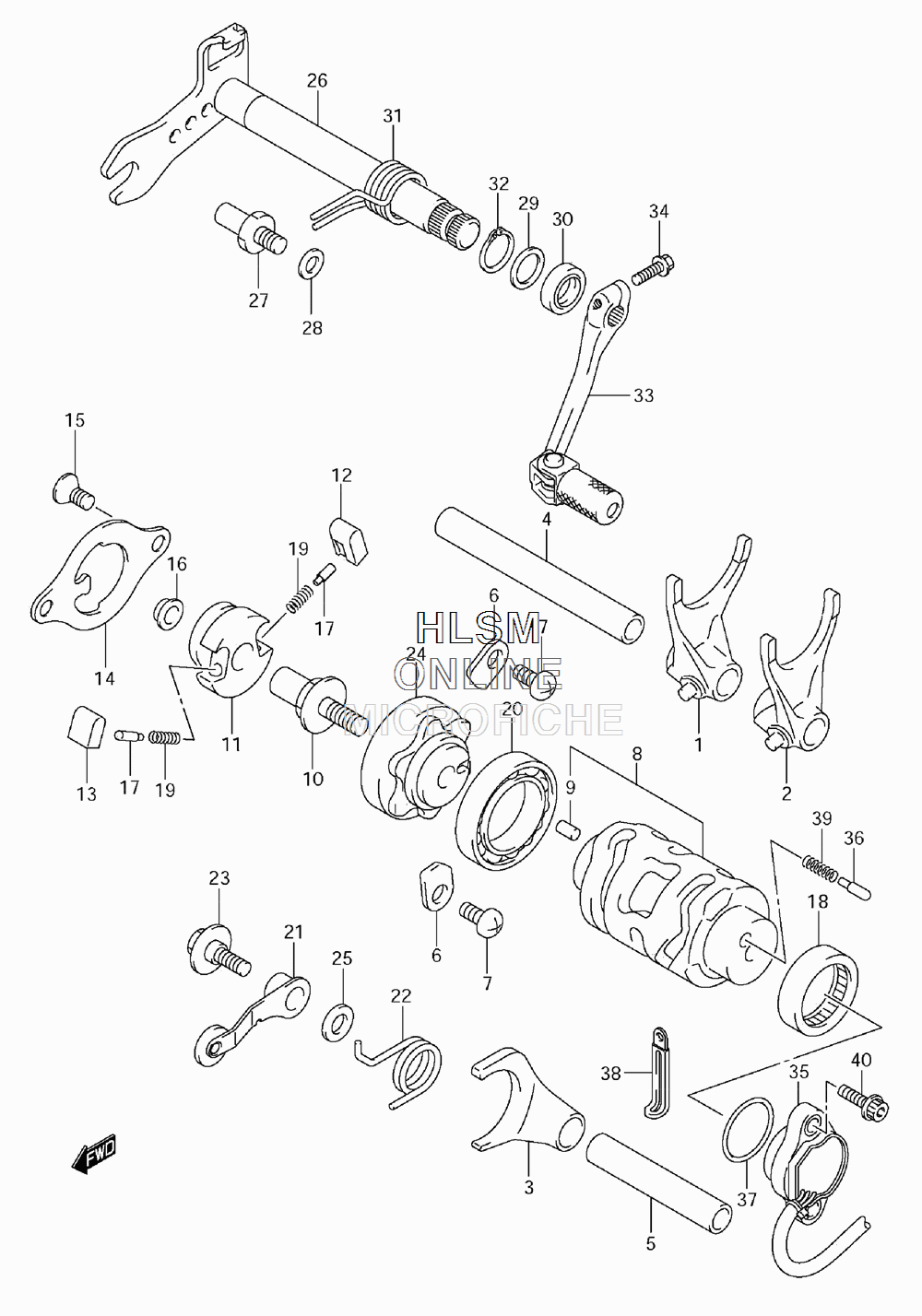

GEAR SHIFTING для Suzuki RM-Z250L0 - 2010 года выпуска

№

Артикул

Название
1

25211-10H10 FORK, GEAR SHIFT NO.1

FORK, GEAR SHIFT NO.1

13 280 ₽
2

25221-10H10 FORK, GEAR SHIFT NO.2

FORK, GEAR SHIFT NO.2

13 280 ₽
3

25231-10H10 FORK, GEAR SHIFT NO.3

FORK, GEAR SHIFT NO.3

13 280 ₽
4

25411-37F20 SHAFT, GEAR SHIFT FORK NO.1

SHAFT, GEAR SHIFT FORK NO.1

3 300 ₽
5

25421-27C01 SHAFT, GEAR SHIFT FORK NO.2

SHAFT, GEAR SHIFT FORK NO.2

2 740 ₽
6

24741-21A00 RETAINER, SHIFT CAM BEARING

RETAINER, SHIFT CAM BEARING

480 ₽
7

09125-06110 SCREW, RTNR (6X12)

SCREW, RTNR (6X12)

350 ₽
8

25310-49H00 CAM, GEAR SHIFT (INC 9)

CAM, GEAR SHIFT (INC 9)

28 370 ₽
9

04221-04089 PIN, SHIFT CAM STOPPER

PIN, SHIFT CAM STOPPER

190 ₽
10

25313-37F00 PIN, GEAR SHIFT CAM DRIVEN

PIN, GEAR SHIFT CAM DRIVEN

2 110 ₽
11

25322-28H00 SHIFTER, GEAR SHIFT

SHIFTER, GEAR SHIFT

9 250 ₽
12

25323-34201 PAWL, GEAR SHIFT NO.1

PAWL, GEAR SHIFT NO.1

1 310 ₽
13

25324-34201 PAWL, GEAR SHIFT NO.2

PAWL, GEAR SHIFT NO.2

1 310 ₽
14

25331-49H00 LIFTER, GEAR SHIFT PAWL

LIFTER, GEAR SHIFT PAWL

3 670 ₽
15

09126-06011 SCREW, SHIFT PAWL LIFTER

SCREW, SHIFT PAWL LIFTER

350 ₽
16

09180-07014 ROLLER, GEAR SHIFT

ROLLER, GEAR SHIFT

720 ₽
17

09209-05023 PIN, SHIFT PAWL CLICK

PIN, SHIFT PAWL CLICK

440 ₽
18

09263-25018 BEARING, GEAR SHIFT CAM, LEFT

BEARING, GEAR SHIFT CAM, LEFT

3 740 ₽
19

09440-04003 SPRING, SHIFT PAWL RETURN

SPRING, SHIFT PAWL RETURN

250 ₽
20

08140-69050 BEARING, GEAR SHIFT CAM, RIGHT

BEARING, GEAR SHIFT CAM, RIGHT

6 230 ₽
21

25350-10H00 STOPPER, GEAR SHIFT CAM

STOPPER, GEAR SHIFT CAM

3 120 ₽
22

25355-49H00 SPRING, GEAR SHIFT CAM

SPRING, GEAR SHIFT CAM

730 ₽
23

25357-29F10 BOLT, STOPPER

BOLT, STOPPER

0 ₽
24

25381-10H00 PLATE, GEAR SHIFT CAM STOPPER

PLATE, GEAR SHIFT CAM STOPPER

8 880 ₽
25

08211-06121 WASHER, GEAR SHIFT CAM STOPPER

WASHER, GEAR SHIFT CAM STOPPER

270 ₽
26

25510-49H00 SHAFT, GEAR SHIFT

SHAFT, GEAR SHIFT

12 900 ₽
27

25671-10H00 STOPPER, GEAR SHIFT ARM

STOPPER, GEAR SHIFT ARM

860 ₽
28

09181-08139 WASHER, STOPPER (8.8X14X1)

WASHER, STOPPER (8.8X14X1)

330 ₽
29

09181-14139 WASHER, GEAR SHIFT SHAFT

WASHER, GEAR SHIFT SHAFT

440 ₽
30

09283-14006 SEAL, SHIFT SHAFT OIL

SEAL, SHIFT SHAFT OIL

1 170 ₽
31

09444-20011 SPRING, SHIFT SHAFT RETURN

SPRING, SHIFT SHAFT RETURN

1 020 ₽
32

08331-3114A CIRCLIP, GEAR SHIFT SHAFT

CIRCLIP, GEAR SHIFT SHAFT

330 ₽
33

25600-10H10 LEVER ASSY, GEAR SHIFT

LEVER ASSY, GEAR SHIFT

18 410 ₽
34

01547-06207 BOLT, GEAR SHIFT LEVER

BOLT, GEAR SHIFT LEVER

350 ₽
35

37730-49H00 BASE ASSY, GEAR SHIFT TERM

BASE ASSY, GEAR SHIFT TERM

17 930 ₽
36

09209-05011 CONTACT, GEAR SHIFT SW

CONTACT, GEAR SHIFT SW

330 ₽
37

09280-26005 O RING (D:2.4,ID:26.2)

O RING (D:2.4,ID:26.2)

400 ₽
38

09404-06429 CLAMP (L:45)

CLAMP (L:45)

310 ₽
39

09440-04010 SPRING, GEAR SHIFT SW

SPRING, GEAR SHIFT SW

250 ₽
40

07120-0516A BOLT, GEAR SHIFT SW

BOLT, GEAR SHIFT SW

380 ₽
