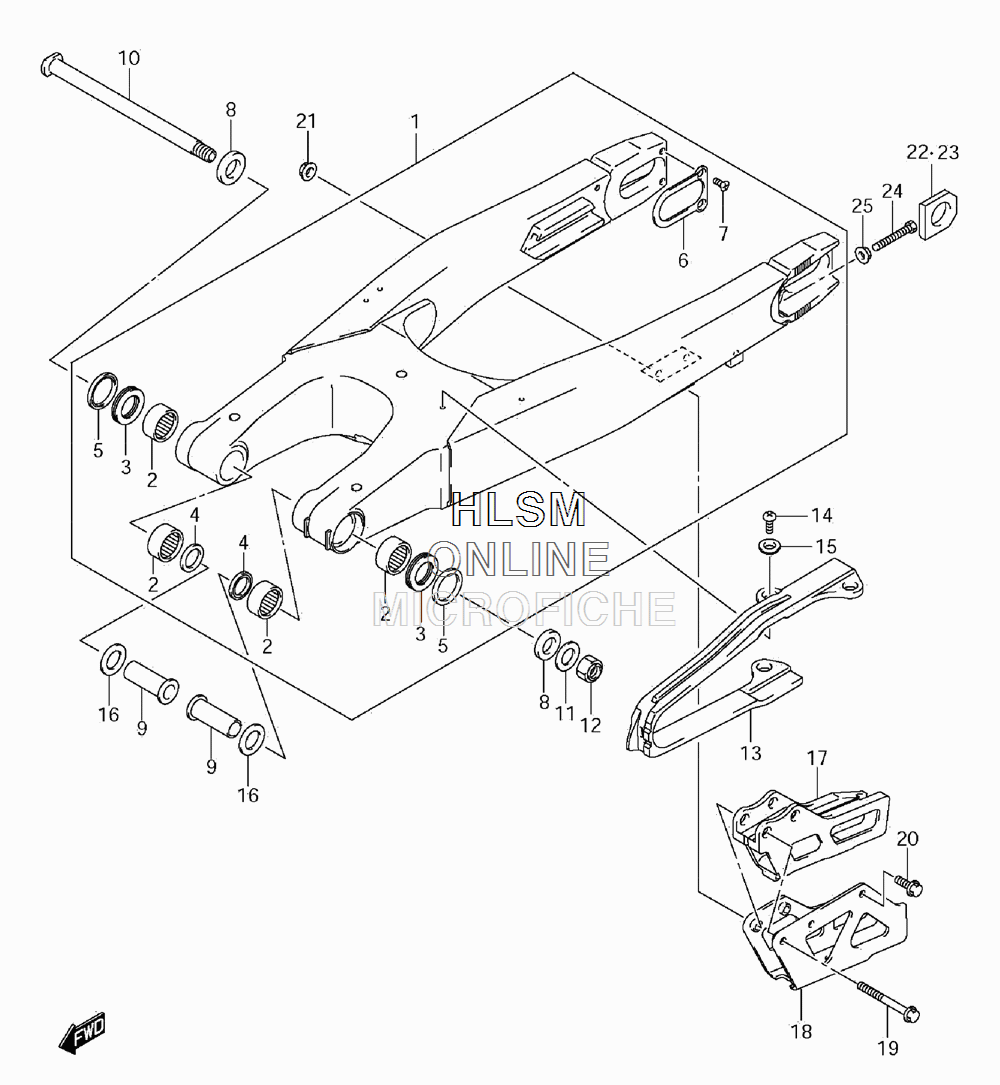

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki RM-Z250L0 - 2010 года выпуска
-
№АртикулНазвание
-
161000-49H00 SWINGING ARM ASSY, REAR (INCL. 2-7)SWINGING ARM ASSY, REAR (INCL. 2-7)
-
209263-22070 BEARING, PIVOT (22X29X30)BEARING, PIVOT (22X29X30)
-
309263-22064 BEARING, OUTER (22X35X2)BEARING, OUTER (22X35X2)
-
409285-22001 SEAL, INNER (22X29X4)SEAL, INNER (22X29X4)
-
561262-36E00 SEAL, OUTER (29.2X37X4)SEAL, OUTER (29.2X37X4)
-
661128-35G00 PLATE, SWINGINGARM, REARPLATE, SWINGINGARM, REAR
-
702122-0410B SCREW (4X10)SCREW (4X10)
-
861251-36E01 SPACER, PIVOT OUTERSPACER, PIVOT OUTER
-
961252-37F01 SPACER, PIVOT INNERSPACER, PIVOT INNER
-
1061211-35G00 SHAFT, PIVOTSHAFT, PIVOT
-
1108322-0116B WASHERWASHER
-
1209159-16007 NUTNUT
-
1361273-35G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1402112-0508B SCREWSCREW
-
1509169-05022 WASHERWASHER
-
1608211-22365 WASHERWASHER
-
1761341-35G10 GUIDE, CHAINGUIDE, CHAIN
-
1861342-37F00 PLATE, GUIDE OUTERPLATE, GUIDE OUTER
-
1909103-06242 BOLT, UPPER (6X45)BOLT, UPPER (6X45)
-
2009103-06233 BOLT, REAR (6X12)BOLT, REAR (6X12)
-
2108316-1006B NUTNUT
-
2261445-28H10 WASHER, CHAIN ADJUSTER RIGHT HANDWASHER, CHAIN ADJUSTER RIGHT HAND
-
2361446-35G00 WASHER, CHAIN ADJUSTER LEFT HANDWASHER, CHAIN ADJUSTER LEFT HAND
-
2409100-08287 BOLT (8X50)BOLT (8X50)
-
2509159-08034 NUTNUT
