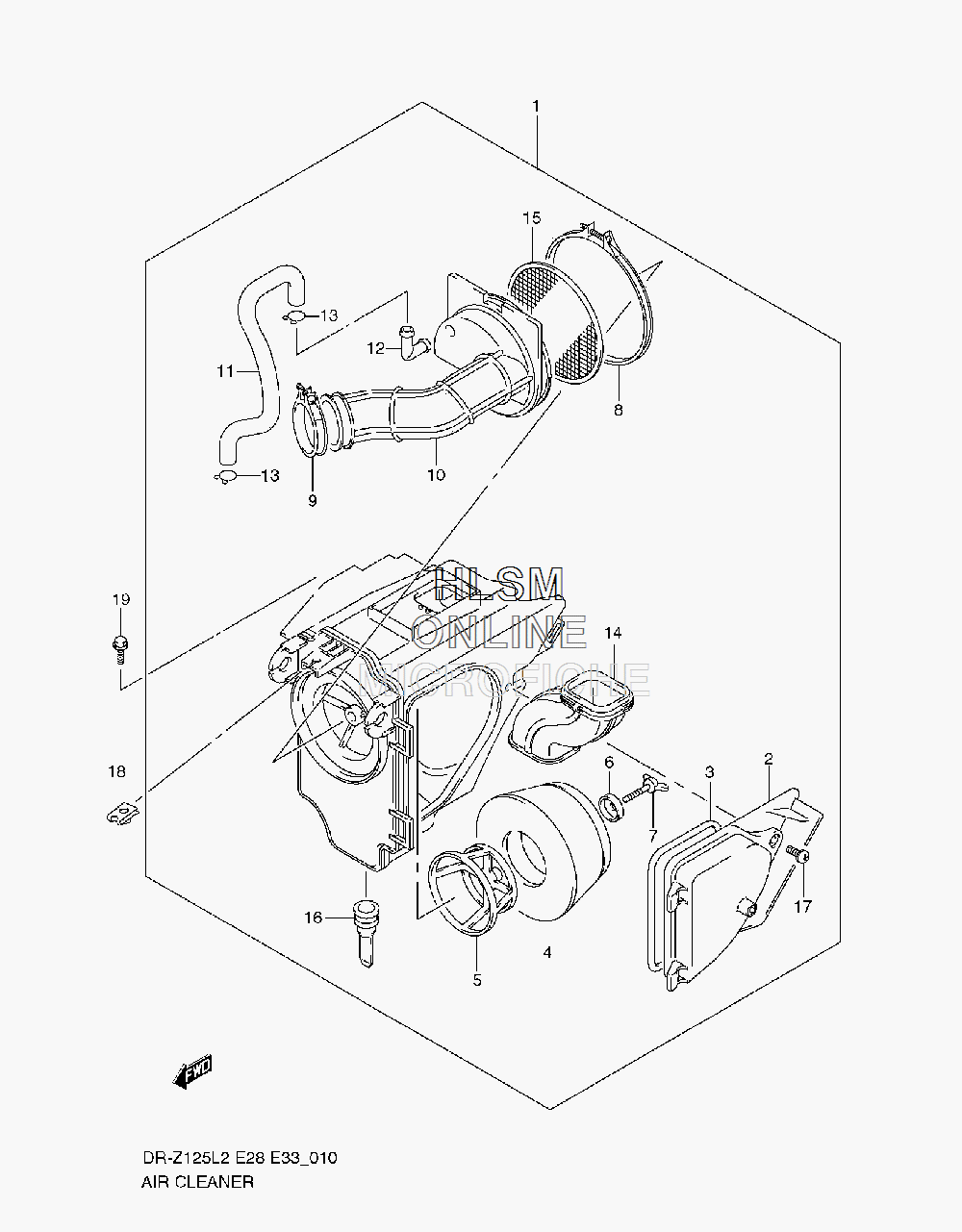

AIR CLEANER для Suzuki DR-Z125L2 - 2012 года выпуска
-
№АртикулНазвание
-
113700-08G01 CLEANER ASSY, AIR (INCL. 2-17)CLEANER ASSY, AIR (INCL. 2-17)
-
213740-08G01 CAP, AIR CLEANERCAP, AIR CLEANER
-
313746-08G00 GASKETGASKET
-
413780-08G00 FILTERFILTER
-
513791-08G00 HOLDER, FILTERHOLDER, FILTER
-
613792-13A01 WASHER, FILTERWASHER, FILTER
-
713831-31G00 BOLT, WINGBOLT, WING
-
813826-14D01 CLAMP (CLEANER SIDE)CLAMP (CLEANER SIDE)
-
909402-48208 CLAMP (CARBURETOR SIDE)CLAMP (CARBURETOR SIDE)
-
1013881-08G00 TUBE, OUTLETTUBE, OUTLET
-
1113853-08G00 TUBE, BREATHERTUBE, BREATHER
-
1213858-14D20 JOINTJOINT
-
1309401-14301 CLIP, BREATHER HOSECLIP, BREATHER HOSE
-
1413891-08G00 TUBE, INLETTUBE, INLET
-
1513810-03G00 TRAP, FLAMETRAP, FLAME
-
1613681-19B00 TUBE, DRAINTUBE, DRAIN
-
1702142-0516B SCREWSCREW
-
1809148-06021 NUT, AIR CLEANERNUT, AIR CLEANER
-
1901550-0612B BOLT, AIR CLEANERBOLT, AIR CLEANER
