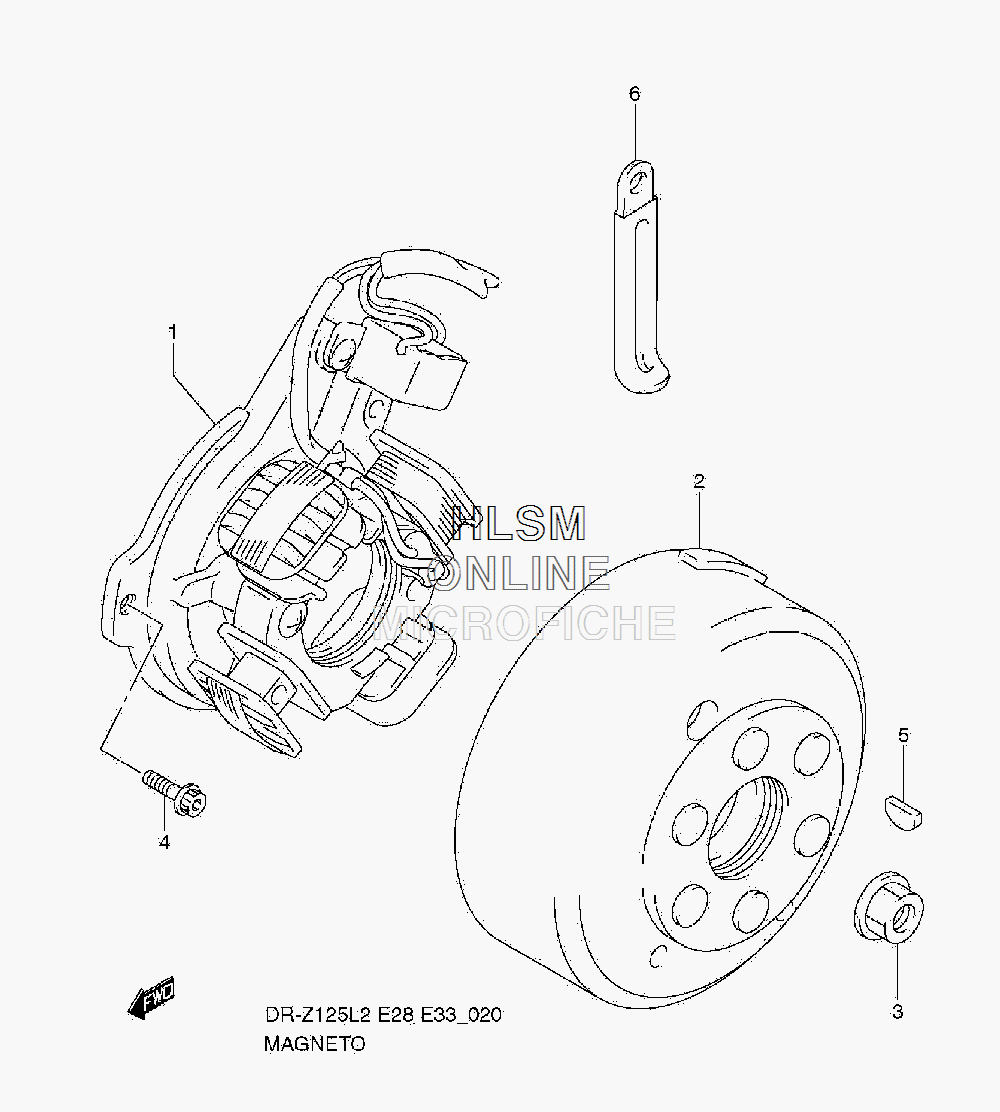

MAGNETO для Suzuki DR-Z125L2 - 2012 года выпуска
-
№АртикулНазвание
-
132101-08G00 STATOR ASSYSTATOR ASSY
-
232102-08G00 ROTOR ASSYROTOR ASSY
-
309159-10110 NUTNUT
-
407120-0512A BOLTBOLT
-
508341-31039 3 MM WOODRUFF KEY3 MM WOODRUFF KEY
-
609404-06433 CLAMP (L:95)CLAMP (L:95)
