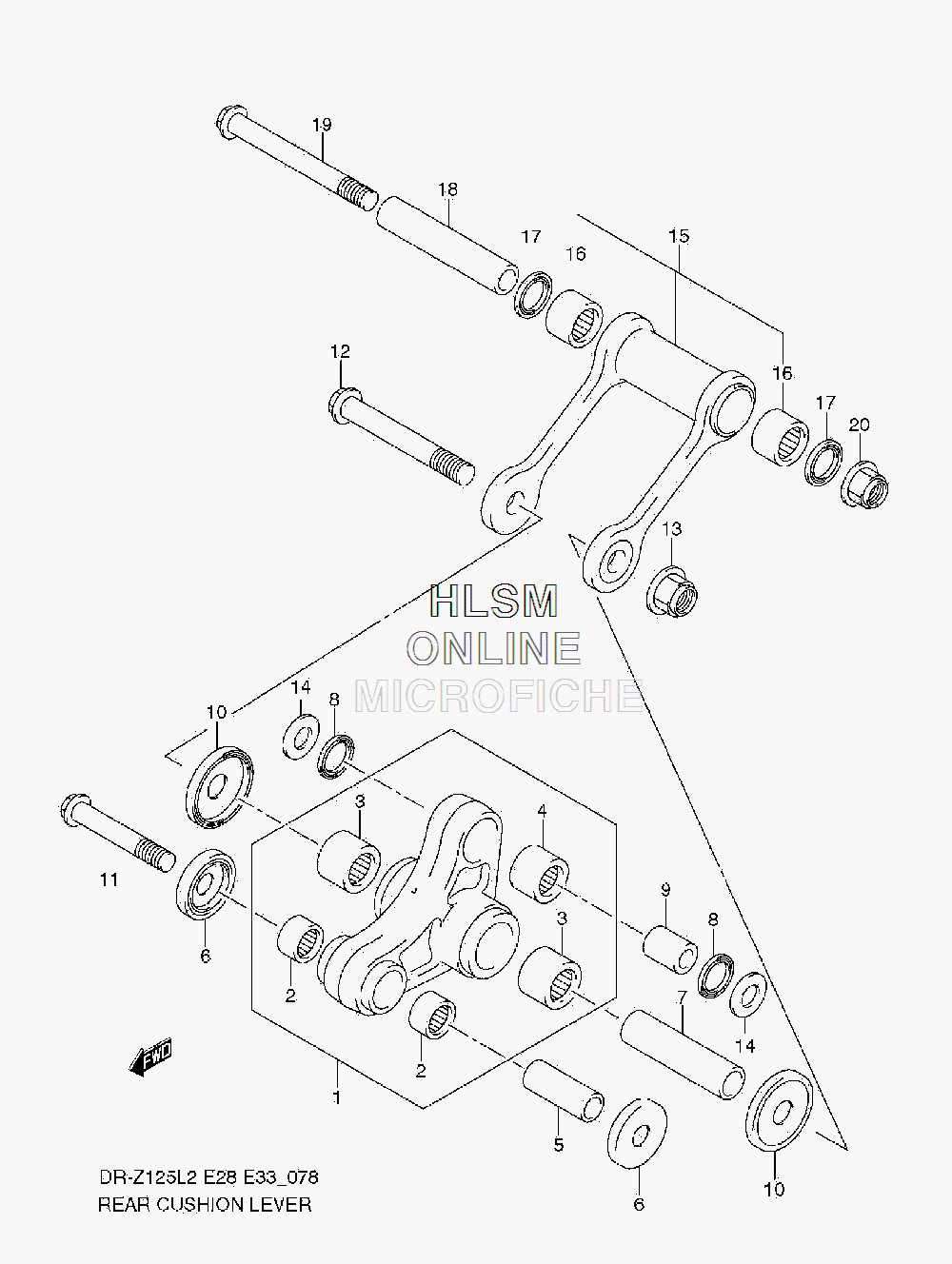

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki DR-Z125L2 - 2012 года выпуска
-
№АртикулНазвание
-
162600-08820 LEVER SET, REAR CUSHION (INCL. 2-4)LEVER SET, REAR CUSHION (INCL. 2-4)
-
209263-14027 BEARING, FRONT (14X20X12)BEARING, FRONT (14X20X12)
-
309263-17027 BEARING, CENTER (17X24X20)BEARING, CENTER (17X24X20)
-
409263-16033 BEARING, REAR (16X22X12)BEARING, REAR (16X22X12)
-
562317-02B40 SPACER, FRONT (10X14X37)SPACER, FRONT (10X14X37)
-
662162-03B00 DUST SEAL, FRONTDUST SEAL, FRONT
-
709180-12121 SPACER, CENTERSPACER, CENTER
-
809284-16005 DUST SEAL, REAR (16X22X2.5)DUST SEAL, REAR (16X22X2.5)
-
962684-36E10 SPACER, REARSPACER, REAR
-
1062162-28E00 SEAL, CENTERSEAL, CENTER
-
1162658-02B50 BOLT, FRONT (10X64)BOLT, FRONT (10X64)
-
1262621-08G00 SHAFT, CENTER (12X87)SHAFT, CENTER (12X87)
-
1308319-3112A NUTNUT
-
1462685-37E00 WASHER, LEVER CUSHION RRWASHER, LEVER CUSHION RR
-
1562600-08830 ROD SET, CUSHION LEVER (INCL. 16)ROD SET, CUSHION LEVER (INCL. 16)
-
1609263-17027 BEARING (17X24X20)BEARING (17X24X20)
-
1709285-17001 SEAL, REAR CUSHION ROD (17X24X3)SEAL, REAR CUSHION ROD (17X24X3)
-
1862646-08G00 SPACER, RODSPACER, ROD
-
1962648-08G00 BOLTBOLT
-
2008319-3112A NUTNUT
