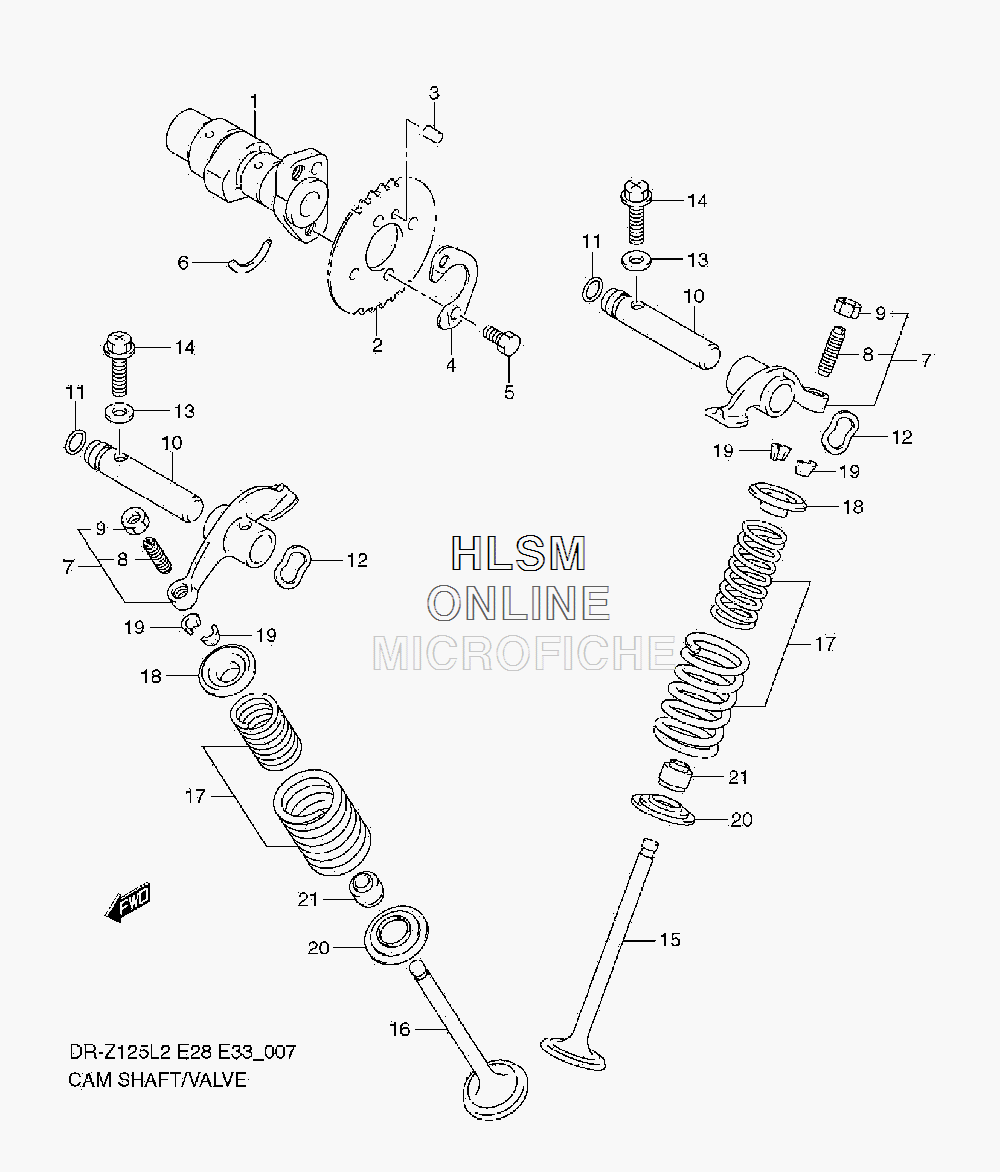

CAMSHAFT W/ VALVES для Suzuki DR-Z125LL2 - 2012 года выпуска
-
№АртикулНазвание
-
112711-08G00 CAM SHAFTCAM SHAFT
-
212741-05201 SPROCKET, CAM SHAFT (NT:32)SPROCKET, CAM SHAFT (NT:32)
-
309261-05005 PIN (5X8)PIN (5X8)
-
412747-05202 WASHER, SPROCKETWASHER, SPROCKET
-
509100-06166 BOLT (6X10.5)BOLT (6X10.5)
-
609390-22002 C RINGC RING
-
712850-25C00 ARM, VALVE ROCKER (INCL. 8, 9)ARM, VALVE ROCKER (INCL. 8, 9)
-
812842-32411 SCREW, ADJUSTINGSCREW, ADJUSTING
-
912843-32400 NUTNUT
-
1012861-05201 SHAFT, VALVE ROCKER ARMSHAFT, VALVE ROCKER ARM
-
1109280-09005 O RING (D:1.9,ID:8.6)O RING (D:1.9,ID:8.6)
-
1209164-12021 WASHERWASHER
-
1309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1402162-0625A SCREWSCREW
-
1512911-04B00 VALVE, INTAKEVALVE, INTAKE
-
1612912-24400 VALVE, EXHAUSTVALVE, EXHAUST
-
1712920-05240 SPRING SET, VALVESPRING SET, VALVE
-
1812931-49201 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
1912932-24400 COTTER, VALVECOTTER, VALVE
-
2012933-49201 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
2109289-05015 OIL SEALOIL SEAL
