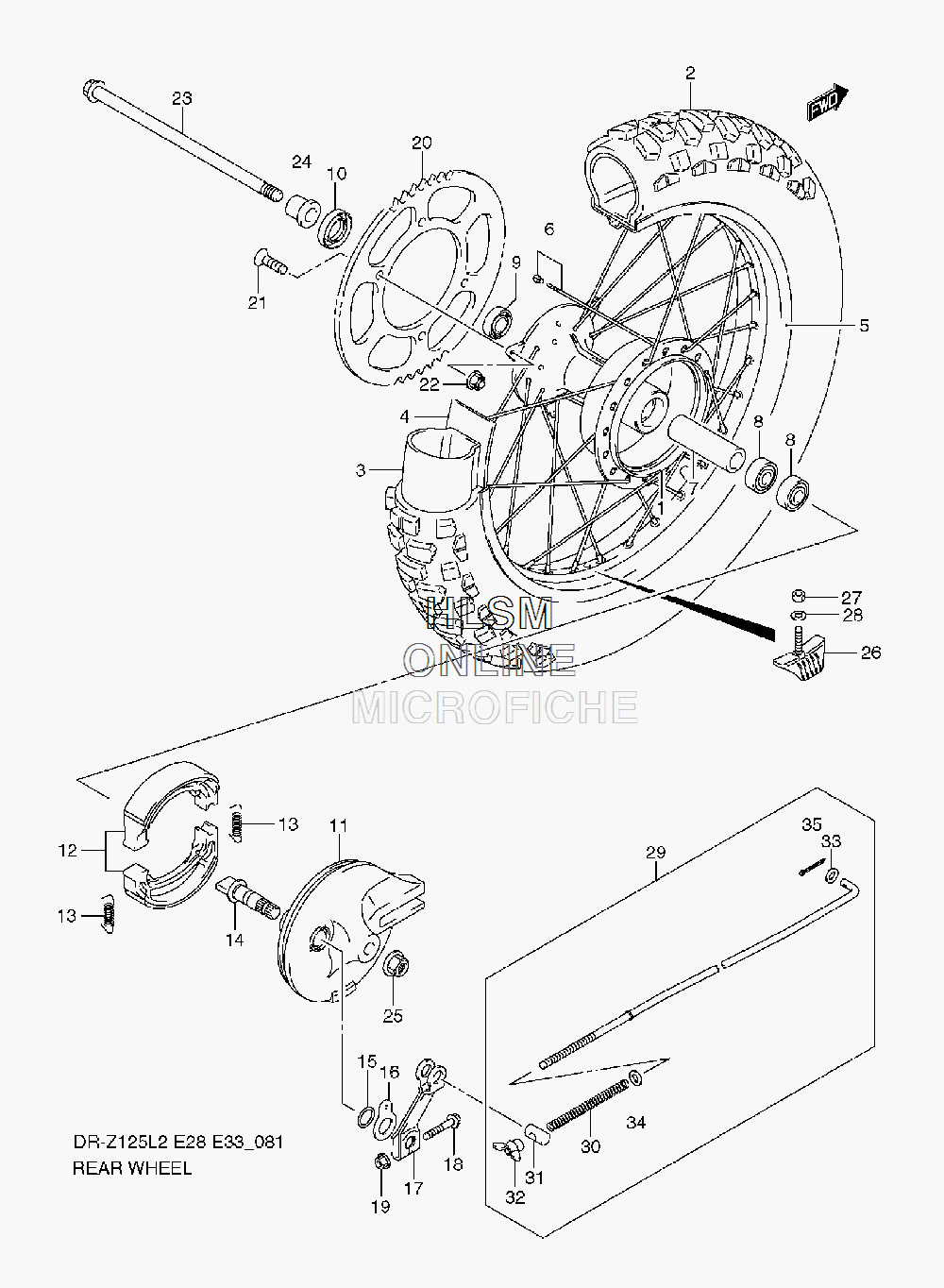

WHEEL - REAR для Suzuki DR-Z125LL2 - 2012 года выпуска
-
№АртикулНазвание
-
164110-08G10 HUB, REAR WHEELHUB, REAR WHEEL
-
265110-08G10 TIRE, REAR, 90/100-16 IRCTIRE, REAR, 90/100-16 IRC
-
365200-08G10 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
465261-08G10 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
565311-08G30 RIM, REAR WHEEL (16X1.60)RIM, REAR WHEEL (16X1.60)
-
665320-08G30 SPOKE ASSY, REAR WHEELSPOKE ASSY, REAR WHEEL
-
709180-12151 SPACER (12.5X19X95.5)SPACER (12.5X19X95.5)
-
808143-62017 BEARING (12X32X10) RIGHT HANDBEARING (12X32X10) RIGHT HAND
-
908123-63017 BEARING (12X37X12) LEFT HANDBEARING (12X37X12) LEFT HAND
-
1009283-20025 SEAL, REAR HUB BEARING (20X37X7)SEAL, REAR HUB BEARING (20X37X7)
-
1164210-08G00 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
1254401-43840 SHOE SET, BRAKESHOE SET, BRAKE
-
1309443-07044 SPRINGSPRING
-
1464441-13G00 CAM, BRAKECAM, BRAKE
-
1509280-14011 O RING (D:2.5,ID:13.8)O RING (D:2.5,ID:13.8)
-
1654492-13G00 PLATE, BRAKE LINING INDICATORPLATE, BRAKE LINING INDICATOR
-
1764451-08G00 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
1801550-0635A BOLTBOLT
-
1908316-1006A NUTNUT
-
2064511-08G10 SPROCKET, REAR (NT:57)SPROCKET, REAR (NT:57)
-
2109120-08010 SCREW (8X30.5)SCREW (8X30.5)
-
2208319-3108A NUTNUT
-
2364711-08G00 AXLE, REARAXLE, REAR
-
2464751-08G00 SPACER, AXLESPACER, AXLE
-
2508319-3112A NUTNUT
-
2665270-08G00 STOPPER, BEADSTOPPER, BEAD
-
2708310-0008A NUT, BEAD STOPPERNUT, BEAD STOPPER
-
2808322-0108A WASHERWASHER
-
2943300-08G10 ROD ASSY, REAR BRAKE (INCL. 30-35)ROD ASSY, REAR BRAKE (INCL. 30-35)
-
3009440-09004 SPRINGSPRING
-
3109209-11002 PINPIN
-
3209144-06005 NUTNUT
-
3308322-0105A WASHER, FRONTWASHER, FRONT
-
3408322-0106A WASHER, REARWASHER, REAR
-
3504111-2020A COTTER PINCOTTER PIN
