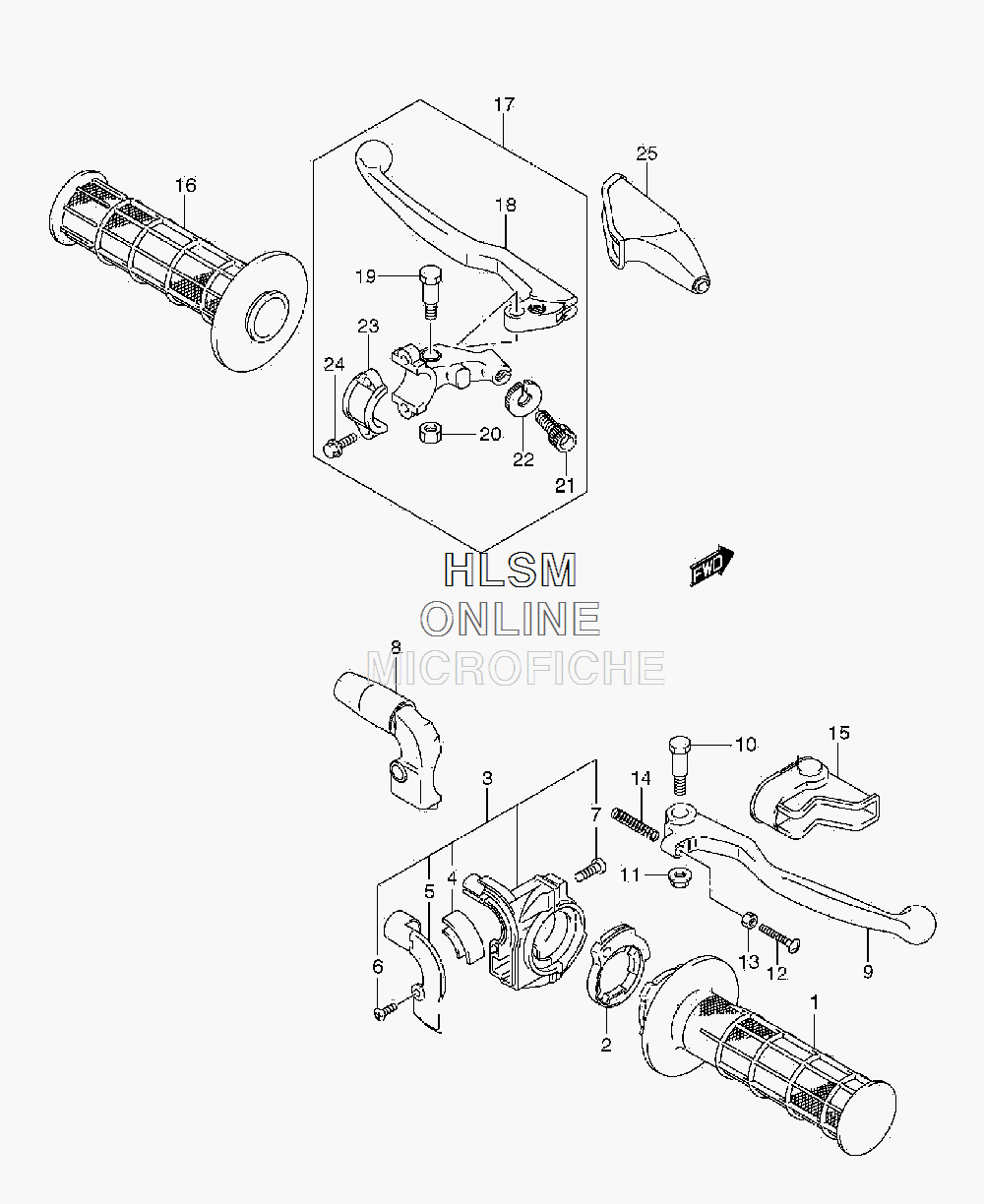

HANDLEBAR - LEVERS (CALIF ONLY) для Suzuki DR-Z125LL2 - 2012 года выпуска
-
№АртикулНазвание
-
157110-27C00 GRIP, THROTTLEGRIP, THROTTLE
-
257114-20430 ROTOR, THROTTLEROTOR, THROTTLE
-
357100-03D10 CASE ASSY, THROTTLE (INCL. 4-7)CASE ASSY, THROTTLE (INCL. 4-7)
-
457122-03D10 GUIDEGUIDE
-
557129-03D10 COVERCOVER
-
602122-0516A SCREWSCREW
-
702132-0406B SCREWSCREW
-
857129-08G00 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
957421-27C00 LEVER, BRAKELEVER, BRAKE
-
1057431-14500 BOLTBOLT
-
1108316-1006A NUTNUT
-
1257431-14511 SCREWSCREW
-
1308310-0005A NUTNUT
-
1457318-14502 SPRINGSPRING
-
1557341-14501 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
1657211-27C00 GRIP, LEFT HANDGRIP, LEFT HAND
-
1757500-14320 LEVER ASSY, CLUTCH (INCL. 18-24)LEVER ASSY, CLUTCH (INCL. 18-24)
-
1857621-13E00 LEVER, CLUTCHLEVER, CLUTCH
-
1957431-21D11 BOLTBOLT
-
2008319-2106A NUTNUT
-
2157441-29F00 ADJUSTER, CABLEADJUSTER, CABLE
-
2257442-45C00 NUTNUT
-
2357512-28C00 BRACKETBRACKET
-
2457513-29F10 BOLTBOLT
-
2557341-40002 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
