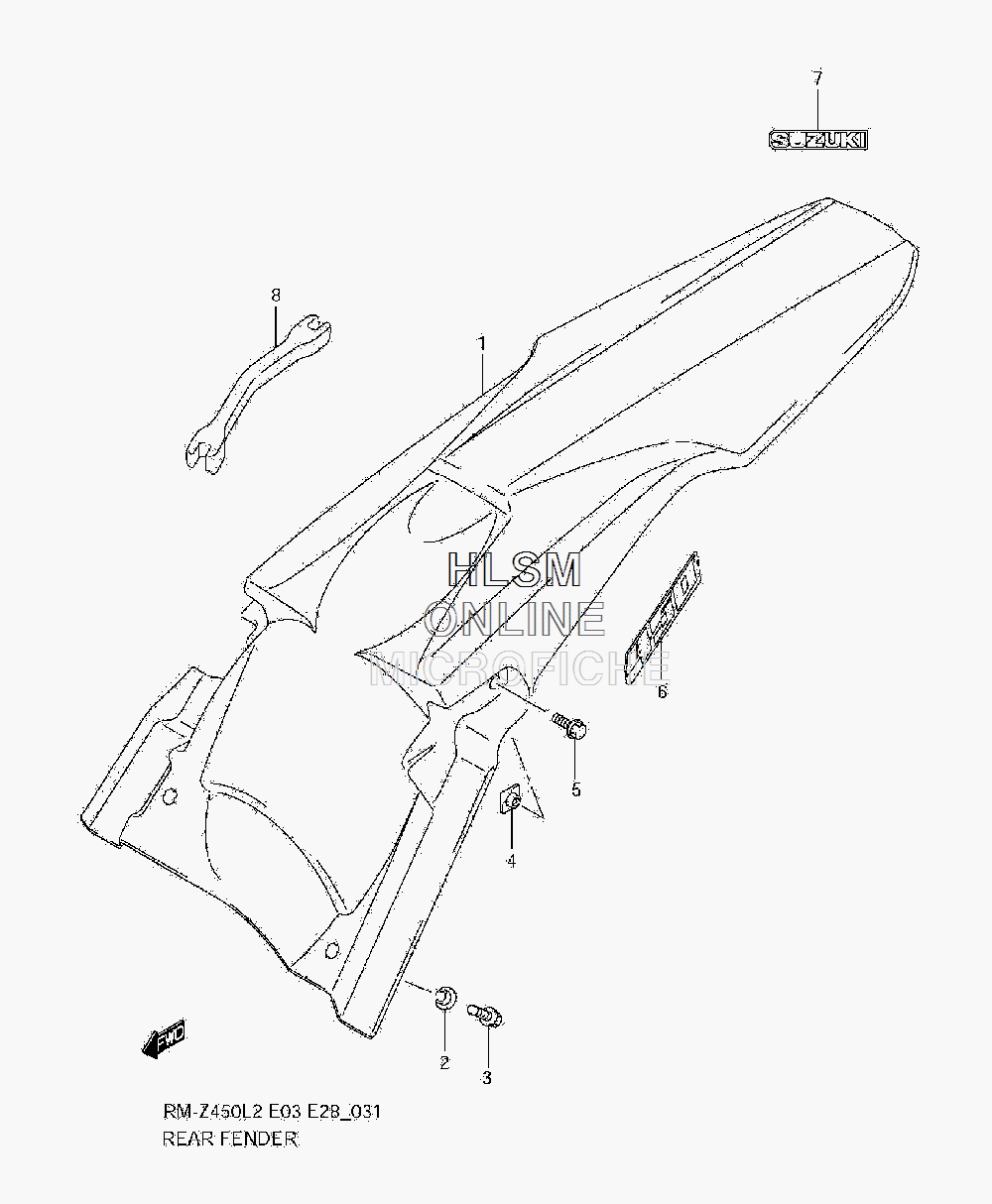

FENDER - REAR для Suzuki RM-Z450L2 - 2012 года выпуска
-
№АртикулНазвание
-
163111-28H01-YU1 FENDER, REAR (YU1 - YELLOW)FENDER, REAR (YU1 - YELLOW)
-
263191-28H00 WASHER, FRONTWASHER, FRONT
-
301547-0620A BOLTBOLT
-
463131-02J00 NUTNUT
-
501547-0616A BOLTBOLT
-
668175-28H00-GY8 EMBLEM, ''450''EMBLEM, ''450''
-
768171-28H00-019 EMBLEM, ''SUZUKI'' (019 - BLACK)EMBLEM, ''SUZUKI'' (019 - BLACK)
-
809813-00134 SPANNER, OPEN (6.4X6.8)SPANNER, OPEN (6.4X6.8)
