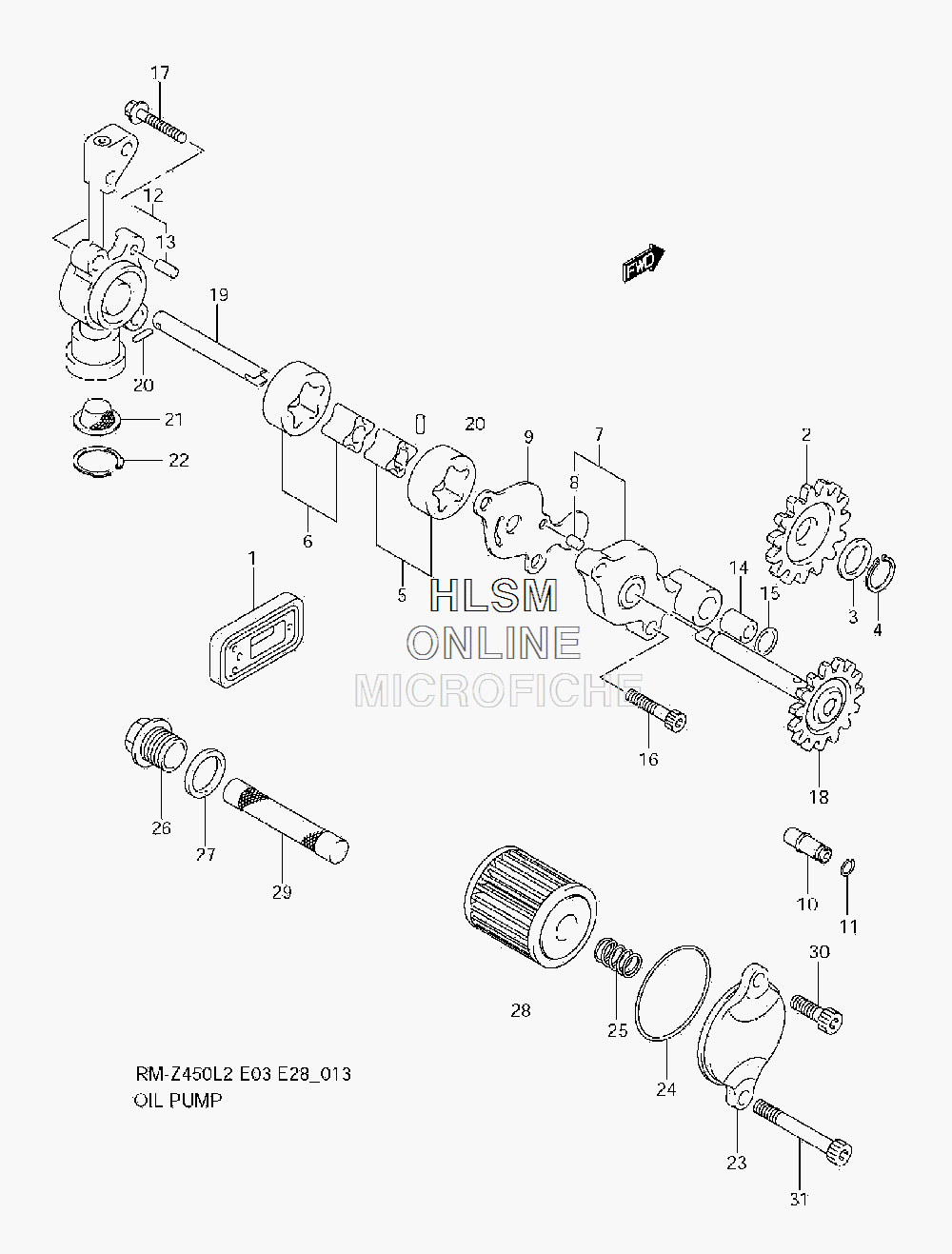

OIL PUMP для Suzuki RM-Z450L2 - 2012 года выпуска
-
№АртикулНазвание
-
113150-28H00 VALVE ASSY, OIL REEDVALVE ASSY, OIL REED
-
216321-28H00 GEAR, OIL PUMP IDLEGEAR, OIL PUMP IDLE
-
309181-12130 SHIM (12X18X0.5)SHIM (12X18X0.5)
-
408331-3112A CIRCLIPCIRCLIP
-
516410-35G00 ROTOR SET, OIL PUMP NO.1ROTOR SET, OIL PUMP NO.1
-
616410-45G00 ROTOR SET, OIL PUMP NO.2ROTOR SET, OIL PUMP NO.2
-
716430-28H00 COVER, OIL PUMP NO.1 (INCL. 8)COVER, OIL PUMP NO.1 (INCL. 8)
-
804221-04089 PIN 4X8PIN 4X8
-
916432-35G10 PLATE, OIL PUMP NO.1PLATE, OIL PUMP NO.1
-
1016440-28H00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1109280-05007 O RING (D:1.2,ID:4.7)O RING (D:1.2,ID:4.7)
-
1216450-28H01 COVER, OIL PUMP NO.2COVER, OIL PUMP NO.2
-
1304221-04089 PIN 4X8PIN 4X8
-
1404211-09149 PIN 9X14PIN 9X14
-
1509280-09005 O RING (V)O RING (V)
-
1607130-0520B BOLTBOLT
-
1709103-06250 BOLT (6X25)BOLT (6X25)
-
1816440-35G10 SHAFT, OIL PUMP DRIVEN GEARSHAFT, OIL PUMP DRIVEN GEAR
-
1916443-28H00 SHAFT, OIL PUMP NO.2SHAFT, OIL PUMP NO.2
-
2009261-02008 PIN, ROTOR DRIVEPIN, ROTOR DRIVE
-
2116530-28H00 STRAINER, OIL PUMP NO.2STRAINER, OIL PUMP NO.2
-
2209381-19003 CIRCLIPCIRCLIP
-
2316315-35G30 CAP, ENG OIL FILTER OUTCAP, ENG OIL FILTER OUT
-
2409280-39001 O RING (D:2,ID:38.5)O RING (D:2,ID:38.5)
-
2509440-10038 SPRING, CLUTCHSPRING, CLUTCH
-
2616316-10H01 CAP, ENG OIL STRAINERCAP, ENG OIL STRAINER
-
2709168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2816510-35G00 FILTER, ENG OILFILTER, ENG OIL
-
2916520-10H00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
3001547-0616A BOLTBOLT
-
3101547-0640A BOLTBOLT
