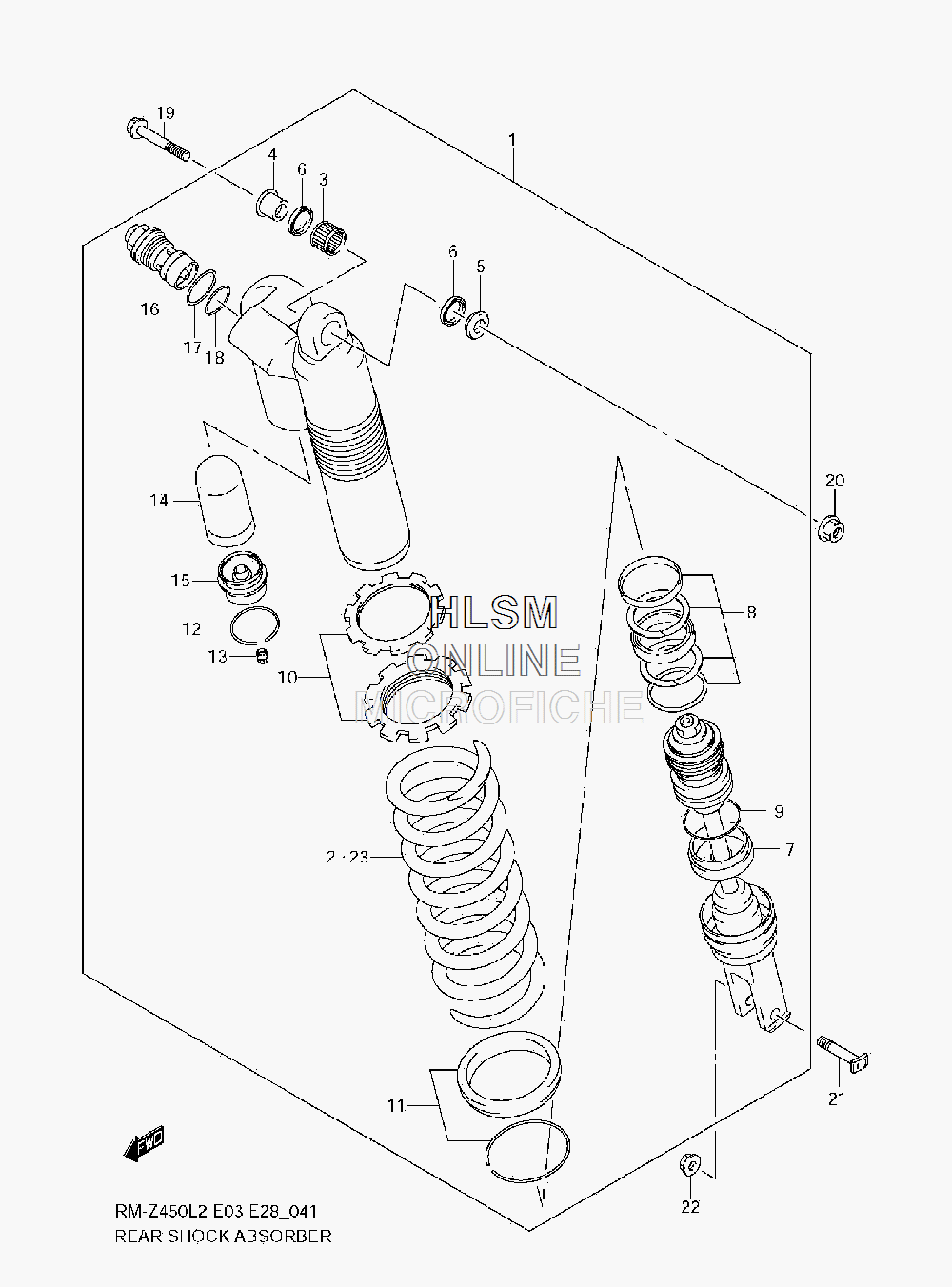

SUSPENSION - SHOCKS REAR для Suzuki RM-Z450L2 - 2012 года выпуска
-
№АртикулНазвание
-
162100-28H50-YKS ABSORBER ASSY, REAR SHOCK (YKS - RED) (INCL. 2-18)ABSORBER ASSY, REAR SHOCK (YKS - RED) (INCL. 2-18)
-
262211-28H00 SPRING (K=5.8)SPRING (K=5.8)
-
309263-16033 BEARING (16X22X12)BEARING (16X22X12)
-
462684-36F00 SPACER, BEARING RIGHT HANDSPACER, BEARING RIGHT HAND
-
562685-36F00 SPACER, BEARING LEFT HANDSPACER, BEARING LEFT HAND
-
609284-16005 SEAL (16X22X2.5)SEAL (16X22X2.5)
-
762120-28H00 ROD, PISTONROD, PISTON
-
862150-28H30 O RING SETO RING SET
-
962279-36E80 RING, STOPPERRING, STOPPER
-
1062190-36F00 ADJUSTER SETADJUSTER SET
-
1162220-36F00 SPRING SEAT SETSPRING SEAT SET
-
1262278-36E00 RING, STOPPERRING, STOPPER
-
1352194-46686 CAPCAP
-
1462273-36F00 BLADDERBLADDER
-
1562275-28H30 CAP, CHAMBERCAP, CHAMBER
-
1662130-28H30 BOLT, PLUGBOLT, PLUG
-
1762131-28E00 O RINGO RING
-
1851174-36EB0 O RINGO RING
-
1962311-28H00 BOLT, REAR SHOCK ABS UPPERBOLT, REAR SHOCK ABS UPPER
-
2009159-10122 NUTNUT
-
2162221-37F30 BOLT, REAR SHOCK ABS LOWERBOLT, REAR SHOCK ABS LOWER
-
2209159-10067 NUTNUT
-
2362211-10H10 SPRING (SOFT K=5.2) (OPT)SPRING (SOFT K=5.2) (OPT)
-
2362211-10H00 SPRING (SOFT K=5.4) (OPT)SPRING (SOFT K=5.4) (OPT)
-
2362211-37FM0 SPRING (SOFT K=5.6) (OPT)SPRING (SOFT K=5.6) (OPT)
-
2362211-35G40 SPRING (HARD K=5.9) (OPT)SPRING (HARD K=5.9) (OPT)
-
2362211-28H30 SPRING (HARD K=6.0) (OPT)SPRING (HARD K=6.0) (OPT)
