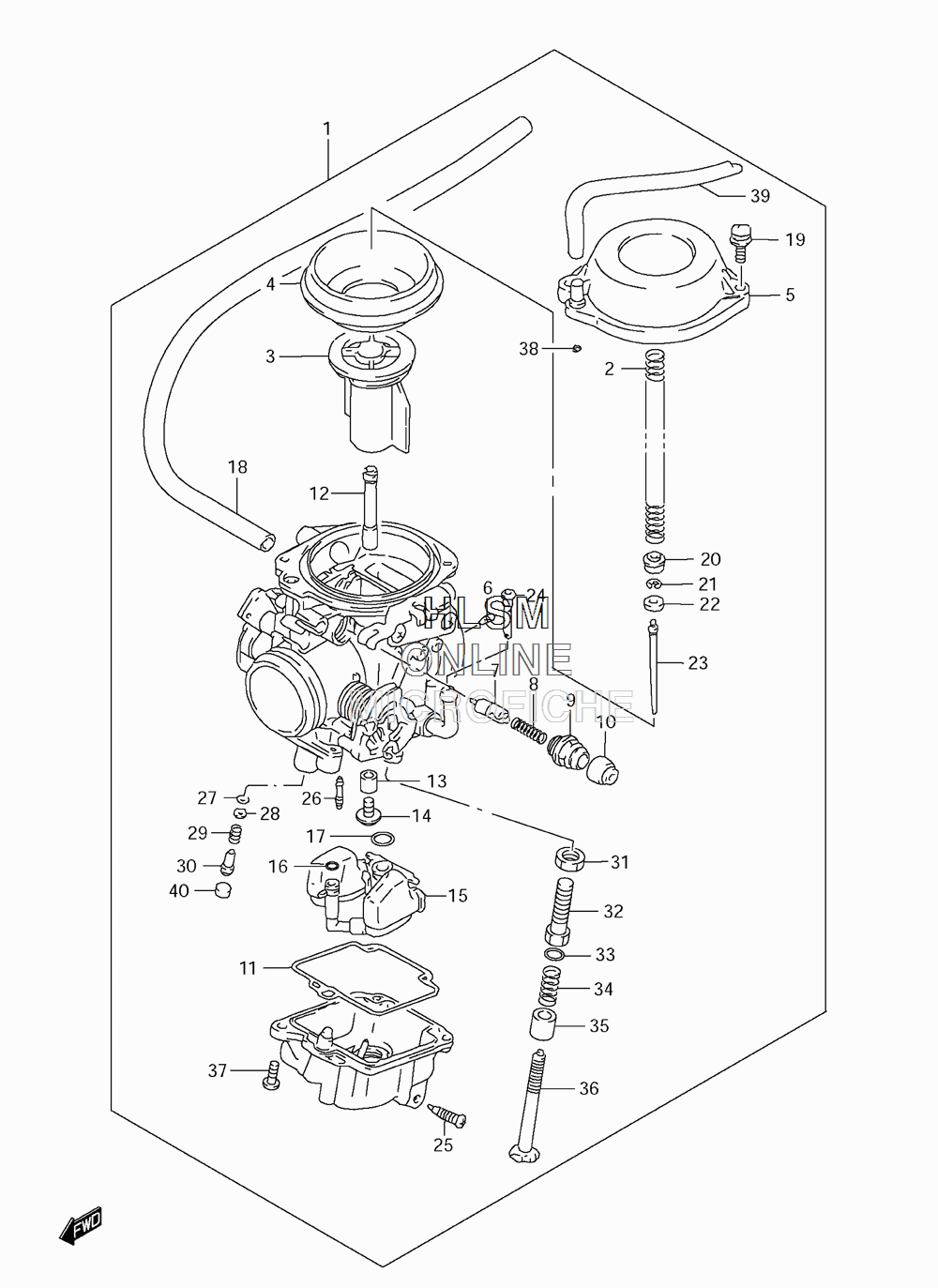

CARBURETOR ASSY. для Suzuki DR-650SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
113200-32E12 CARBURETOR ASSYCARBURETOR ASSY
-
213417-17D00 ...SPRING...SPRING
-
313501-32E00 ...VALVE, PISTON...VALVE, PISTON
-
413507-07D01 ...DIAPHRAGM...DIAPHRAGM
-
513502-41C00 ...COVER, DIAPHRAGM...COVER, DIAPHRAGM
-
609493-20007 ...JET, PILOT AIR (1.0)...JET, PILOT AIR (1.0)
-
713411-12D00 ...PLUNGER ASSY...PLUNGER ASSY
-
813417-22010 ...SPRING...SPRING
-
913418-43410 ...HOLDER, GUIDE...HOLDER, GUIDE
-
1013681-04010 ...CAP...CAP
-
1113258-44B00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
1209494-00884 ...JET, NEEDLE (Y-5M)...JET, NEEDLE (Y-5M)
-
1313331-07D00 ...RING...RING
-
1409491-28010 ...JET, MAIN (140)...JET, MAIN (140)
-
1513250-12EH0 ...FLOAT/NEEDLE VALVE ASSY...FLOAT/NEEDLE VALVE ASSY
-
1613374-46710 ...O RING...O RING
-
1713374-35C00 ...O RING...O RING
-
1813683-32E00 ...HOSE (6.5X10.5X275)...HOSE (6.5X10.5X275)
-
1902112-7516B ...SCREW...SCREW
-
2013331-12D00 ...RING...RING
-
2113394-31210 ...E RING...E RING
-
2213387-07D00 ...RING...RING
-
2313383-32E10 ...NEEDLE, JET (6F23-1)...NEEDLE, JET (6F23-1)
-
2413236-12C00 ...FILTER...FILTER
-
2513247-13A00 ...SCREW, DRAIN...SCREW, DRAIN
-
2609492-42010 ...JET, PILOT (42.5)...JET, PILOT (42.5)
-
2713295-29900 ...O RING...O RING
-
2813291-29900 ...WASHER...WASHER
-
2913268-47070 ...SPRING...SPRING
-
3013279-47070 ...SCREW, PILOT (1,1/2)...SCREW, PILOT (1,1/2)
-
3113607-37010 ...NUT...NUT
-
3213267-31D00 ...ADJUSTER...ADJUSTER
-
3313615-43010 ...WASHER...WASHER
-
3413271-33C00 ...SPRING...SPRING
-
3513432-95210 ...RING...RING
-
3613267-31D10 ...ADJUSTER...ADJUSTER
-
3713601-05148-XC0 ...SCREW...SCREW
-
3813278-02340 ...O RING...O RING
-
3909355-45855-600 ...HOSE (4.5X8.5X600)...HOSE (4.5X8.5X600)
-
4013281-05A00 ...PLUG...PLUG
