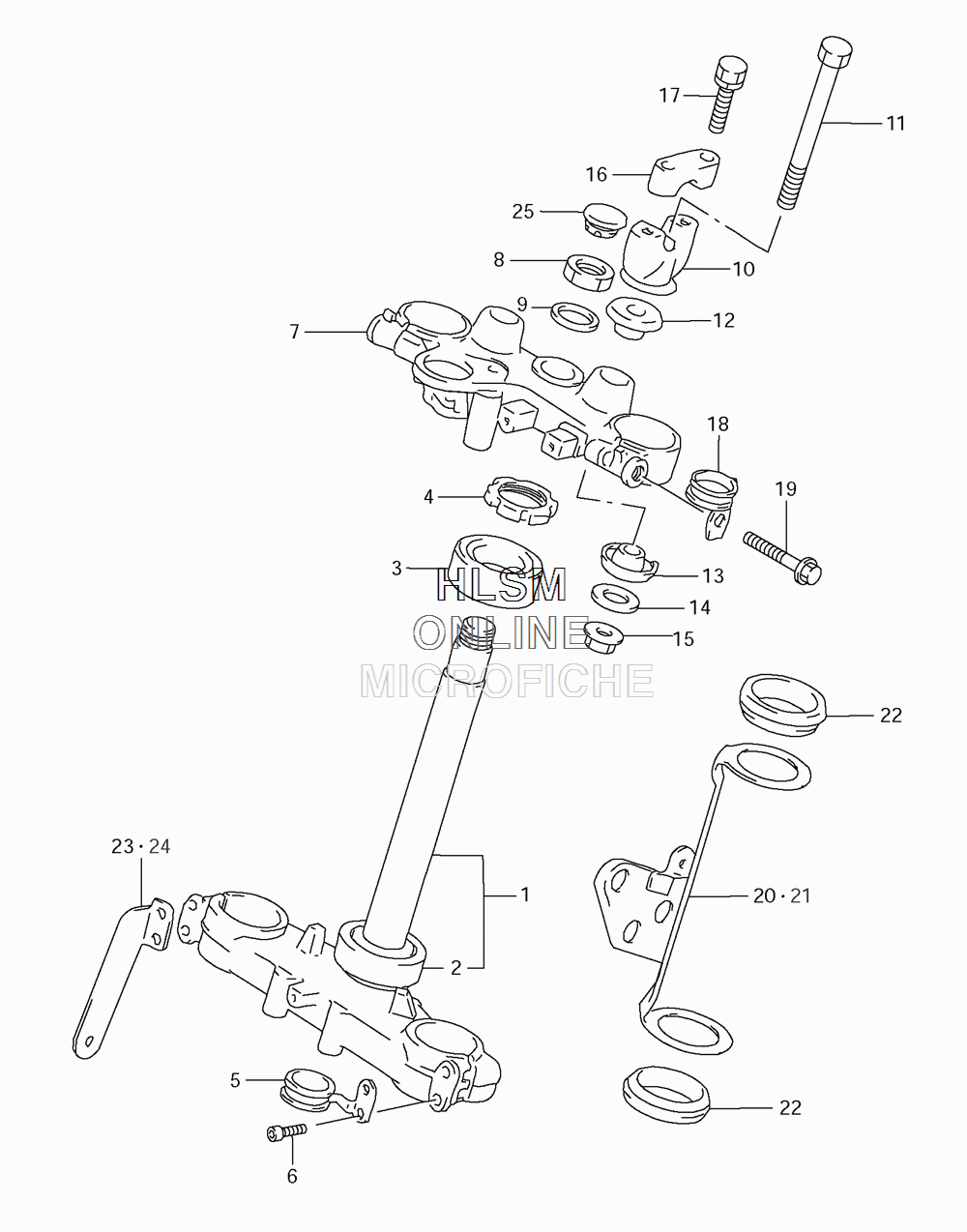

STEERING STEM для Suzuki DR-650SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
151410-32E00 STEM, STEERINGSTEM, STEERING
-
209265-30014 ...BEARING (30X52X16)...BEARING (30X52X16)
-
309265-30014 BEARING (30X52X16)BEARING (30X52X16)
-
451631-28E00 NUT, STEERING STEMNUT, STEERING STEM
-
551453-32E10 CLAMP, LOWERCLAMP, LOWER
-
607130-08407 BOLTBOLT
-
751311-32E00 HEAD, STEERING STEMHEAD, STEERING STEM
-
851353-32E00 NUTNUT
-
951356-27C00 WASHERWASHER
-
1056221-14330-291 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1156321-28C00 BOLTBOLT
-
1256241-14A00 RUBBER, UPPERRUBBER, UPPER
-
1356242-14200 RUBBER, LOWERRUBBER, LOWER
-
1409160-10035 WASHER (10.5X28X2.3)WASHER (10.5X28X2.3)
-
1508319-31107 NUTNUT
-
1656211-29320-291 HOLDER, HANDLE UPPER (BLACK)HOLDER, HANDLE UPPER (BLACK)
-
1701570-0835A BOLTBOLT
-
1851288-32E00 CLAMP, UPPERCLAMP, UPPER
-
1901550-1040B BOLTBOLT
-
2051530-32E00 COVER, FORK RIGHTCOVER, FORK RIGHT
-
2151540-32E00 COVER, FORK LEFTCOVER, FORK LEFT
-
2251553-15D00 RUBBER, DAMPERRUBBER, DAMPER
-
2335956-44B01 BRACKET, SIDE RIGHTBRACKET, SIDE RIGHT
-
2435957-44B01 BRACKET, SIDE LEFTBRACKET, SIDE LEFT
-
2509250-12006 CAPCAP
