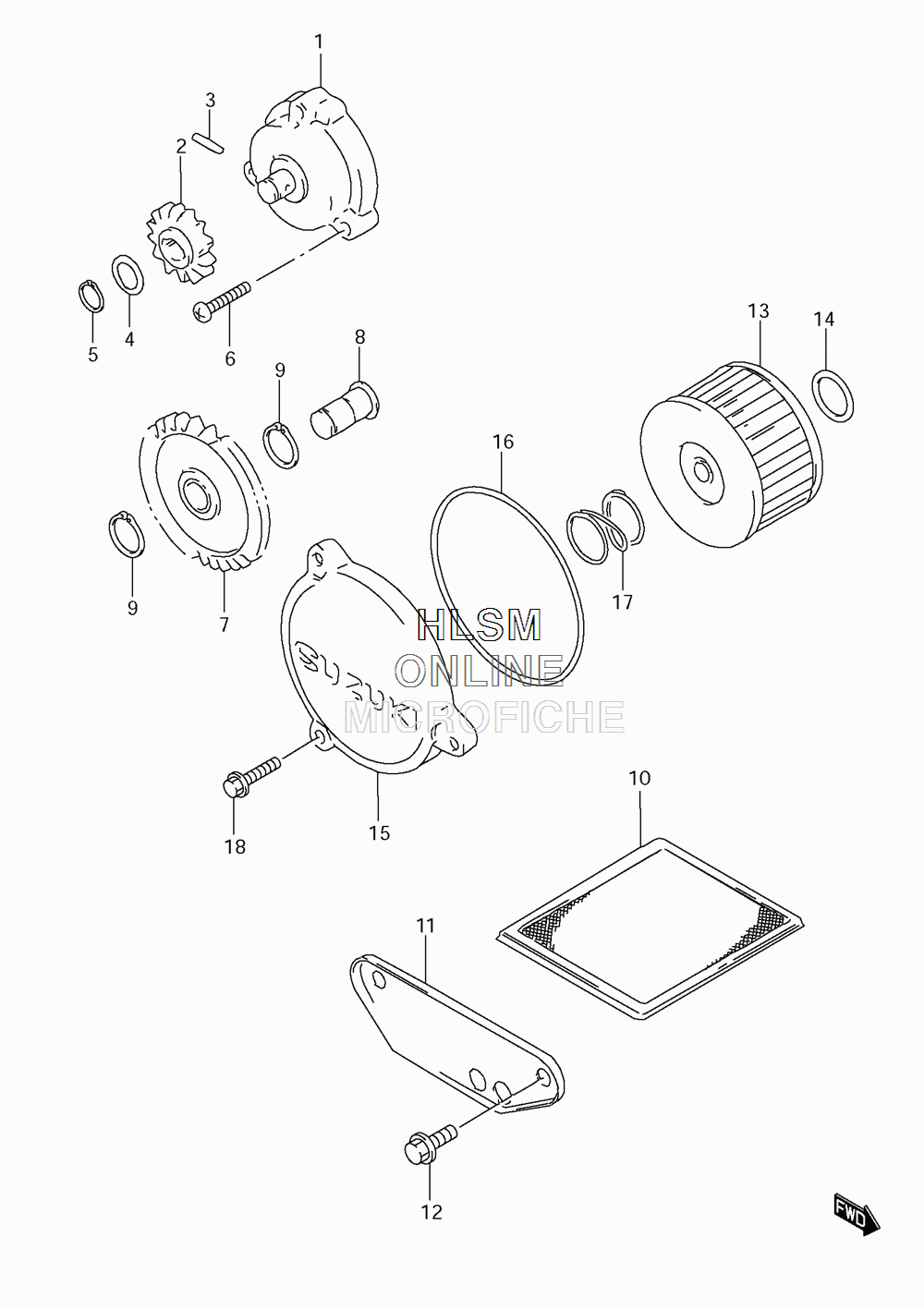

OIL PUMP для Suzuki DR-650SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
116400-32E00 PUMP, ENGINE OILPUMP, ENGINE OIL
-
216331-32E00 GEAR, DRIVEN (NT:15)GEAR, DRIVEN (NT:15)
-
309261-04009 PIN (4X15.8)PIN (4X15.8)
-
409181-10186 SHIM (10X20X0.5)SHIM (10X20X0.5)
-
508331-31109 CIRCLIPCIRCLIP
-
602112-0625B SCREWSCREW
-
716321-32E00 GEAR, OIL PUMP DRIVE (NT:30)GEAR, OIL PUMP DRIVE (NT:30)
-
816322-32E01 SHAFTSHAFT
-
908331-3112A CIRCLIPCIRCLIP
-
1016520-32E00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
1116523-32E00 CAPCAP
-
1209103-06285 BOLT (6X12)BOLT (6X12)
-
1316510-37450 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1409280-15007 O RING (D:2.4,ID:15.8)O RING (D:2.4,ID:15.8)
-
1516512-14D00 CAP, OIL FILTERCAP, OIL FILTER
-
1609280-72001 O RING (D:2.4,ID:73)O RING (D:2.4,ID:73)
-
1709440-21006 SPRINGSPRING
-
1801547-06167 BOLTBOLT
