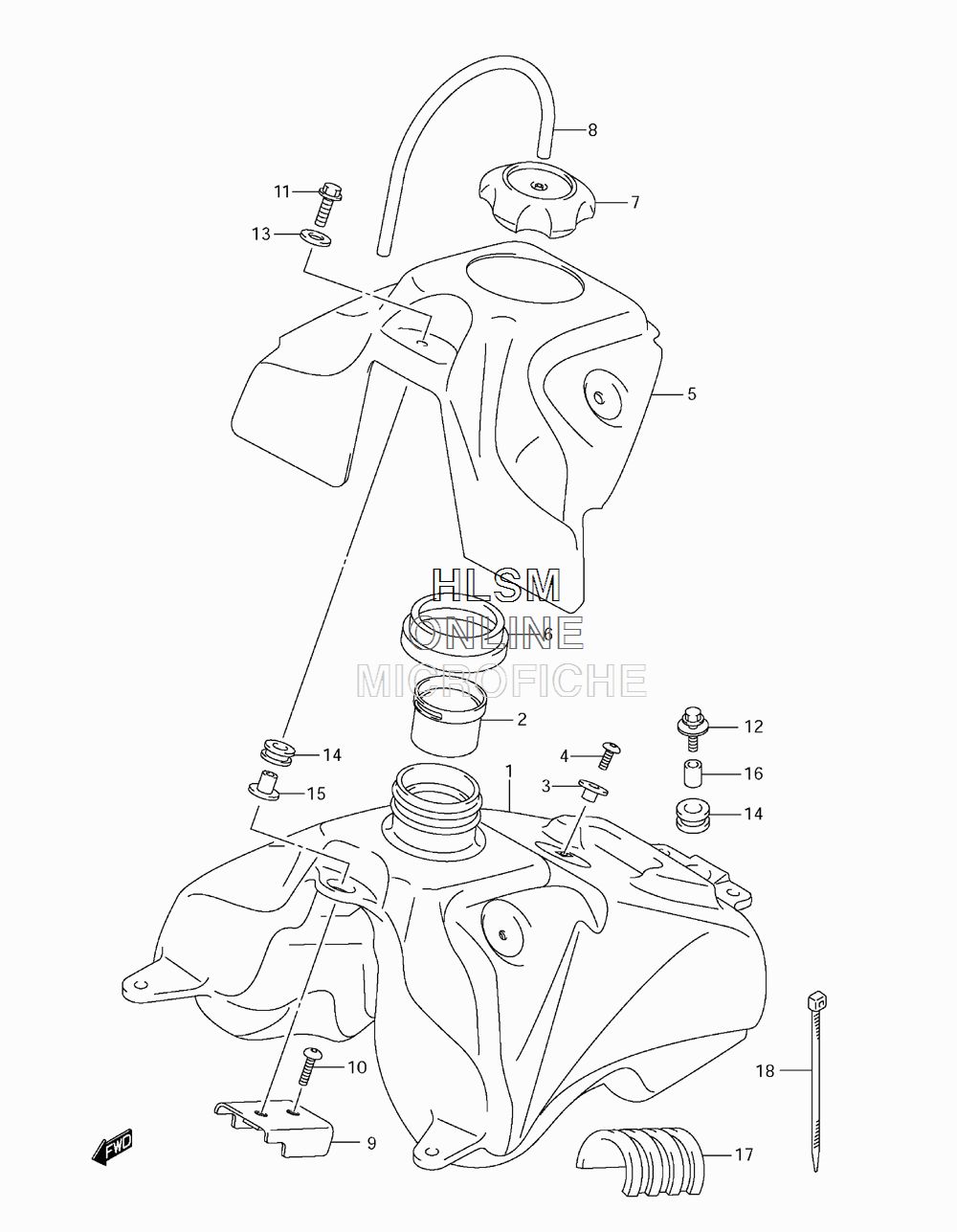

FUEL TANK для Suzuki DR-Z100LL3 - 2013 года выпуска
-
№АртикулНазвание
-
144110-08GA0 TANK, FUELTANK, FUEL
-
244199-19A00 TUBE, TANK FILLERTUBE, TANK FILLER
-
344132-27C01 HOOK, SEAT FRONTHOOK, SEAT FRONT
-
409139-06148 BOLT (6X20)BOLT (6X20)
-
544291-08GA0 COVER, TANK UPPERCOVER, TANK UPPER
-
644261-14H00 RUBBER, INLETRUBBER, INLET
-
744200-29F00 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
809352-50823-600 HOSE, BREATHERHOSE, BREATHER
-
944521-08GA0 BRACKET, FRONT UPPERBRACKET, FRONT UPPER
-
1009139-06172 SCREW (6X10)SCREW (6X10)
-
1101547-0630A BOLT, FRONTBOLT, FRONT
-
1209116-06186 BOLT (6X25)BOLT (6X25)
-
1309160-06134 WASHER (6.5X24X1.6)WASHER (6.5X24X1.6)
-
1444511-08G10 CUSHION, FUEL TANKCUSHION, FUEL TANK
-
1544512-23H00 SPACER, FRONTSPACER, FRONT
-
1609180-06293 SPACER (6.5X10X14)SPACER (6.5X10X14)
-
1744541-13E10 CUSHION, FUEL TANK CENTERCUSHION, FUEL TANK CENTER
-
1809407-30402 CLAMP (L:300)CLAMP (L:300)
