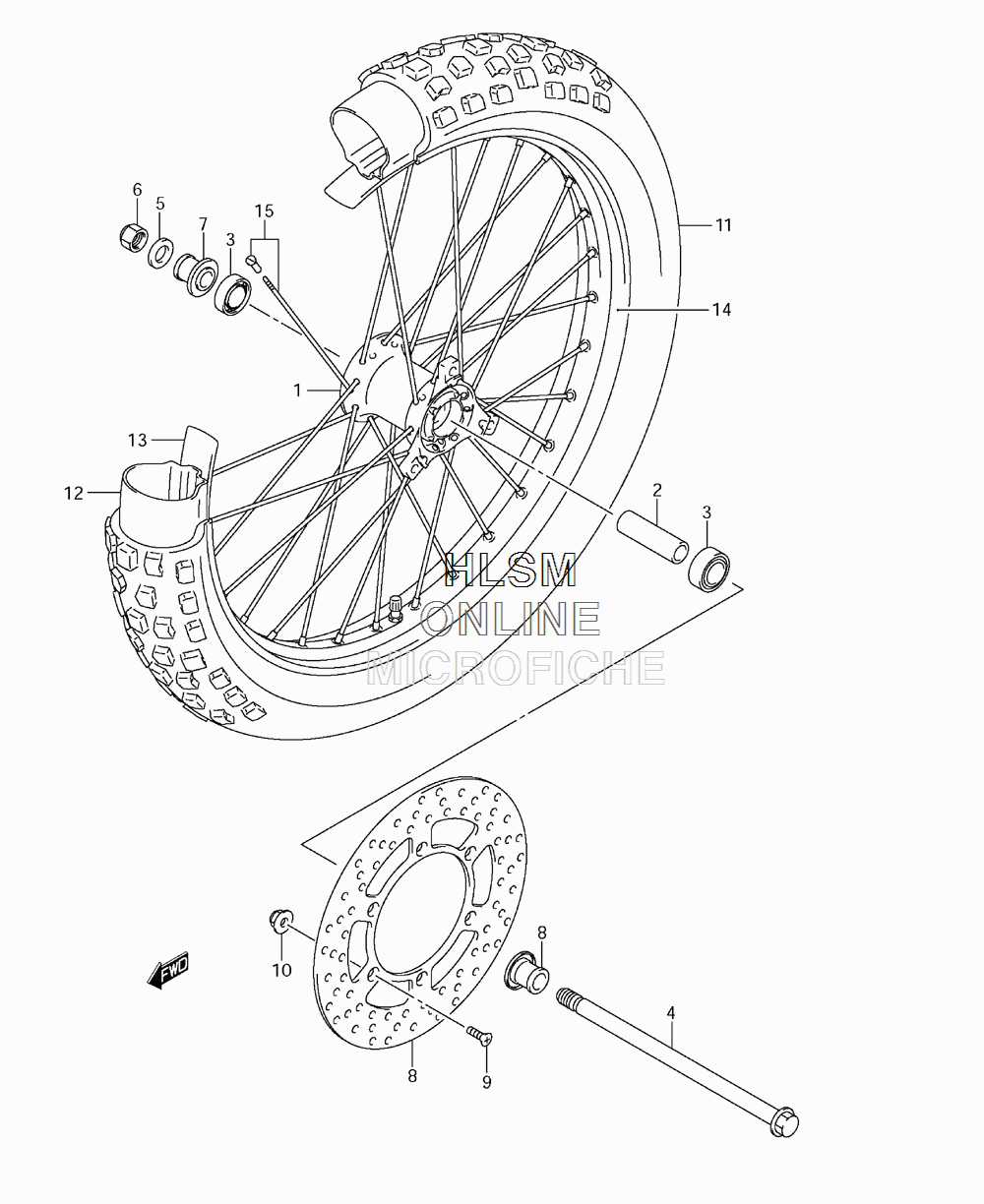

WHEEL - FRONT для Suzuki DR-Z100LL3 - 2013 года выпуска
-
№АртикулНазвание
-
154111-02B42 HUB, FRONT WHEELHUB, FRONT WHEEL
-
254731-02B40 SPACER, BEARINGSPACER, BEARING
-
308133-62017 BEARINGBEARING
-
454711-08G10 AXLE, FRONTAXLE, FRONT
-
509160-12082 WASHER (12.5X24X3.2)WASHER (12.5X24X3.2)
-
608319-2112A NUTNUT
-
754740-02B40 SPACER, FRONT AXLESPACER, FRONT AXLE
-
859221-08G00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
909126-06009 SCREW, DISC (6X22)SCREW, DISC (6X22)
-
1008319-3106A NUTNUT
-
1155110-08G10 TIRE, FRONT,70/100-19 42M IRCTIRE, FRONT,70/100-19 42M IRC
-
1255200-08G10 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
1355261-08G10 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
1455311-08G30 RIM, FRONT WHEEL (19X1.40)RIM, FRONT WHEEL (19X1.40)
-
1555320-08G30 SPOKE SET, FRONT WHEELSPOKE SET, FRONT WHEEL
