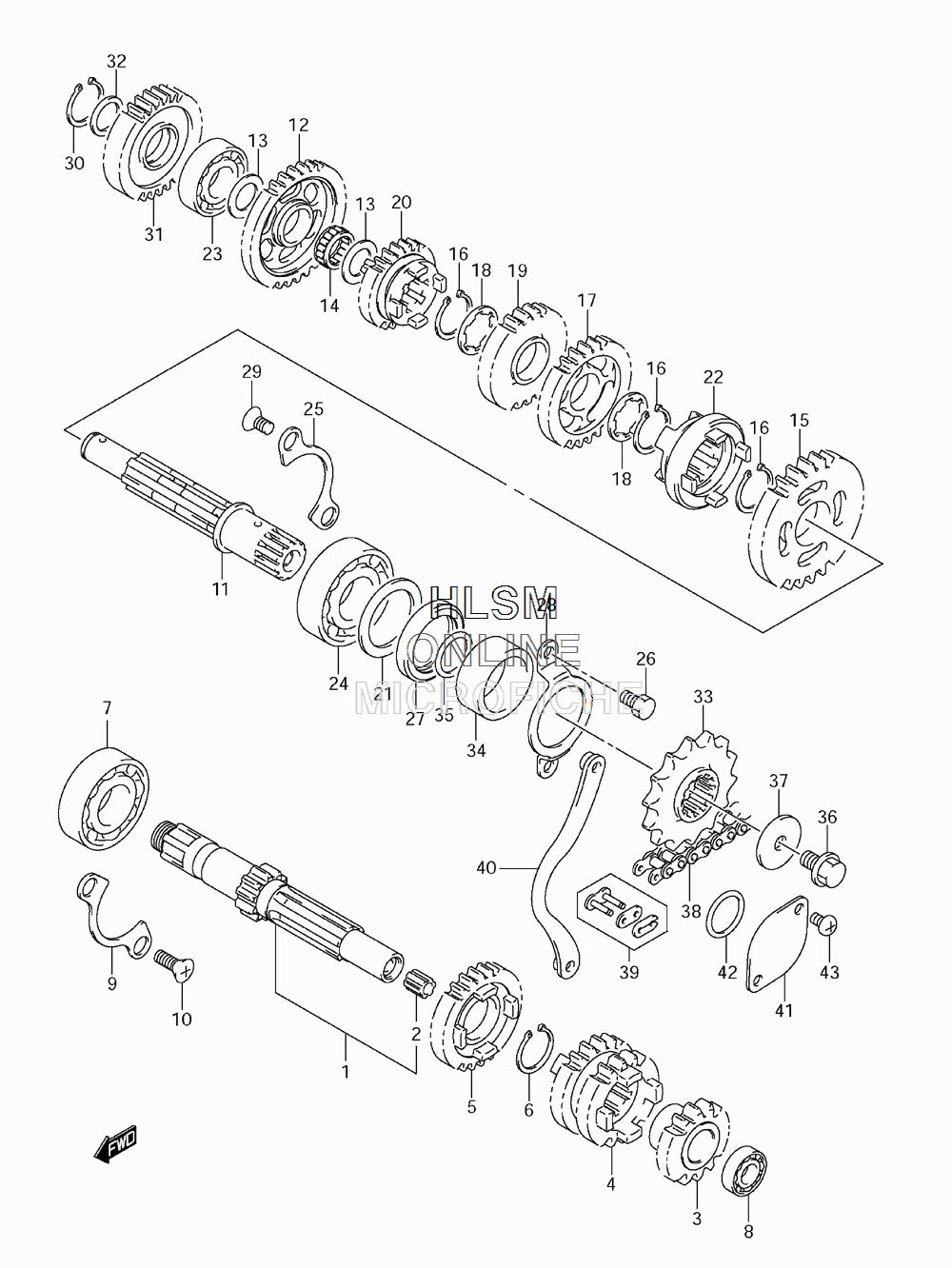

TRANSMISSION (CANADA ONLY) для Suzuki DR-Z100LL3 - 2013 года выпуска
-
№АртикулНазвание
-
124120-05860 SHAFT, COUNTER (NT:11)SHAFT, COUNTER (NT:11)
-
224125-38201 ...BUSH...BUSH
-
324221-05301 GEAR, 2ND DRIVE (NT:14)GEAR, 2ND DRIVE (NT:14)
-
424231-05203 GEAR, 3RD/4TH DR (NT:19/21)GEAR, 3RD/4TH DR (NT:19/21)
-
524251-05212 GEAR, 5TH DRIVE (NT:26)GEAR, 5TH DRIVE (NT:26)
-
609380-20009 CIRCLIP, 5TH DRIVECIRCLIP, 5TH DRIVE
-
709262-20069 BEARING (20X47X14)BEARING (20X47X14)
-
808123-60027 BEARINGBEARING
-
924741-05200 RETAINER, CNTR SHAFT BEARINGRETAINER, CNTR SHAFT BEARING
-
1009126-06011 SCREW (6X12)SCREW (6X12)
-
1124130-44A00 SHAFT, DRIVESHAFT, DRIVE
-
1224311-05202 GEAR, 1ST DRIVEN (NT:33)GEAR, 1ST DRIVEN (NT:33)
-
1308211-15251 THRUST WASHERTHRUST WASHER
-
1409263-15023 BEARING (15X19X7.8)BEARING (15X19X7.8)
-
1524320-05202 GEAR, 2ND DRIVEN (NT:26)GEAR, 2ND DRIVEN (NT:26)
-
1609380-20009 CIRCLIPCIRCLIP
-
1724331-05203 GEAR, 3RD DRIVEN (NT:26)GEAR, 3RD DRIVEN (NT:26)
-
1809167-20034 LOCK WASHERLOCK WASHER
-
1924341-05203 GEAR, 4TH DRIVEN (NT:23)GEAR, 4TH DRIVEN (NT:23)
-
2024351-05211 GEAR, 5TH DRIVEN (NT:24)GEAR, 5TH DRIVEN (NT:24)
-
2124359-42A00 WASHER, OIL SEALINGWASHER, OIL SEALING
-
2224421-05300 WHEEL, SLIDING DOGWHEEL, SLIDING DOG
-
2309264-15001 BEARING (15X36X12)BEARING (15X36X12)
-
2409262-22018 BEARING (22X50X14)BEARING (22X50X14)
-
2524741-05200 RETAINER, DRIVE SHAFT BEARINGRETAINER, DRIVE SHAFT BEARING
-
2601500-0610A BOLTBOLT
-
2709283-30053 OIL SEAL (30X40X6)OIL SEAL (30X40X6)
-
2824751-42A10 RETAINER,DRIVE SHAFT OIL SEALRETAINER,DRIVE SHAFT OIL SEAL
-
2909126-06011 SCREW (6X12)SCREW (6X12)
-
3008331-3115A CIRCLIPCIRCLIP
-
3126260-05201 GEAR, KICK STARTER IDLEGEAR, KICK STARTER IDLE
-
3209181-15111 WASHER (15X20X1.0)WASHER (15X20X1.0)
-
3327511-44A20 SPROCKET, ENGINE (NT:14)SPROCKET, ENGINE (NT:14)
-
3427531-42A00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
3509280-21008 O RING (D:2.5,ID:21)O RING (D:2.5,ID:21)
-
3601550-0812A BOLTBOLT
-
3708211-08283 WASHER, THRUSTWASHER, THRUST
-
3827600-46911-130 CHAIN ASSY (DID,428HG 134L)CHAIN ASSY (DID,428HG 134L)
-
3927620-46911 JOINT (DID,428HG)JOINT (DID,428HG)
-
4027640-08G00 PLATE, FRONT CHAINPLATE, FRONT CHAIN
-
4111450-08G00 CAP, NEUTRAL SWCAP, NEUTRAL SW
-
4209280-22001 O RING (D:2.4,ID:21.8)O RING (D:2.4,ID:21.8)
-
4302112-0508A SCREWSCREW
