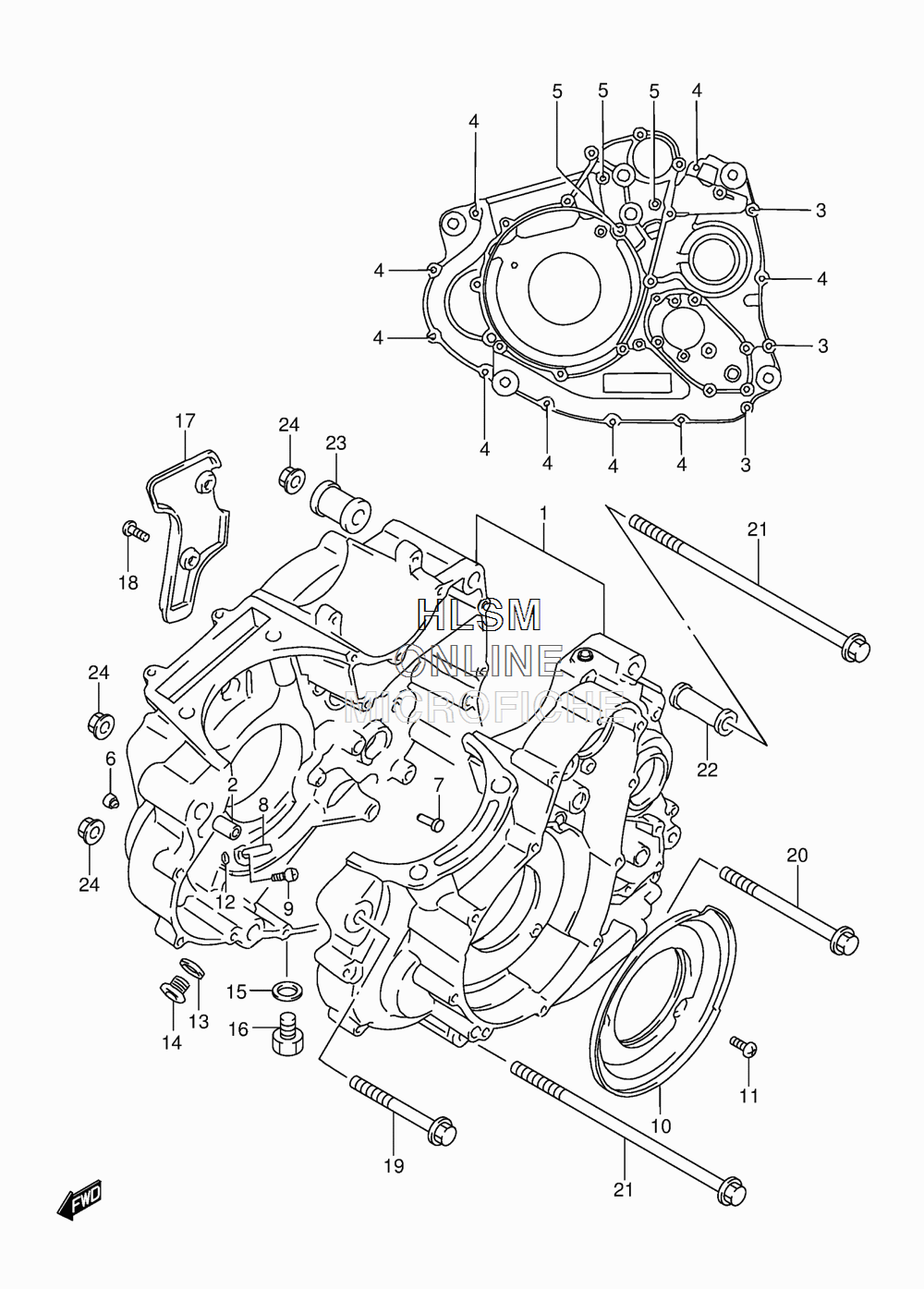

CRANKCASE для Suzuki DR-650SEL4 - 2014 года выпуска
-
№АртикулНазвание
-
111300-32881 CRANKCASE SETCRANKCASE SET
-
209202-10006 PINPIN
-
301547-0660A BOLTBOLT
-
401547-0640A BOLTBOLT
-
501547-0680A BOLTBOLT
-
611180-43410 JET, OIL GALLERYJET, OIL GALLERY
-
709223-04001 RIVETRIVET
-
811390-04F00 JET, PISTON COOLINGJET, PISTON COOLING
-
909106-06075 BOLT (6X12)BOLT (6X12)
-
1011323-32E00 SEPARATOR, OIL BREATHERSEPARATOR, OIL BREATHER
-
1102112-0612A SCREWSCREW
-
1209280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1309168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1409248-14012 PLUG (14X12)PLUG (14X12)
-
1509168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1609247-14026 PLUG (14X12)PLUG (14X12)
-
1711317-32E00 COVER, BREATHERCOVER, BREATHER
-
1802112-0612A SCREWSCREW
-
1909103-10110 BOLT (10X100)BOLT (10X100)
-
2009103-10237 BOLT (10X130)BOLT (10X130)
-
2109103-10239 BOLT (10X235)BOLT (10X235)
-
2211610-45410 SPACER (L:65)SPACER (L:65)
-
2311610-20C00 SPACER (L:27)SPACER (L:27)
-
2409159-10115 NUTNUT
