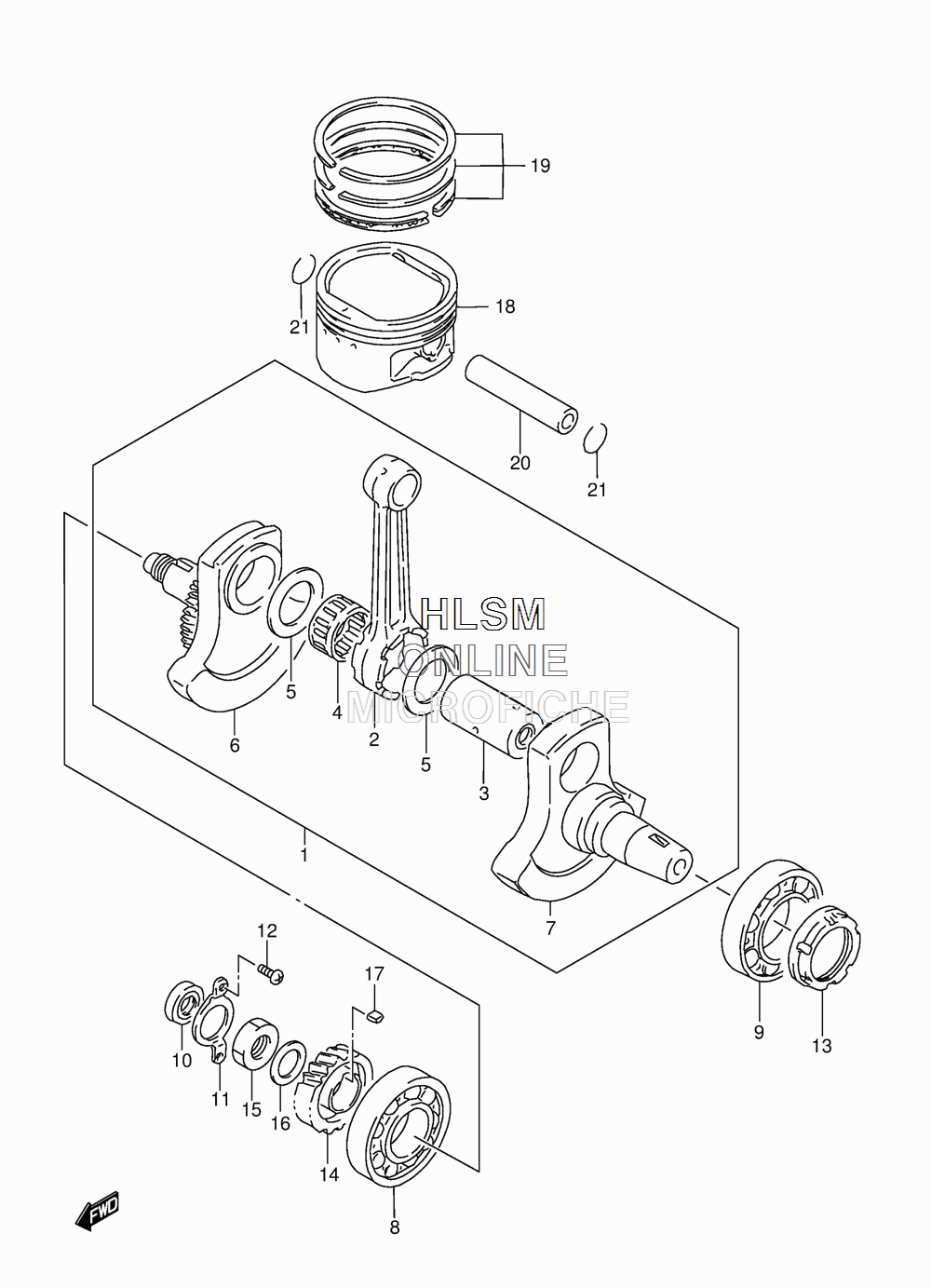

CRANKSHAFT W/ PISTON для Suzuki DR-650SEL4 - 2014 года выпуска
-
№АртикулНазвание
-
112000-32820 CRANKSHAFT SETCRANKSHAFT SET
-
212161-32E00 ROD, CONNECTINGROD, CONNECTING
-
312211-32E00 PIN, CRANKPIN, CRANK
-
409263-37004-0C0 BEARING (37X47X25)BEARING (37X47X25)
-
509160-37006 WASHER (37X55X1)WASHER (37X55X1)
-
612221-32810 CRANKSHAFT SET, RIGHT HANDCRANKSHAFT SET, RIGHT HAND
-
712261-32E00 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
809262-40008 BEARING (40X80X18)BEARING (40X80X18)
-
909262-45011 BEARING (45X85X19)BEARING (45X85X19)
-
1009282-16002 OIL SEAL (16X30X6)OIL SEAL (16X30X6)
-
1112548-37400 PLATE, RIGHT HANDPLATE, RIGHT HAND
-
1202112-0508A SCREWSCREW
-
1312664-04F00 NUTNUT
-
1421111-32E00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
1509140-20013 NUTNUT
-
1609164-20003 WASHERWASHER
-
1709420-05007 KEYKEY
-
1812111-32E00-0F0 PISTONPISTON
-
1912140-32E10 RING SET, PISTONRING SET, PISTON
-
2012151-14A01 PIN, PISTONPIN, PISTON
-
2109381-23003 CIRCLIPCIRCLIP
