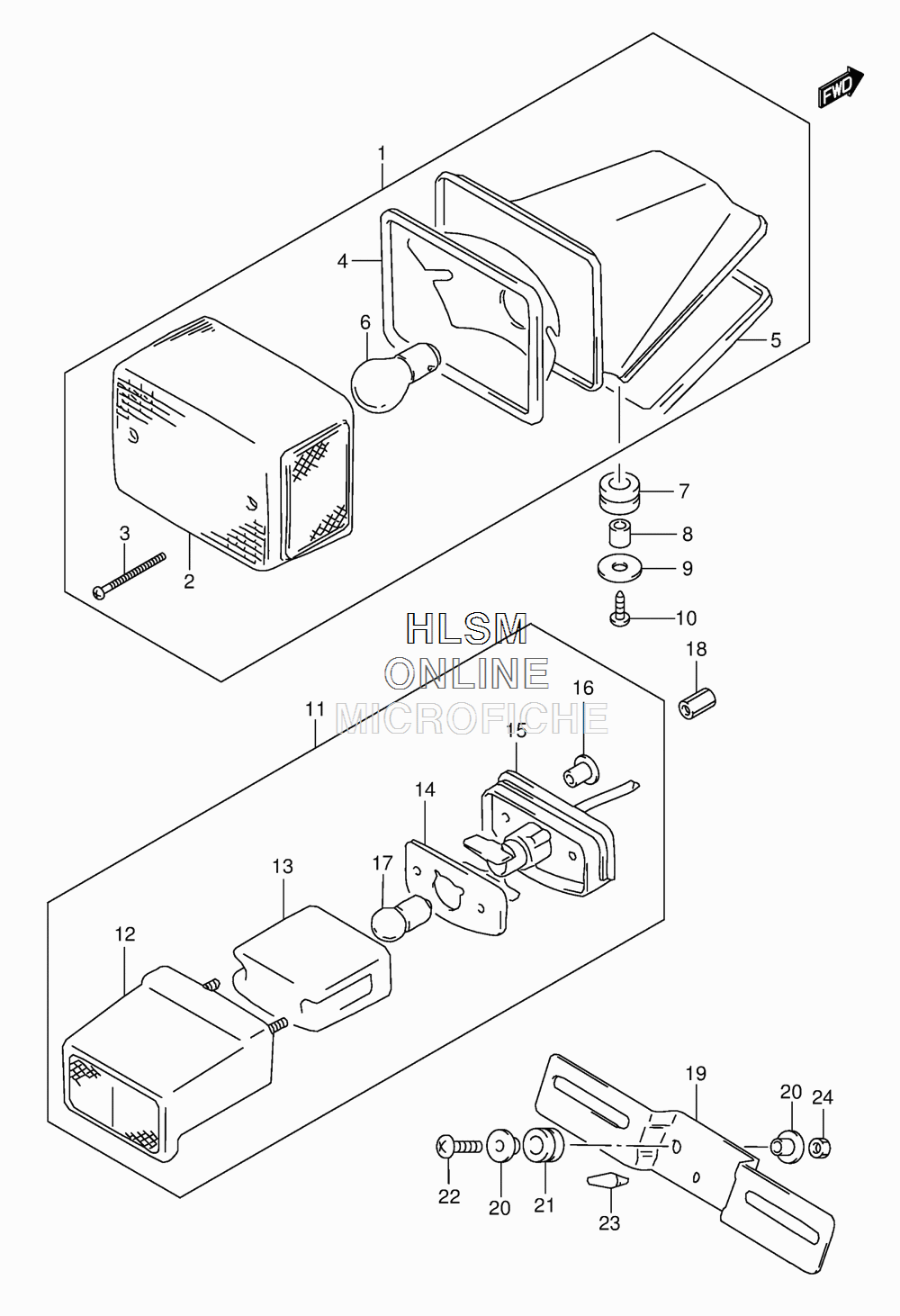

TAILLIGHT ASSY. для Suzuki DR-650SEL4 - 2014 года выпуска
-
№АртикулНазвание
-
135710-32E30 LAMP ASSY, TAILLAMP ASSY, TAIL
-
235712-14D30 LENSLENS
-
309125-04501 SCREW (4X45)SCREW (4X45)
-
435713-14D30 GASKETGASKET
-
535717-32E30 GASKETGASKET
-
609471-12083 BULB (12V,21/5W)BULB (12V,21/5W)
-
709320-09016 CUSHIONCUSHION
-
809180-06248 SPACER (6.1X8X9.5)SPACER (6.1X8X9.5)
-
909160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1002142-0625B SCREWSCREW
-
1135910-32E30 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
1235917-17C00 COVER, LENSCOVER, LENS
-
1335912-38A30 LENSLENS
-
1435913-38A30 GASKETGASKET
-
1535761-24B31 CUSHIONCUSHION
-
1635766-24B30 SPACERSPACER
-
1709471-12140 BULB (12V,5W)BULB (12V,5W)
-
1809140-04006 NUTNUT
-
1935927-26E30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
2009169-06073 WASHERWASHER
-
2109320-09016 CUSHIONCUSHION
-
2202142-0620A SCREWSCREW
-
2309321-06023 CUSHIONCUSHION
-
2408310-0006A NUTNUT
