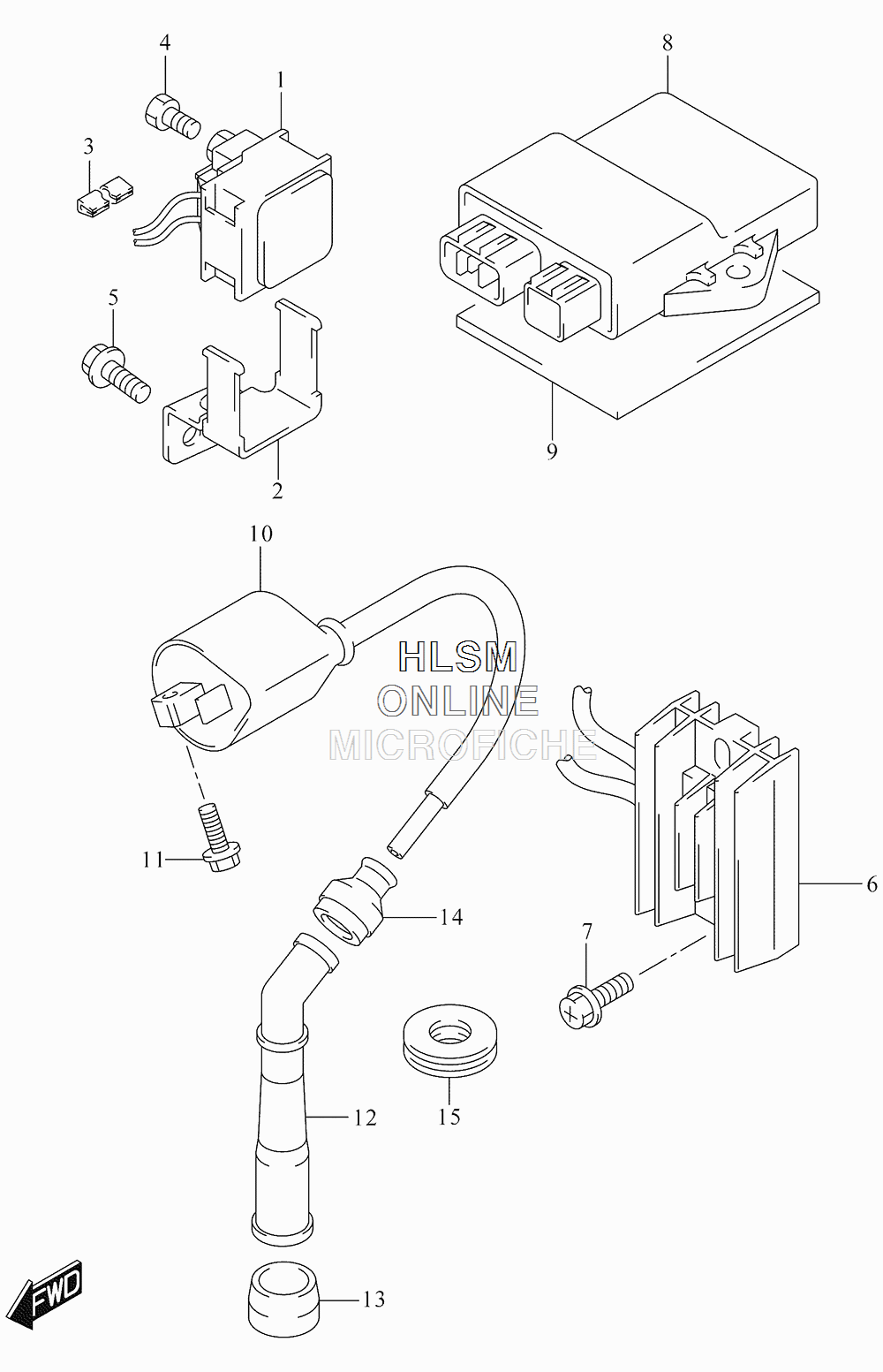

ELECTRICAL для Suzuki DRZ400SM [DRZ400SML5] - 2015 года выпуска
-
№АртикулНазвание
-
131800-29F00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231811-29F00 BRACKET, STARTING MOTOR RELAYBRACKET, STARTING MOTOR RELAY
-
331812-29F00 PROTECTOR, STARTING MOTOR LEADPROTECTOR, STARTING MOTOR LEAD
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
501550-0612B BOLTBOLT
-
632800-29F00 RECTIFIER ASSYRECTIFIER ASSY
-
702162-0620B SCREWSCREW
-
832900-29FD0 CDI UNITCDI UNIT
-
933652-36000 CUSHION, CDI UNITCUSHION, CDI UNIT
-
1033410-09F00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1101547-0616B BOLTBOLT
-
1233510-48B10 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1333541-23E10 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
1433542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1533543-33E01 COVER, SPARK PLUG CAPCOVER, SPARK PLUG CAP
