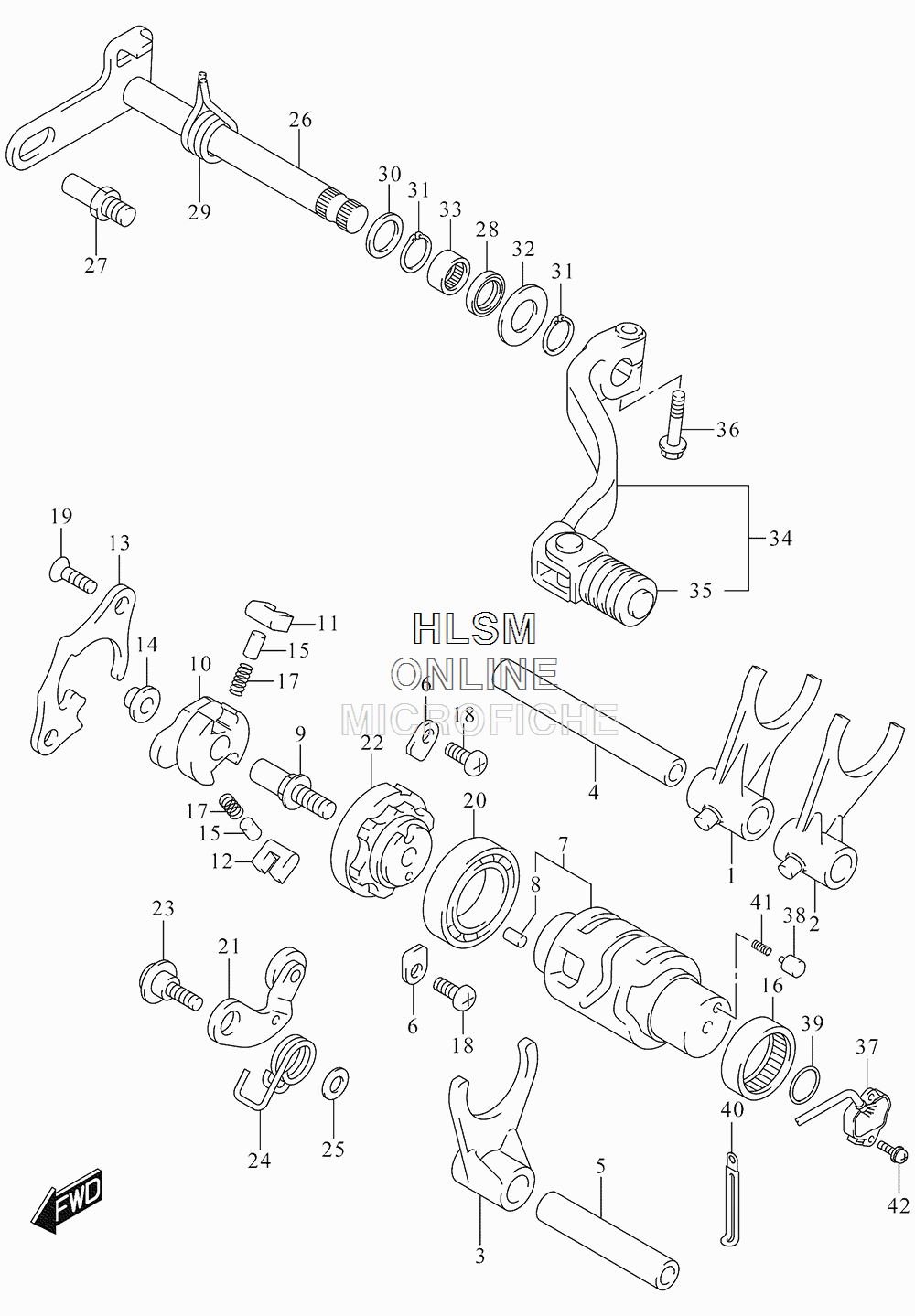

GEAR SHIFTING для Suzuki DRZ400SM [DRZ400SML5] - 2015 года выпуска
-
№АртикулНазвание
-
125211-28C01 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-28C02 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325231-28C02 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
425411-37F20 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
525421-27C01 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
624741-21A00 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
725310-29F10 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
804221-04089 ...PIN...PIN
-
925313-27C02 PIN, GEAR SHIFT CAM SHIFTERPIN, GEAR SHIFT CAM SHIFTER
-
1025322-36E00 SHIFTER, GEAR SHIFT CAMSHIFTER, GEAR SHIFT CAM
-
1125323-34201 PAWL, GEAR SHIFT NO.1PAWL, GEAR SHIFT NO.1
-
1225324-34201 PAWL, GEAR SHIFT NO.2PAWL, GEAR SHIFT NO.2
-
1325331-37E10 LIFTER, GEAR SHIFT PAWLLIFTER, GEAR SHIFT PAWL
-
1409180-07014 SPACER (7X10X5)SPACER (7X10X5)
-
1509261-05003 PIN (5X8)PIN (5X8)
-
1609263-25018 BEARING (25X32X12)BEARING (25X32X12)
-
1709440-04003 SPRINGSPRING
-
1809125-06122 SCREW (6X12)SCREW (6X12)
-
1909126-06011 SCREW (6X12)SCREW (6X12)
-
2008113-69050 BEARINGBEARING
-
2125350-29F00 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
2225381-36E11 PLATE, SHIFT CAM STOPPERPLATE, SHIFT CAM STOPPER
-
2325357-29F00 BOLT, CAM STOPPER ARMBOLT, CAM STOPPER ARM
-
2425355-29F00 SPRING, SHIFT CAM STOPPERSPRING, SHIFT CAM STOPPER
-
2508211-06121 WASHERWASHER
-
2625510-29F00 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2725671-38B00 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2809283-14005 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
2909444-20004 SPRINGSPRING
-
3009181-14139 SHIM (14X20X1)SHIM (14X20X1)
-
3108331-3114A CIRCLIPCIRCLIP
-
3209160-14046-XC0 WASHER (14X29X1.5)WASHER (14X29X1.5)
-
3309263-14027 BEARING (14X20X12)BEARING (14X20X12)
-
3425600-05D03 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3525652-03D00 ...RUBBER, GEAR SHIFT PEDAL...RUBBER, GEAR SHIFT PEDAL
-
3601547-0625A BOLTBOLT
-
3737730-20F10 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
3809209-05011 PIN (5X15.5)PIN (5X15.5)
-
3909280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
4009404-06429 CLAMP (L:45)CLAMP (L:45)
-
4109440-04010 SPRINGSPRING
-
4207120-0516A SCREWSCREW
