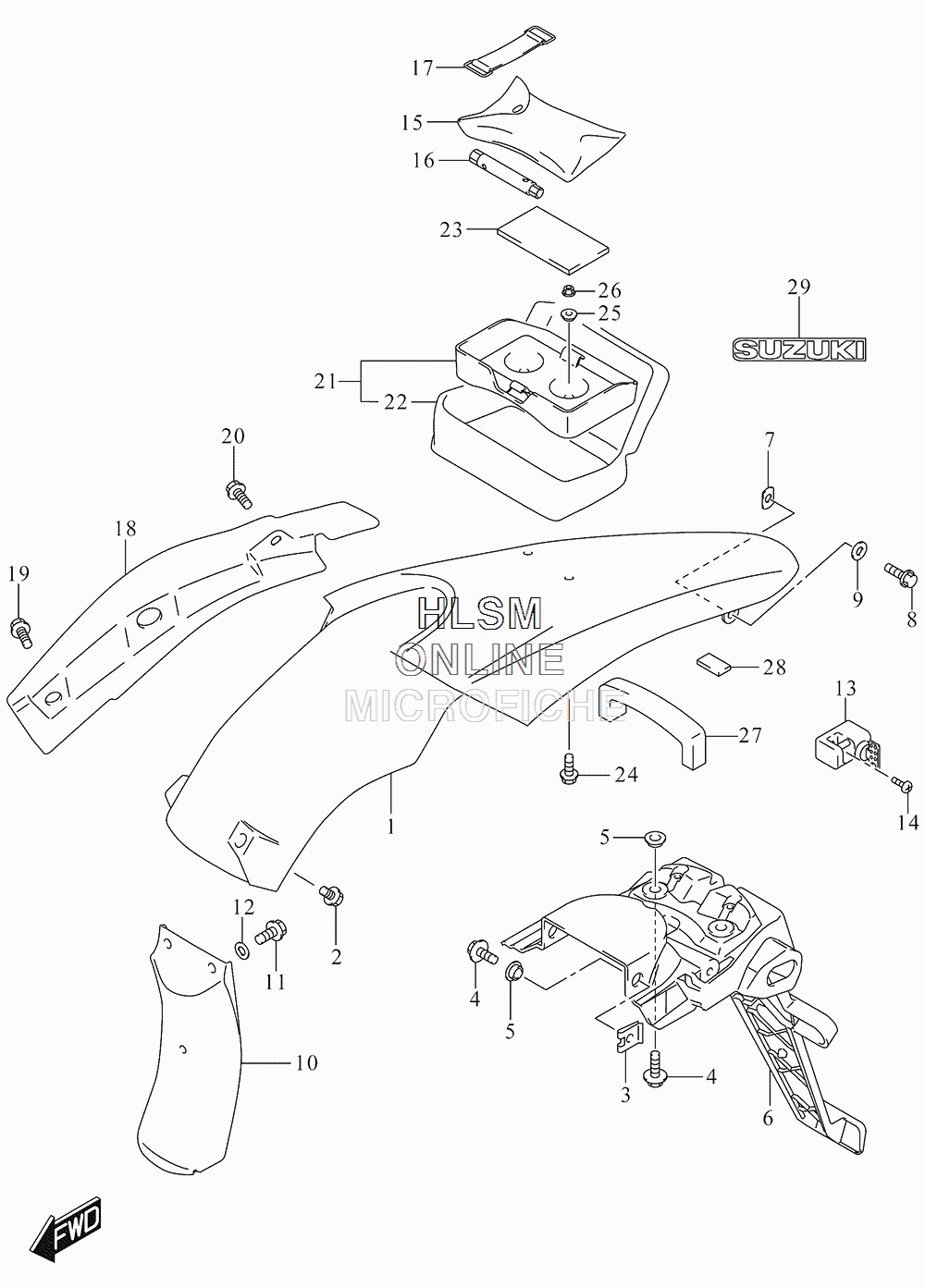

FENDER - REAR для Suzuki DRZ400SM [DRZ400SML5] - 2015 года выпуска
-
№АртикулНазвание
-
163113-29FA0-30H FENDER, REAR (WHITE)FENDER, REAR (WHITE)
-
209113-06001 BOLT (6X16)BOLT (6X16)
-
363312-13E01 PLATE, REAR FENDERPLATE, REAR FENDER
-
409116-06115 BOLT (6X20)BOLT (6X20)
-
509169-06073 WASHERWASHER
-
663311-29FA1 EXTENSION, REAR FENDEREXTENSION, REAR FENDER
-
794484-24F00 NUT, FITTINGNUT, FITTING
-
801550-0512B BOLTBOLT
-
909169-05024 WASHERWASHER
-
1063411-29F00 MUDGUARD, FRONTMUDGUARD, FRONT
-
1101547-0616B BOLTBOLT
-
1209169-06045 WASHERWASHER
-
1395700-41821 LOCK SET, HELMETLOCK SET, HELMET
-
1409139-06089 SCREW (6X14)SCREW (6X14)
-
1509800-21042 TOOL ASSYTOOL ASSY
-
1609816-00186 SPANNER, BOX (8X10)SPANNER, BOX (8X10)
-
1709462-00008 BANDBAND
-
1863114-29F00 MUDGUARD, REAR FENDER (RH)MUDGUARD, REAR FENDER (RH)
-
1909111-06081 BOLT (6X18) (LOWER)BOLT (6X18) (LOWER)
-
2009111-06107 BOLT (6X12)BOLT (6X12)
-
2194900-29FB1 BAG, SEAT TAILBAG, SEAT TAIL
-
2294910-29FB0 ...BAG...BAG
-
2394915-44E00 CUSHIONCUSHION
-
2401550-0620B BOLTBOLT
-
2509169-06063 WASHERWASHER
-
2609159-06078 NUTNUT
-
2747161-29B00 CUSHION, FRONTCUSHION, FRONT
-
2833651-37000 CUSHION, REARCUSHION, REAR
-
2968721-13A00-FH7 EMBLEM, ''SUZUKI''EMBLEM, ''SUZUKI''
