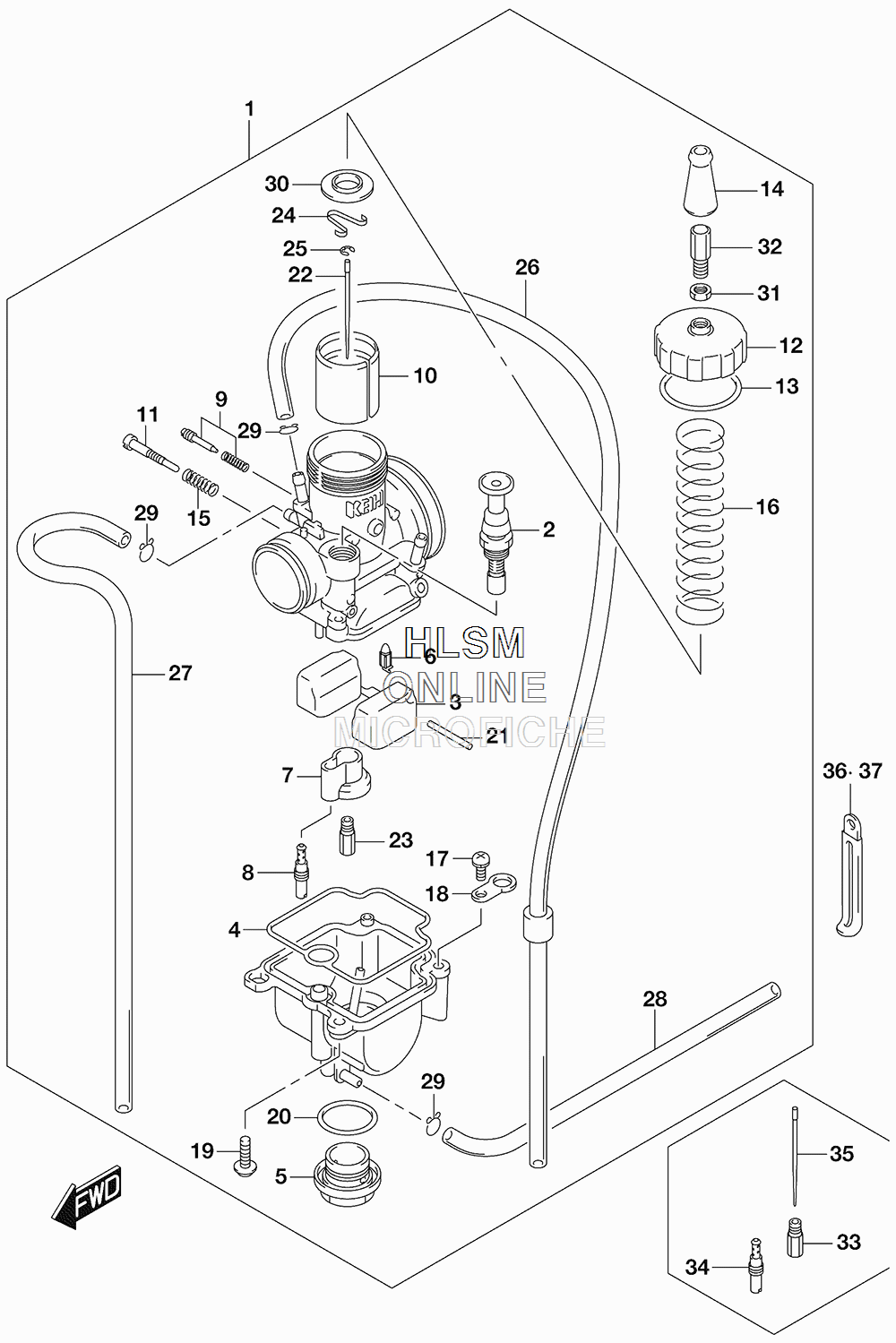

CARBURETOR ASSY. для Suzuki RM85 [RM85L5] - 2015 года выпуска
-
№АртикулНазвание
-
113200-03B30 CARBURETOR ASSYCARBURETOR ASSY
-
213410-03B00 ...VALVE ASSY, STARTER...VALVE ASSY, STARTER
-
313252-03B00 ...FLOAT ASSY...FLOAT ASSY
-
413251-03B00 ...GASKET...GASKET
-
513247-28E00 ...BOLT, DRAIN...BOLT, DRAIN
-
613370-03B01 ...VALVE ASSY, NEEDLE...VALVE ASSY, NEEDLE
-
713331-03B00 ...HOLDER, JET...HOLDER, JET
-
809492-50023 ...JET, SLOW...JET, SLOW
-
913269-03B00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
1013551-03B00 ...THROTTLE VALVE...THROTTLE VALVE
-
1113267-03B00 ...SCREW, STOP...SCREW, STOP
-
1213261-03B00 ...COVER...COVER
-
1313266-03B00 ...GASKET...GASKET
-
1413681-03B00 ...CAP...CAP
-
1513268-03B00 ...SPRING...SPRING
-
1613573-03B00 ...SPRING...SPRING
-
1702112-14087 ...SCREW...SCREW
-
1813693-28E00 ...PLATE...PLATE
-
1913601-14F80 ...SCREW...SCREW
-
2013246-28E00 ...O RING...O RING
-
2113254-92311 ...PIN, FLOAT...PIN, FLOAT
-
2213383-03B20 ...NEEDLE (24NAAH)...NEEDLE (24NAAH)
-
2309491-25020 ...JET, MAIN (128)...JET, MAIN (128)
-
2413398-03B00 ...CLIP...CLIP
-
2513394-28E00 ...CLIP, NEEDLE...CLIP, NEEDLE
-
2613686-03B00 ...PIPE ASSY...PIPE ASSY
-
2713686-36E00 ...HOSE, (4X7X620) (L:620->380)...HOSE, (4X7X620) (L:620->380)
-
2813686-36E00 ...HOSE, (4X7X620) (L:620->300)...HOSE, (4X7X620) (L:620->300)
-
2909401-06101 ...CLIP...CLIP
-
3013629-03B00 ...VALVE PLATE...VALVE PLATE
-
3113661-03B00 ...NUT...NUT
-
3213577-03B00 ...ADJUST BOLT...ADJUST BOLT
-
3313341-03B00 ...JET, NEEDLE...JET, NEEDLE
-
3309491-23027 JET, MAIN (115) (OPT)JET, MAIN (115) (OPT)
-
3309491-23028 JET, MAIN (118) (OPT)JET, MAIN (118) (OPT)
-
3309491-24030 JET, MAIN (120) (OPT)JET, MAIN (120) (OPT)
-
3309491-24031 JET, MAIN (122) (OPT)JET, MAIN (122) (OPT)
-
3309491-25019 JET, MAIN (125) (OPT)JET, MAIN (125) (OPT)
-
3309491-25020 JET, MAIN (128) (OPT)JET, MAIN (128) (OPT)
-
3309491-26017 JET, MAIN (130) (OPT)JET, MAIN (130) (OPT)
-
3309491-26018 JET, MAIN (132) (OPT)JET, MAIN (132) (OPT)
-
3309491-27016 JET, MAIN (135) (OPT)JET, MAIN (135) (OPT)
-
3309491-27017 JET, MAIN (138) (OPT)JET, MAIN (138) (OPT)
-
3309491-28019 JET, MAIN (140) (OPT)JET, MAIN (140) (OPT)
-
3309491-28020 JET, MAIN (142) (OPT)JET, MAIN (142) (OPT)
-
3309491-29014 JET, MAIN (145) (OPT)JET, MAIN (145) (OPT)
-
3409492-45032 JET, PILOT (45) (OPT)JET, PILOT (45) (OPT)
-
3409492-48013 JET, PILOT (48) (OPT)JET, PILOT (48) (OPT)
-
3409492-50023 JET, PILOT (OPT)JET, PILOT (OPT)
-
3409492-52011 JET, PILOT (52) (OPT)JET, PILOT (52) (OPT)
-
3409492-55017 JET, PILOT (55) (OPT)JET, PILOT (55) (OPT)
-
3409492-58001 JET, PILOT (58) (OPT)JET, PILOT (58) (OPT)
-
3513383-03B00 NEEDLE (24NAAF) (OPT)NEEDLE (24NAAF) (OPT)
-
3513383-03B10 NEEDLE (24NAAG) (OPT)NEEDLE (24NAAG) (OPT)
-
3513383-03B20 NEEDLE (24NAAH) (OPT)NEEDLE (24NAAH) (OPT)
-
3513383-03B30 NEEDLE (24NAAJ) (OPT)NEEDLE (24NAAJ) (OPT)
-
3513383-03B40 NEEDLE (24NAAK) (OPT)NEEDLE (24NAAK) (OPT)
-
3513383-03B50 NEEDLE (24NCDF) (OPT)NEEDLE (24NCDF) (OPT)
-
3513383-03B60 NEEDLE (24NCDG) (OPT)NEEDLE (24NCDG) (OPT)
-
3513383-03B70 NEEDLE (24NCDH) (OPT)NEEDLE (24NCDH) (OPT)
-
3513383-03B80 NEEDLE (24NCDJ) (OPT)NEEDLE (24NCDJ) (OPT)
-
3513383-03B90 NEEDLE (24NCDK) (OPT)NEEDLE (24NCDK) (OPT)
-
3609404-06429 CLAMP (L:45)CLAMP (L:45)
-
3709404-08418 CLAMP (L:82)CLAMP (L:82)
