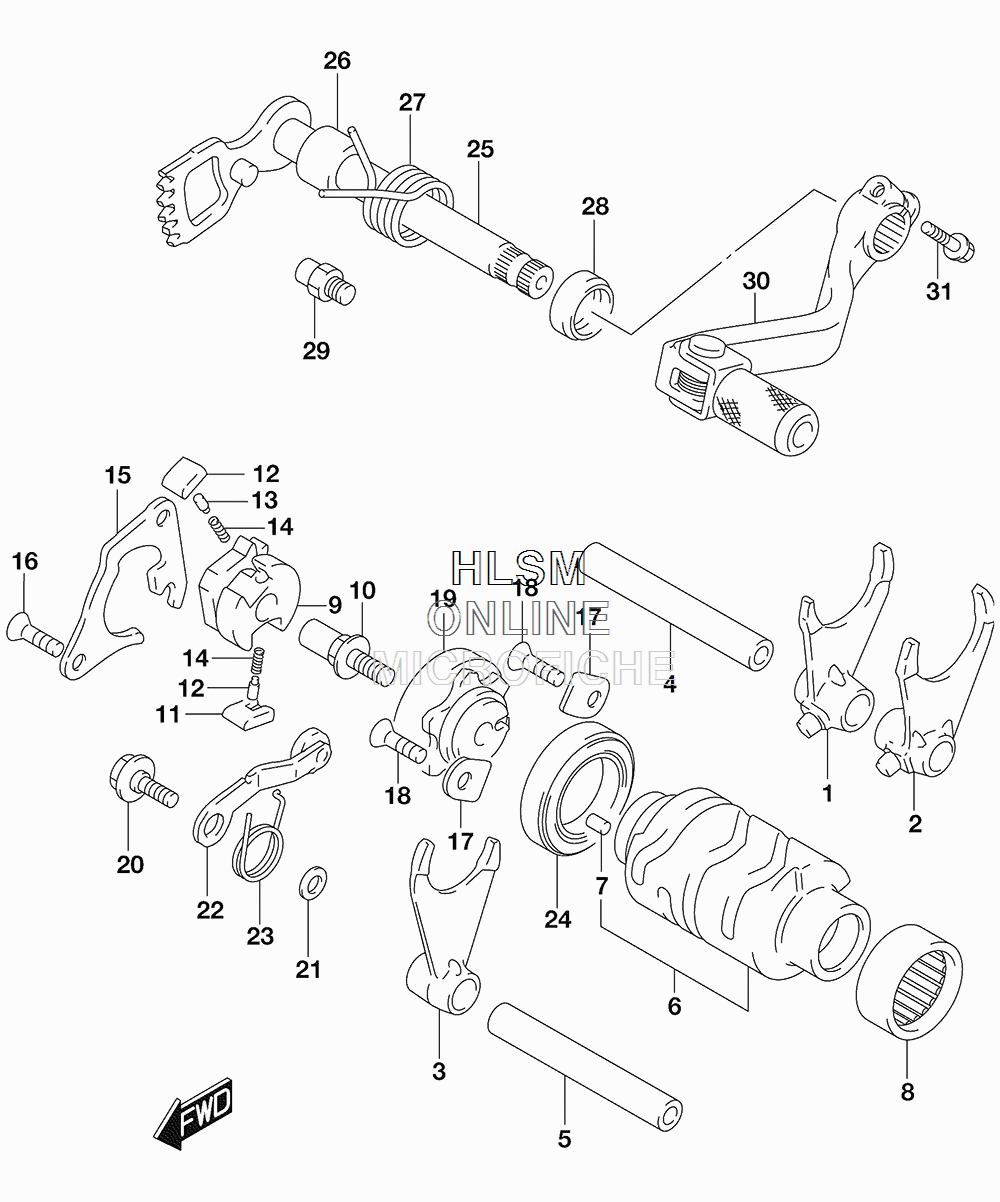

GEAR SHIFTING для Suzuki RM85 [RM85L5] - 2015 года выпуска
-
№АртикулНазвание
-
125211-02B41 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-02B41 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325231-02B40 FORK, NO.3FORK, NO.3
-
425411-02B41 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
525421-27C01 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
625310-03B10 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
704221-04089 ...PIN...PIN
-
809263-25018 BEARING (25X32X12)BEARING (25X32X12)
-
925322-31310 GEAR, DRIVENGEAR, DRIVEN
-
1025313-27C02 PIN, SHIFT CAM DRIVEN GEARPIN, SHIFT CAM DRIVEN GEAR
-
1125323-34201 PAWL, GEAR SHIFT NO.1PAWL, GEAR SHIFT NO.1
-
1225324-34201 PAWL, GEAR SHIFT NO.2PAWL, GEAR SHIFT NO.2
-
1309209-05023 PINPIN
-
1409440-04003 SPRINGSPRING
-
1525331-27C00 LIFTER, GEAR SHIFT POLELIFTER, GEAR SHIFT POLE
-
1609126-06011 SCREW (6X12)SCREW (6X12)
-
1724741-20A00 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
1809126-06011 SCREW (6X12)SCREW (6X12)
-
1925381-37F30 PLATE, SHIFT CAM STOPPERPLATE, SHIFT CAM STOPPER
-
2009111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
2108211-06121 WASHERWASHER
-
2225350-27C30 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
2325355-03B00 SPRING, SHIFT CAM STOPPERSPRING, SHIFT CAM STOPPER
-
2408140-69050 BEARINGBEARING
-
2525510-28C30 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2609180-14016 SPACER (14X20X17.5)SPACER (14X20X17.5)
-
2709444-26013 SPRINGSPRING
-
2809283-14005 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
2925671-01011 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
3025600-03B10 LEVER ASSY, GEAR SHIFTINGLEVER ASSY, GEAR SHIFTING
-
3101547-0620A BOLTBOLT
