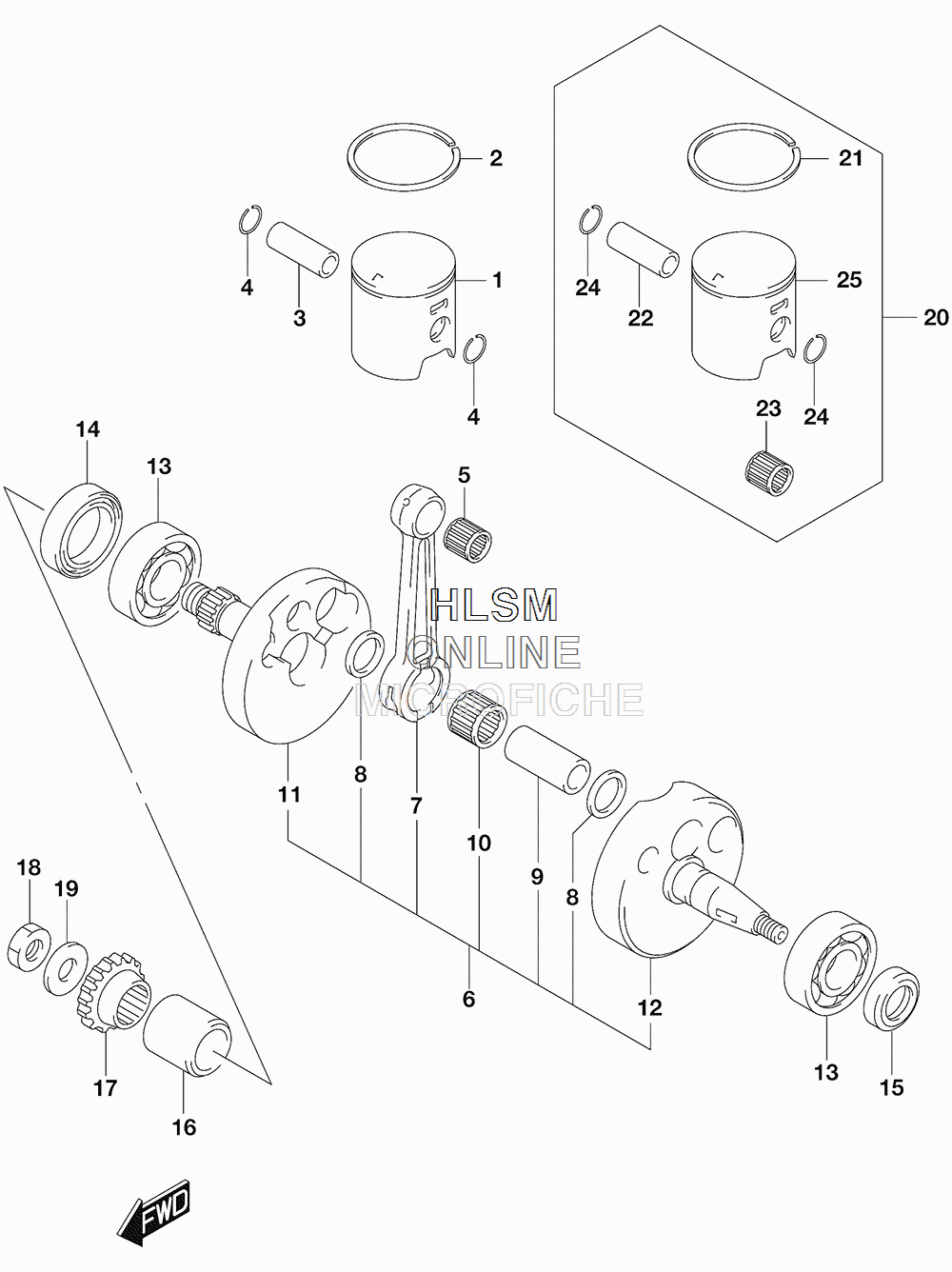

CRANKSHAFT W/ PISTON для Suzuki RM85 [RM85L5] - 2015 года выпуска
-
№АртикулНазвание
-
112110-03B20-0F0 PISTONPISTON
-
212141-03B00 RING, PISTONRING, PISTON
-
312151-20910 PIN, PISTONPIN, PISTON
-
409381-14001 CIRCLIPCIRCLIP
-
509263-14016 BEARING (14X18X16)BEARING (14X18X16)
-
612200-03B20 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
712161-03B02 ...CONNROD...CONNROD
-
809160-20082 ...WASHER (20X34X1.5)...WASHER (20X34X1.5)
-
912211-02B50 ...PIN, CRANK...PIN, CRANK
-
1009263-20088 ...BEARING (20X26X14)...BEARING (20X26X14)
-
1112221-03B01 ...CRANKSHAFT, RIGHT HAND...CRANKSHAFT, RIGHT HAND
-
1212261-03B01 ...CRANKSHAFT, LEFT HAND...CRANKSHAFT, LEFT HAND
-
1309262-20082 BEARING (20X52X15)BEARING (20X52X15)
-
1409283-30061 OIL SEAL (30X40X7)OIL SEAL (30X40X7)
-
1509283-18007 OIL SEAL (18X30X7)OIL SEAL (18X30X7)
-
1612359-27C30 SPACER, PRIMARY DRIVE GEARSPACER, PRIMARY DRIVE GEAR
-
1721111-02B41 GEAR, PRIMARY DRIVE (NT:18)GEAR, PRIMARY DRIVE (NT:18)
-
1809140-16019 NUTNUT
-
1909164-16002 WASHERWASHER
-
2012100-03850 PISTON KIT (OPT)PISTON KIT (OPT)
-
2112141-03B00 ...RING, PISTON (OPT)...RING, PISTON (OPT)
-
2212151-20910 ...PIN, PISTON (OPT)...PIN, PISTON (OPT)
-
2309263-14016 ...BEARING (14X18X16) (OPT)...BEARING (14X18X16) (OPT)
-
2409381-14001 ...CIRCLIP (OPT)...CIRCLIP (OPT)
-
2512110-03B20-0F0 ...PISTON (OPT)...PISTON (OPT)
