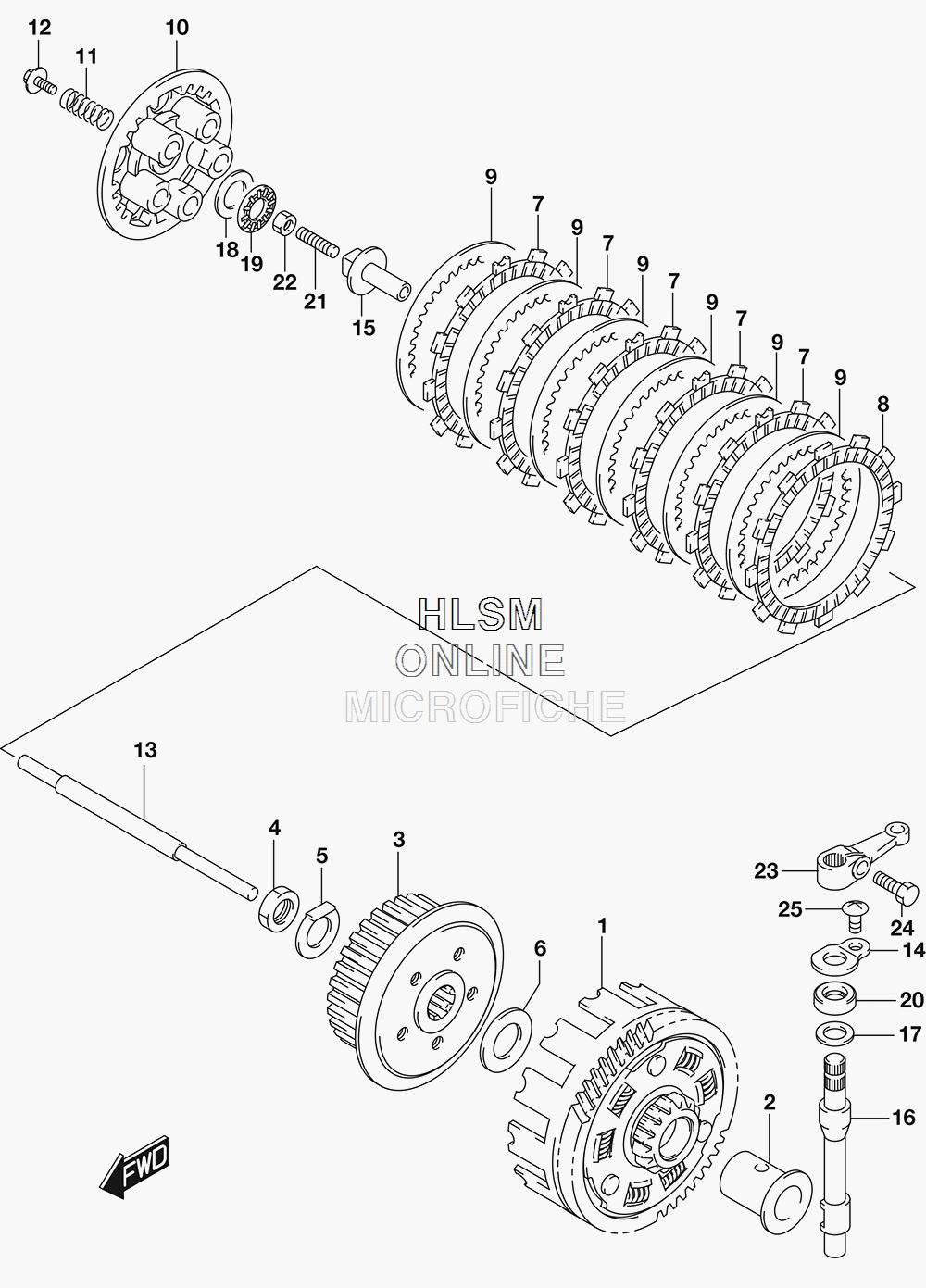

CLUTCH для Suzuki DR-200SL7 - 2017 года выпуска
-
№АртикулНазвание
-
121200-42A50 GEAR ASSY, PRIMARY DRIVEN (NT:20/60)GEAR ASSY, PRIMARY DRIVEN (NT:20/60)
-
221251-13E00 SPACERSPACER
-
321411-42A04 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
409140-16001 NUTNUT
-
509169-16003 WASHERWASHER
-
608211-20355 WASHERWASHER
-
721441-25C01 PLATE, CLUTCH DRIVE (T:3.0)PLATE, CLUTCH DRIVE (T:3.0)
-
821441-13A01 PLATE, CLUTCH DRIVE (T:3.0)PLATE, CLUTCH DRIVE (T:3.0)
-
921451-01B40 PLATE, CLUTCH DRIVEN (T:1.4)PLATE, CLUTCH DRIVEN (T:1.4)
-
1021462-14130 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1109440-15021 SPRINGSPRING
-
1209116-05020 BOLT (5X16)BOLT (5X16)
-
1323110-05203 ROD, CLUTCH PUSHROD, CLUTCH PUSH
-
1423117-05200 RETAINER, CLUTCH RLSE OIL SEALRETAINER, CLUTCH RLSE OIL SEAL
-
1523121-38201 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
1623122-05200 CAM SHAFT, CLUTCH RELEASECAM SHAFT, CLUTCH RELEASE
-
1709181-10195 SHIM (10X20X1)SHIM (10X20X1)
-
1809160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
1909263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
2009282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
2109134-06010 SCREW (6X25)SCREW (6X25)
-
2209140-06023 NUTNUT
-
2323271-46010 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2401500-0616A BOLTBOLT
-
2502142-0610A SCREWSCREW
