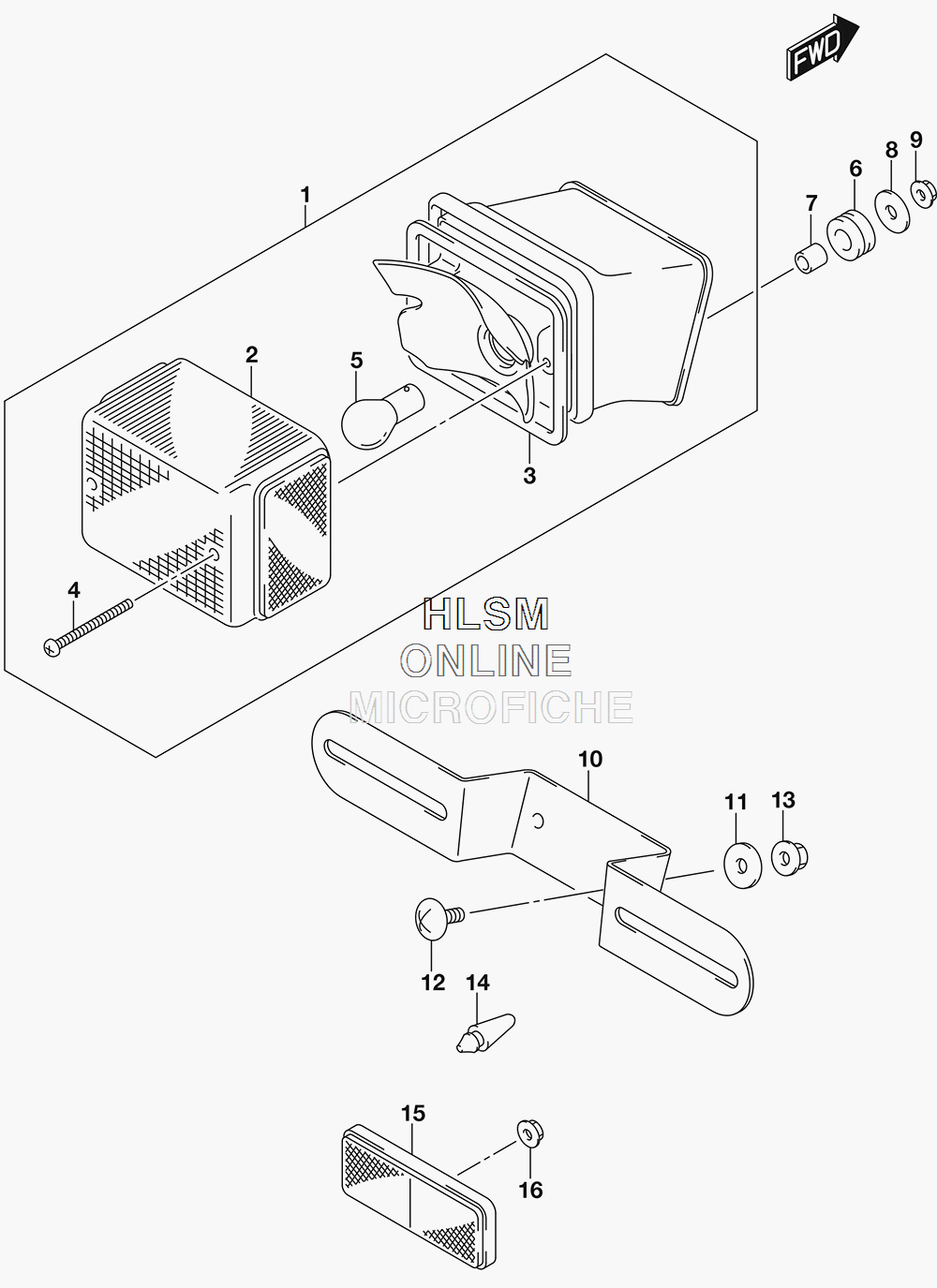

REAR COMBINATION LAMP (CALIF.) для Suzuki DR-200SL7 - 2017 года выпуска
-
№АртикулНазвание
-
135710-29F30 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235712-42A30 ...LENS...LENS
-
335713-14D30 ...GASKET, LENS...GASKET, LENS
-
409125-04501 ...SCREW (4X45)...SCREW (4X45)
-
509471-12083 ...BULB (12V, 21/5W)...BULB (12V, 21/5W)
-
609320-10501 CUSHIONCUSHION
-
709180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
809160-06109 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
908316-1006A NUTNUT
-
1035927-49J00 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1109160-06129 WASHER (6.5X16X1)WASHER (6.5X16X1)
-
1202142-0616A SCREWSCREW
-
1308316-1006A NUTNUT
-
1409321-06030 CUSHIONCUSHION
-
1535970-07F01 REFLEX REFLECTOR ASSY, REARREFLEX REFLECTOR ASSY, REAR
-
1608316-1005A NUTNUT
