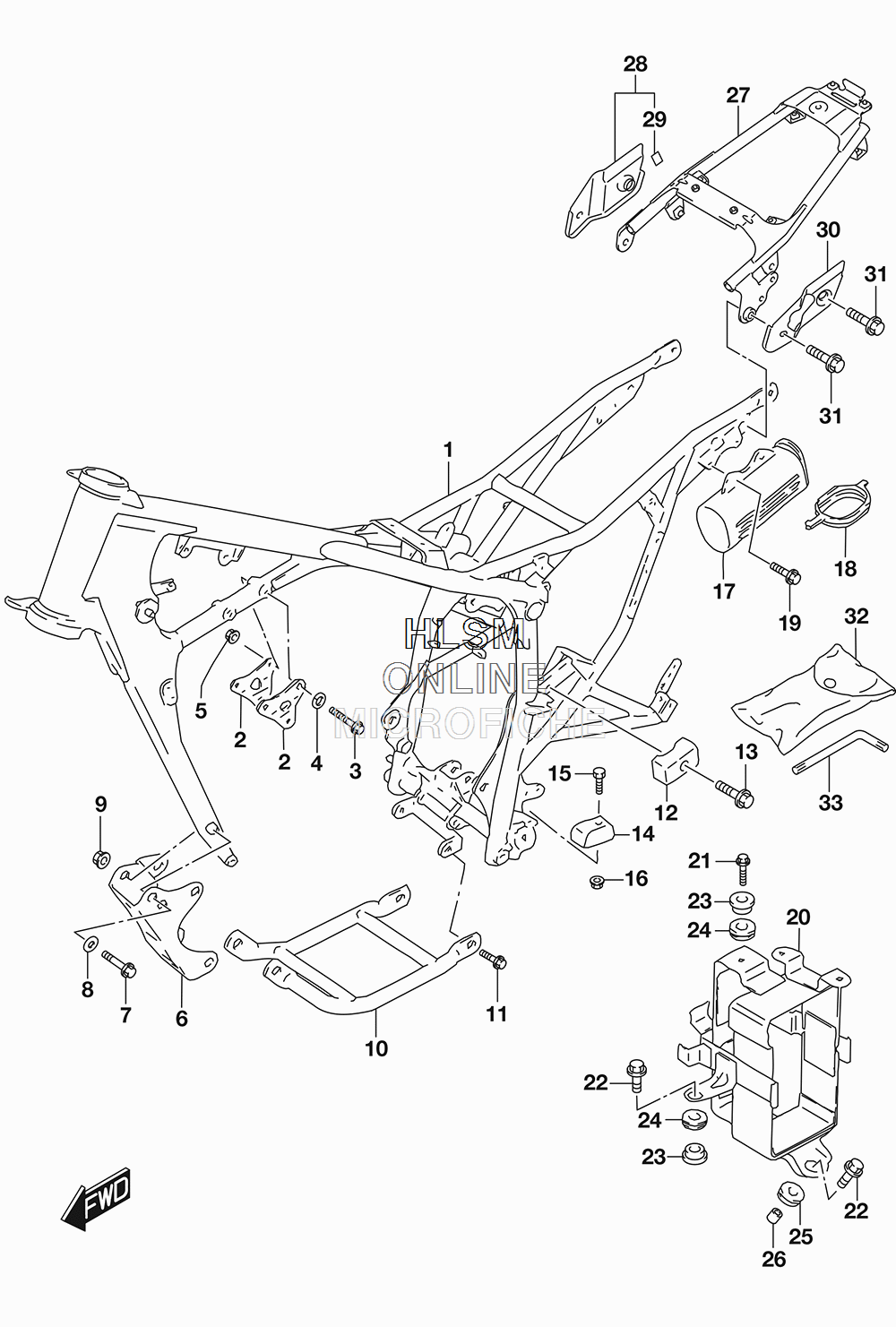

FRAME (CALIF.) для Suzuki DR-200SL7 - 2017 года выпуска
-
№АртикулНазвание
-
141100-44AP0-YPT FRAME (YPT - GRAY)FRAME (YPT - GRAY)
-
241991-42A00-291 PLATE, MOUNT UPPER (291 - BLACK)PLATE, MOUNT UPPER (291 - BLACK)
-
309103-08332 BOLT (8X53)BOLT (8X53)
-
408321-0108A WASHER, LOCKWASHER, LOCK
-
508319-3108A NUTNUT
-
641992-44AA1-YPT PLATE, MOUNT LOWER (YPT - GRAY)PLATE, MOUNT LOWER (YPT - GRAY)
-
709103-08293 BOLT (8X70)BOLT (8X70)
-
808321-0108A WASHER, LOCKWASHER, LOCK
-
908319-3108A NUTNUT
-
1042510-44AA0-YPT PROTECTOR, ENGINE (YPT - GRAY)PROTECTOR, ENGINE (YPT - GRAY)
-
1101550-1016A BOLTBOLT
-
1243911-44A00 GUIDE, CHAIN UPPERGUIDE, CHAIN UPPER
-
1301580-0635B BOLTBOLT
-
1443912-42AA0 GUIDE, CHAIN LOWERGUIDE, CHAIN LOWER
-
1509128-06006 BOLT (6X20)BOLT (6X20)
-
1608319-3106B NUTNUT
-
1741551-38201 HOLDER, TOOLHOLDER, TOOL
-
1841552-37210 CAP, TOOL HOLDERCAP, TOOL HOLDER
-
1909116-06165 BOLT (6X16)BOLT (6X16)
-
2041540-44AA0 HOLDER, BATTERYHOLDER, BATTERY
-
2101550-0620A BOLT, UPPERBOLT, UPPER
-
2209116-06047 BOLT (6X25)BOLT (6X25)
-
2309169-06065 WASHERWASHER
-
2409320-08021 CUSHIONCUSHION
-
2509320-10501 CUSHION (LH)CUSHION (LH)
-
2609180-06285 SPACER (6.5X10X9) (LH)SPACER (6.5X10X9) (LH)
-
2741200-49J00 RAIL, SEATRAIL, SEAT
-
2842650-49J00 PLATE, REAR FRAME (RH)PLATE, REAR FRAME (RH)
-
2994417-48B14 ...CUSHION...CUSHION
-
3042661-49J00 PLATE, REAR FRAME (LH)PLATE, REAR FRAME (LH)
-
3109106-08106 BOLT (8X20)BOLT (8X20)
-
3209800-21022 TOOL ASSYTOOL ASSY
-
3309816-00059 HEXAGON SPANNERHEXAGON SPANNER
