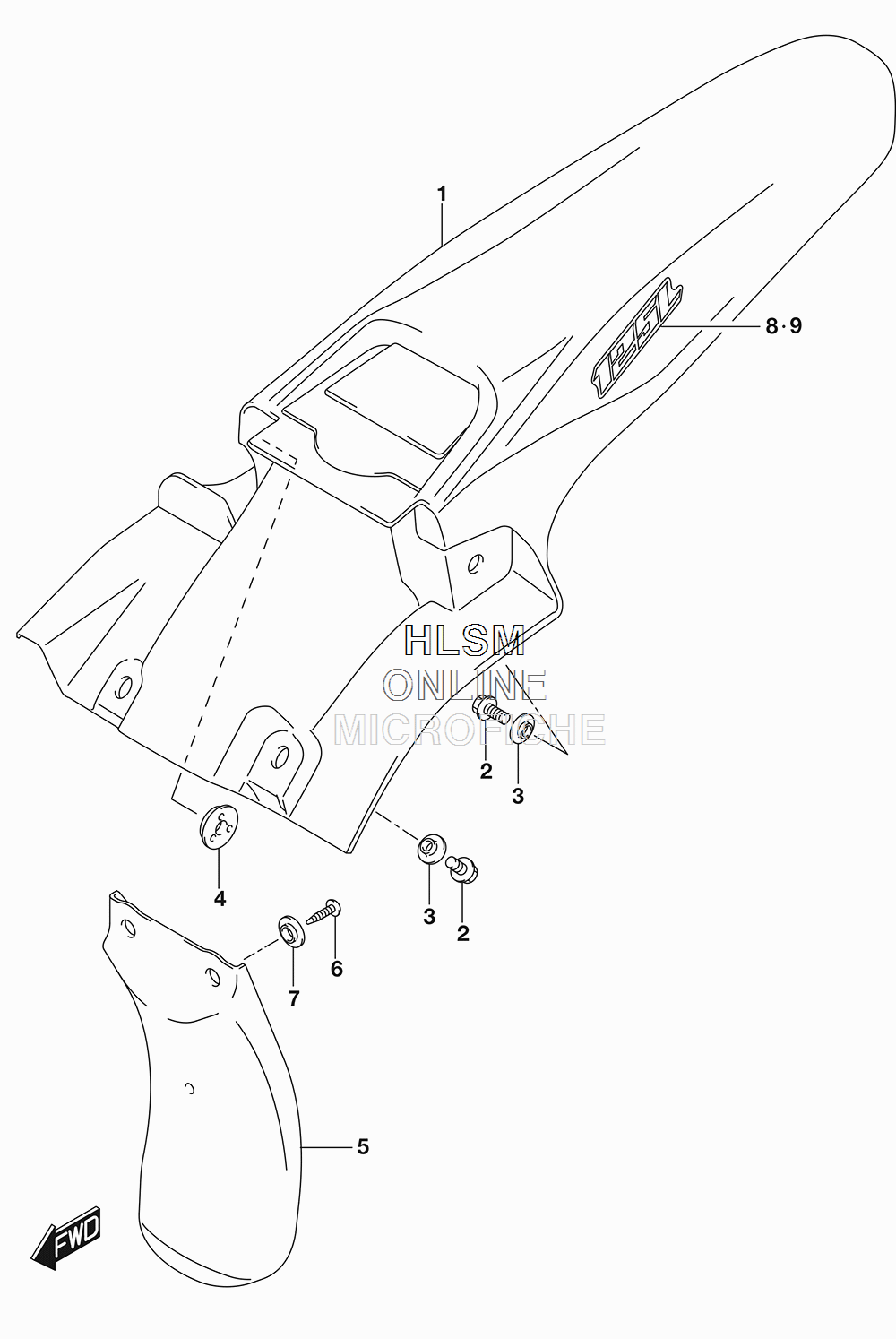

FENDER - REAR (CANADA) для Suzuki DR-Z125LL7 - 2017 года выпуска
-
№АртикулНазвание
-
163113-08G60-019 FENDER, REAR (019 - BLACK)FENDER, REAR (019 - BLACK)
-
209103-06200 BOLT (6X16)BOLT (6X16)
-
309169-06076 WASHERWASHER
-
409169-08045 WASHERWASHER
-
563411-29F00 MUD GUARD, FRONTMUD GUARD, FRONT
-
609132-05053 SCREW (5X16)SCREW (5X16)
-
709169-06045 WASHERWASHER
-
868171-08G70-BJB EMBLEM (RH) (BJB - BLACK/WHITE)EMBLEM (RH) (BJB - BLACK/WHITE)
-
968172-08G70-BJB EMBLEM (LH) (BJB - BLACK/WHITE)EMBLEM (LH) (BJB - BLACK/WHITE)
