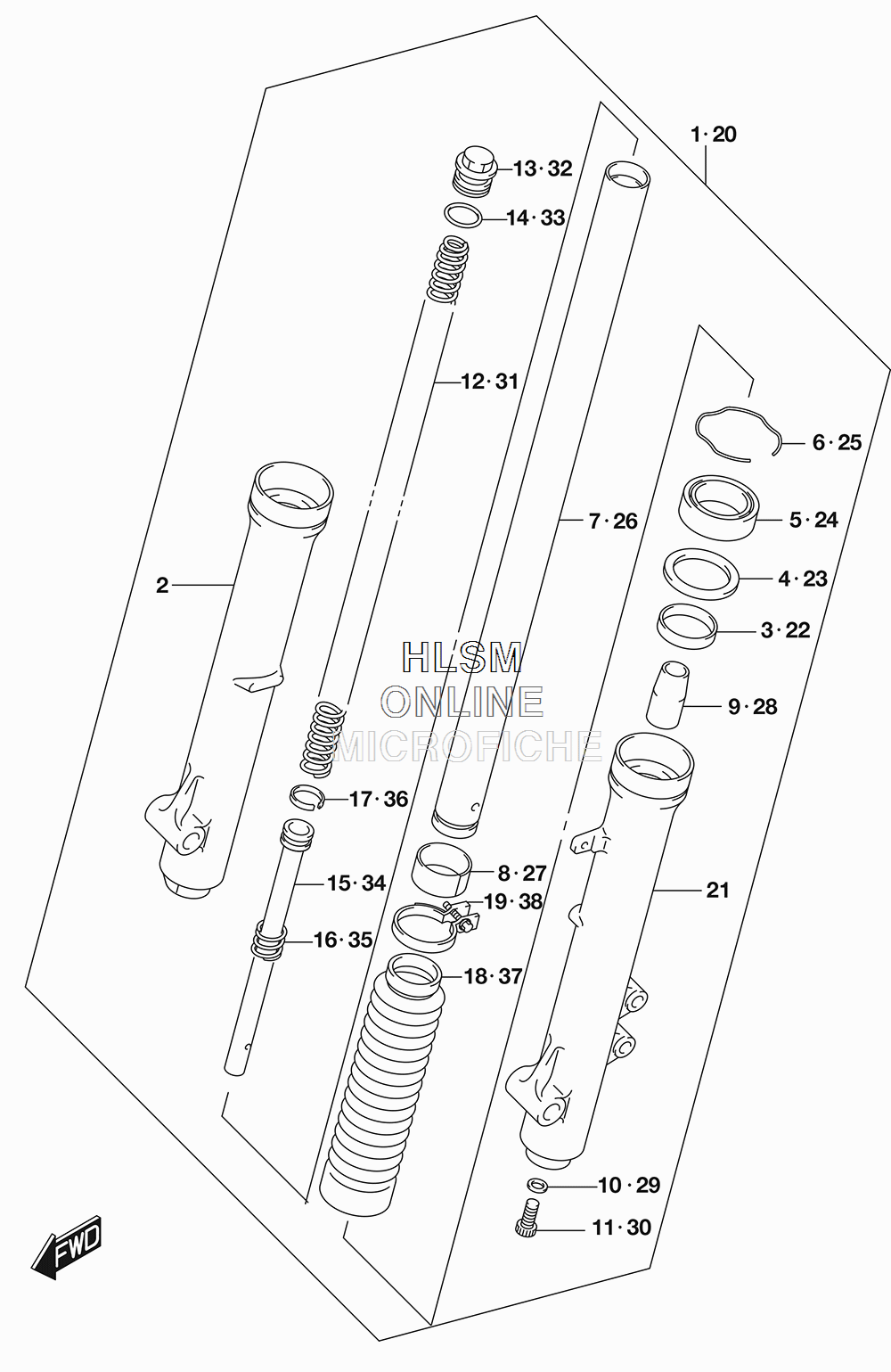

SUSPENSION - FRONT FORK DAMPER (CALIF.) для Suzuki DR-Z125LL7 - 2017 года выпуска
-
№АртикулНазвание
-
151103-08G60 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251130-08G10 ...TUBE, OUTER (RH)...TUBE, OUTER (RH)
-
351152-43EC0 ...BUSH, GUIDE...BUSH, GUIDE
-
451168-43EC0 ...SPACER, SEAL...SPACER, SEAL
-
551153-48420 ...OIL SEAL...OIL SEAL
-
651156-48730 ...RING, STOPPER...RING, STOPPER
-
751110-08G00 ...TUBE, INNER...TUBE, INNER
-
851121-08G00 ...BUSH, SLIDE...BUSH, SLIDE
-
951195-48000 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
1051148-36011 ...GASKET...GASKET
-
1151147-48130 ...BOLT (8X27)...BOLT (8X27)
-
1251171-08G00 ...SPRING, FRONT...SPRING, FRONT
-
1351351-48000 ...BOLT, FORK...BOLT, FORK
-
1451181-25030 ...O RING...O RING
-
1551146-08G00 ...CYLINDER...CYLINDER
-
1651177-08G00 ...SPRING, REBOUND...SPRING, REBOUND
-
1751196-48000 ...RING...RING
-
1851571-08G40 ...BOOT...BOOT
-
1951575-08G00 ...BAND...BAND
-
2051104-08G60 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2151140-08G10 ...TUBE, OUTER (LH)...TUBE, OUTER (LH)
-
2251152-43EC0 ...BUSH, GUIDE...BUSH, GUIDE
-
2351168-43EC0 ...SPACER, SEAL...SPACER, SEAL
-
2451153-48420 ...OIL SEAL...OIL SEAL
-
2551156-48730 ...RING, STOPPER...RING, STOPPER
-
2651110-08G00 ...TUBE, INNER...TUBE, INNER
-
2751121-08G00 ...BUSH, SLIDE...BUSH, SLIDE
-
2851195-48000 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
2951148-36011 ...GASKET...GASKET
-
3051147-48130 ...BOLT (8X27)...BOLT (8X27)
-
3151171-08G00 ...SPRING, FRONT...SPRING, FRONT
-
3251351-48000 ...BOLT, FORK...BOLT, FORK
-
3351181-25030 ...O RING...O RING
-
3451146-08G00 ...CYLINDER...CYLINDER
-
3551177-08G00 ...SPRING, REBOUND...SPRING, REBOUND
-
3651196-48000 ...RING...RING
-
3751571-08G40 ...BOOT...BOOT
-
3851575-08G00 ...BAND...BAND
