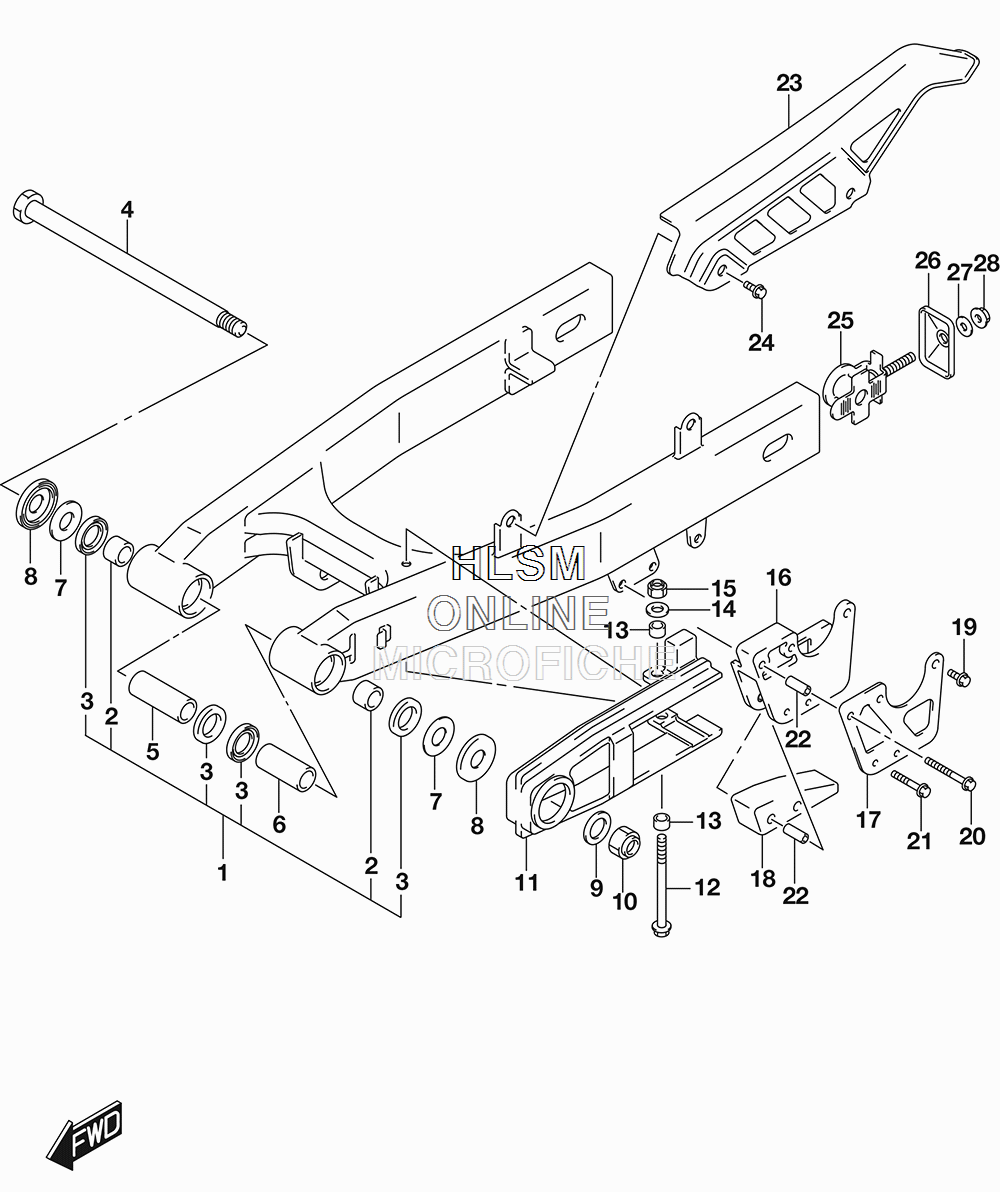

REAR SWINGARM (CALIF.) для Suzuki DR-Z125LL7 - 2017 года выпуска
-
№АртикулНазвание
-
161000-08G00-13L SWINGINGARM ASSY, REAR (13L - SILVER)SWINGINGARM ASSY, REAR (13L - SILVER)
-
261261-13700 ...BUSHING...BUSHING
-
309283-20031 ...OIL SEAL (20X27X5)...OIL SEAL (20X27X5)
-
461211-44A11 SHAFT, PIVOTSHAFT, PIVOT
-
561251-08G00 SPACER, PIVOT (RH)SPACER, PIVOT (RH)
-
661251-42A00 SPACER, PIVOT (LH)SPACER, PIVOT (LH)
-
708211-14321 WASHERWASHER
-
861262-40400 SEAL, PIVOTSEAL, PIVOT
-
909160-14057 WASHER (14.5X24X2.3)WASHER (14.5X24X2.3)
-
1009159-14019 NUTNUT
-
1161273-08G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1201560-0665B BOLTBOLT
-
1309180-06257 SPACER (6.5X9X6.5)SPACER (6.5X9X6.5)
-
1408322-0106B WASHERWASHER
-
1508319-2106B NUTNUT
-
1661343-02B40 GUIDE, CHAINGUIDE, CHAIN
-
1761342-02B40 PLATE, GUIDE CHAIN OUTERPLATE, GUIDE CHAIN OUTER
-
1861348-08G00 DEFENSE, CHAIN GUIDEDEFENSE, CHAIN GUIDE
-
1901547-0616A BOLTBOLT
-
2001547-0630A BOLTBOLT
-
2101547-0640A BOLTBOLT
-
2209180-06333 SPACER (6.5X10X23.5)SPACER (6.5X10X23.5)
-
2361311-01A03 CASE, CHAINCASE, CHAIN
-
2409116-06096 BOLT (6X10)BOLT (6X10)
-
2561410-08G00 ADJUSTER, CHAINADJUSTER, CHAIN
-
2661421-38200 PLATE, CHAIN ADJUSTER GUIDEPLATE, CHAIN ADJUSTER GUIDE
-
2709160-12085 WASHER (12.5X26X2.3)WASHER (12.5X26X2.3)
-
2808319-3108A NUTNUT
