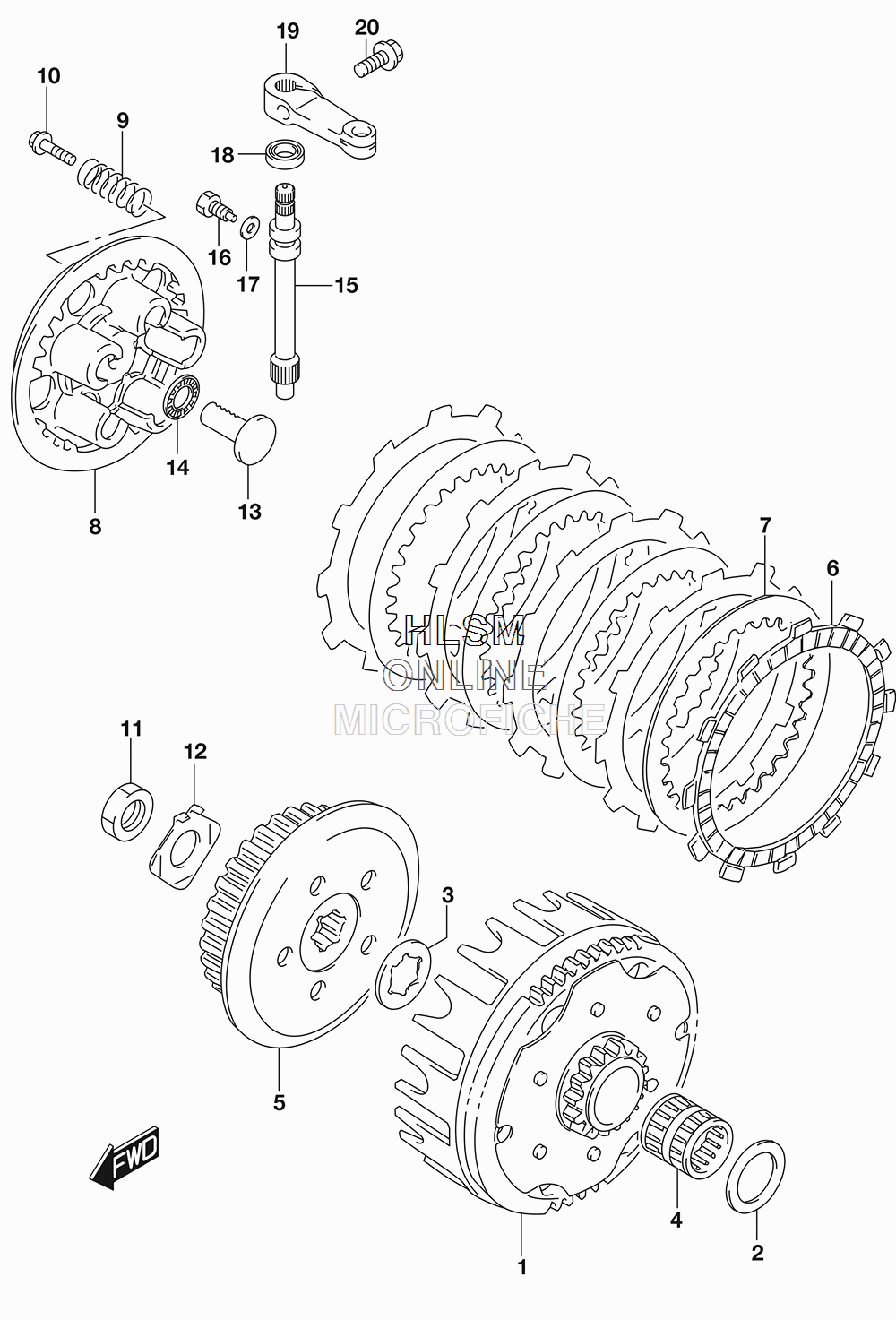

CLUTCH для Suzuki RM-85L7 - 2017 года выпуска
-
№АртикулНазвание
-
121200-02B41 GEAR ASSY, PRIMARY DRIVEN (NT:62/16)GEAR ASSY, PRIMARY DRIVEN (NT:62/16)
-
209181-20223 SHIM (20X32X1)SHIM (20X32X1)
-
309167-20024 LOCK WASHERLOCK WASHER
-
409263-20023 BEARING (20X25X26)BEARING (20X25X26)
-
521410-01B01 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
621441-13A01 PLATE, CLUTCH DRIVE (T:3.0)PLATE, CLUTCH DRIVE (T:3.0)
-
721451-36200 PLATE, CLUTCH DRIVEN (T:2.0)PLATE, CLUTCH DRIVEN (T:2.0)
-
821462-02B41 DISC, PRESSUREDISC, PRESSURE
-
909440-16017 SPRINGSPRING
-
1009116-05021 BOLT (5X20)BOLT (5X20)
-
1109140-16027 NUTNUT
-
1209169-16005 WASHERWASHER
-
1323165-44B01 RACKRACK
-
1409263-10002 BEARING (10X22X2.8)BEARING (10X22X2.8)
-
1523261-20A01 PINIONPINION
-
1609135-06501 BOLT (6X10)BOLT (6X10)
-
1709168-06004 GASKET (6.2X11X1.2)GASKET (6.2X11X1.2)
-
1809285-10004 OIL SEAL (10X17X5)OIL SEAL (10X17X5)
-
1923271-20902 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2001547-0616A BOLT (6X16)BOLT (6X16)
