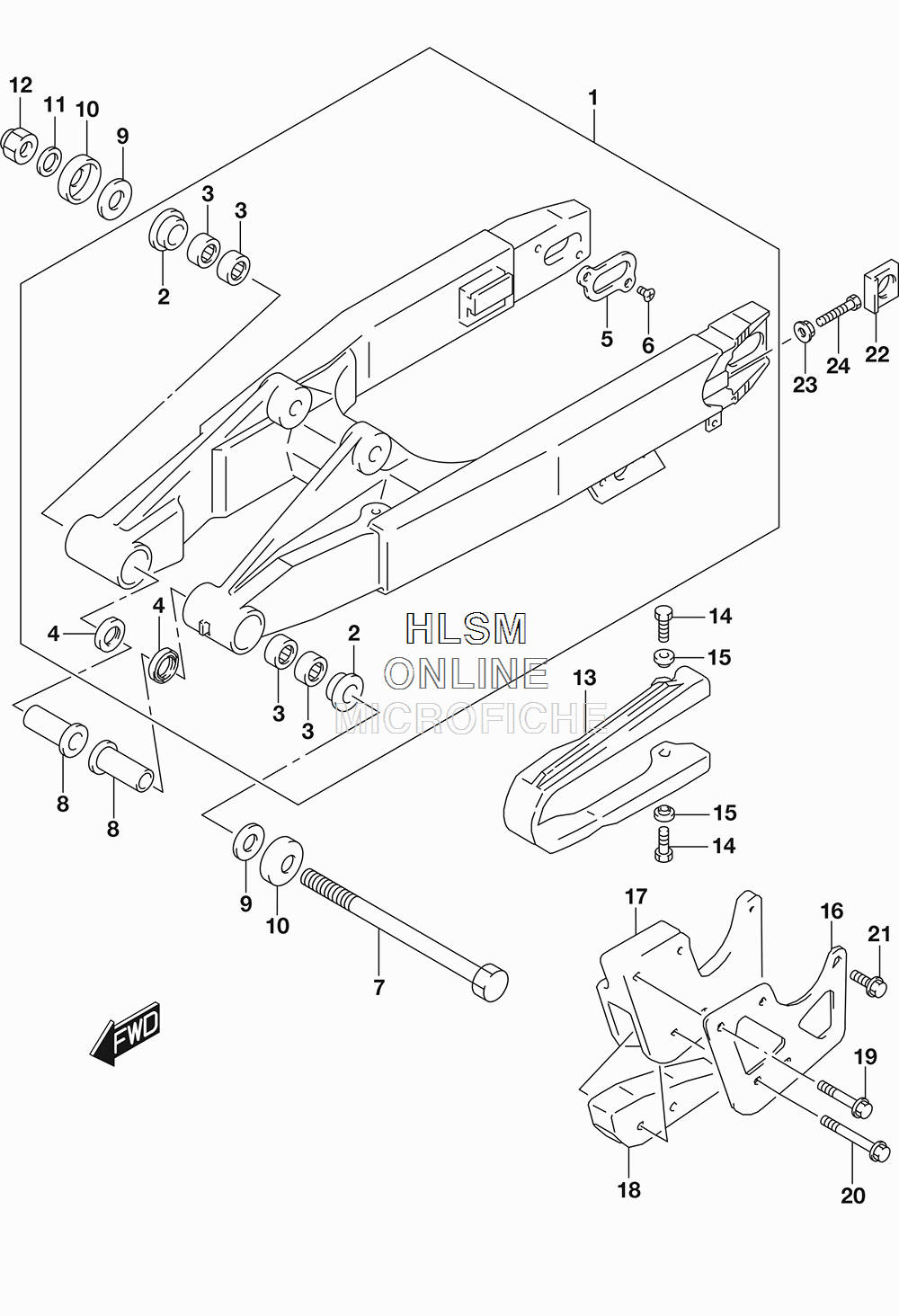

REAR SWINGARM (EXCEPT CALIF.) для Suzuki RM-85L7 - 2017 года выпуска
-
№АртикулНазвание
-
161000-03BD0 SWINGARM ASSY, REARSWINGARM ASSY, REAR
-
261261-02B00 ...BUSHING...BUSHING
-
309263-17039 ...BEARING (17X24X20)...BEARING (17X24X20)
-
409285-17001 ...OIL SEAL (17X24X3)...OIL SEAL (17X24X3)
-
561128-03BD0 ...PLATE, SWINGARM...PLATE, SWINGARM
-
602122-0410B ...SCREW...SCREW
-
761211-02B40 SHAFT, RR SWINGARM PIVOTSHAFT, RR SWINGARM PIVOT
-
861251-02B40 SPACER, RR SWINGARM PIVOTSPACER, RR SWINGARM PIVOT
-
908211-12282 WASHERWASHER
-
1061262-03B00 COVER, PIVOTCOVER, PIVOT
-
1108322-0112B WASHERWASHER
-
1208319-2112A NUTNUT
-
1361273-02B20 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1401547-0616A BOLTBOLT
-
1509169-06057 WASHERWASHER
-
1661342-02B40 PLATE, GUIDE OUTERPLATE, GUIDE OUTER
-
1761343-02B40 GUIDE, CHAINGUIDE, CHAIN
-
1861348-02B20 DEFENSE, CHAIN GUIDEDEFENSE, CHAIN GUIDE
-
1909103-06251 BOLT (6X30) (UPPER)BOLT (6X30) (UPPER)
-
2009103-06241 BOLT (6X40) (LOWER)BOLT (6X40) (LOWER)
-
2101547-0616A BOLT (REAR)BOLT (REAR)
-
2261445-03B00 WASHER, CHAIN ADJUSTERWASHER, CHAIN ADJUSTER
-
2309159-08034 NUTNUT
-
2409100-08301 BOLT (8X43)BOLT (8X43)
