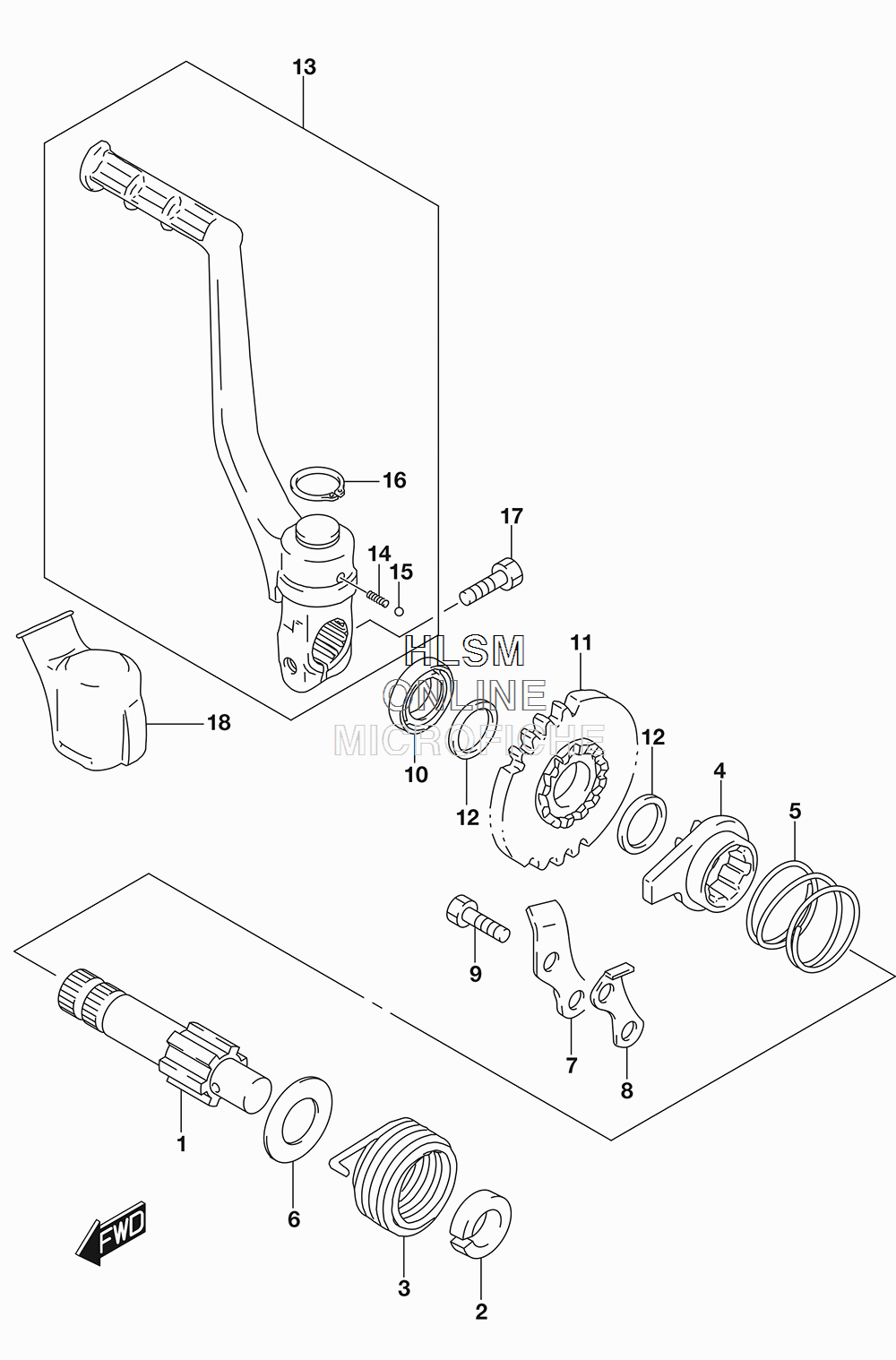

KICK STARTER для Suzuki RM-85L7 - 2017 года выпуска
-
№АртикулНазвание
-
126211-02B04 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-02B00 GUIDE, SPRINGGUIDE, SPRING
-
309448-35007 SPRINGSPRING
-
426231-02B02 STARTER, KICKSTARTER, KICK
-
509440-31002 SPRINGSPRING
-
608211-12301 PLATEPLATE
-
726232-40200 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
826233-40201 STOPPER, KICK STARTERSTOPPER, KICK STARTER
-
901500-0612A BOLTBOLT
-
1009285-14001 OIL SEAL (14X24X6)OIL SEAL (14X24X6)
-
1126241-02B41 GEAR, KICK STARTER DRIVEGEAR, KICK STARTER DRIVE
-
1209181-14139 SHIM (14X20X1)SHIM (14X20X1)
-
1326300-03B00 LEVER ASSY, KICK STARTERLEVER ASSY, KICK STARTER
-
1409440-05003 ...SPRING...SPRING
-
1506111-07004 ...BALL...BALL
-
1608331-3115A ...CIRCLIP...CIRCLIP
-
1701500-06207 BOLTBOLT
-
1826341-20401 COVER, KICK STARTER JOINTCOVER, KICK STARTER JOINT
