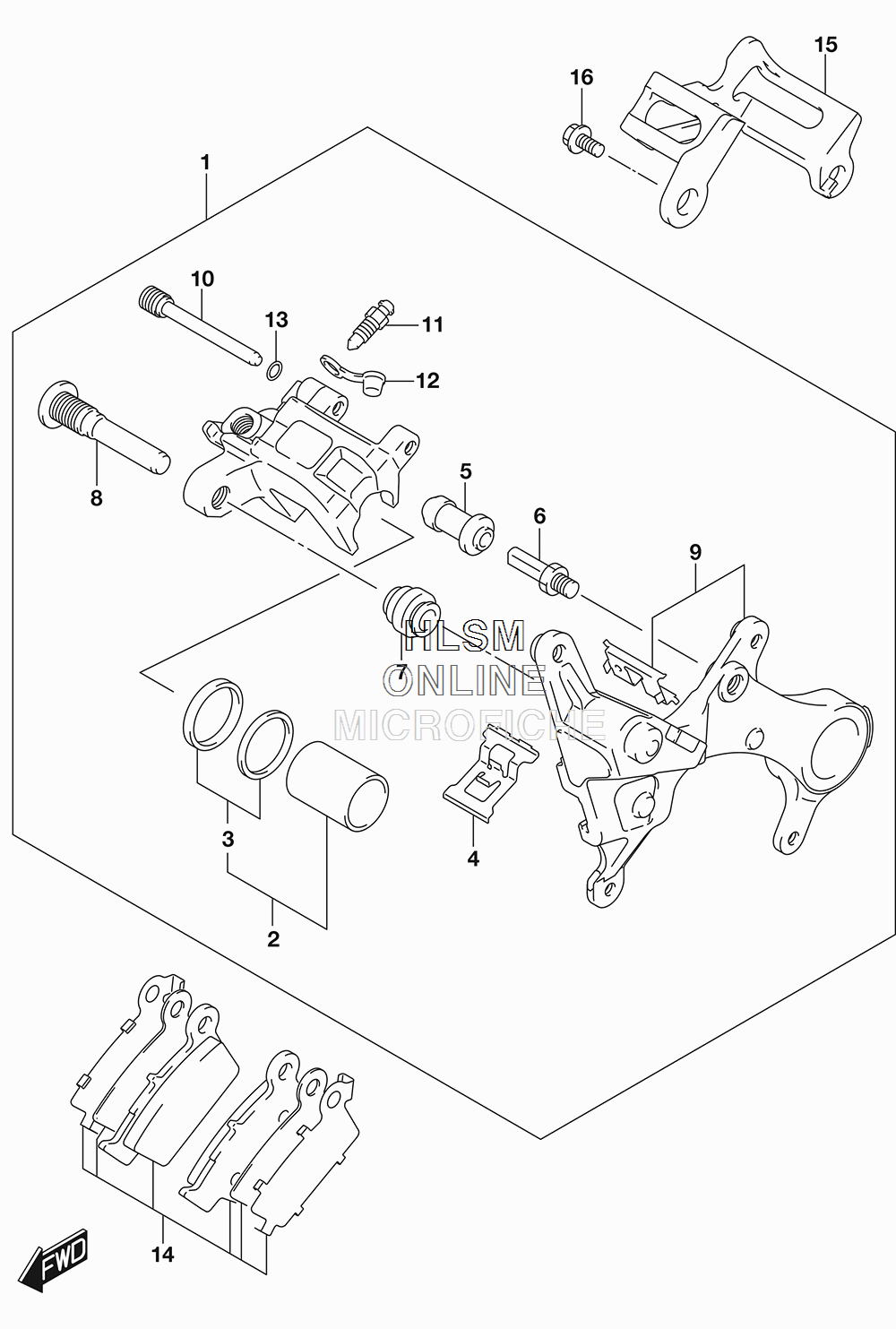

BRAKE - REAR CALIPER для Suzuki RM-Z450L7 - 2017 года выпуска
-
№АртикулНазвание
-
169100-28H01-999 CALIPER ASSY, REARCALIPER ASSY, REAR
-
269100-14820 ...PISTON SET...PISTON SET
-
369100-21840 ......SEAL SET, PISTON......SEAL SET, PISTON
-
469315-35G00 ...SPRING...SPRING
-
559386-13A00 ...BOOT...BOOT
-
659382-14500 ...PIN...PIN
-
759303-14500 ...BOOT...BOOT
-
859305-36E00 ...PIN, BOLT...PIN, BOLT
-
969350-28H00 ...BRACKET...BRACKET
-
1069345-37F00 ...PIN, HANGER...PIN, HANGER
-
1159121-01A00 ...BLEEDER...BLEEDER
-
1259122-01A00 ...CAP...CAP
-
1359145-37F00 ...RING, STOPPER...RING, STOPPER
-
1469100-28820 PAD SETPAD SET
-
1569725-37F11 GUARD, REAR CALIPERGUARD, REAR CALIPER
-
1609116-06197 BOLT (6X12)BOLT (6X12)
