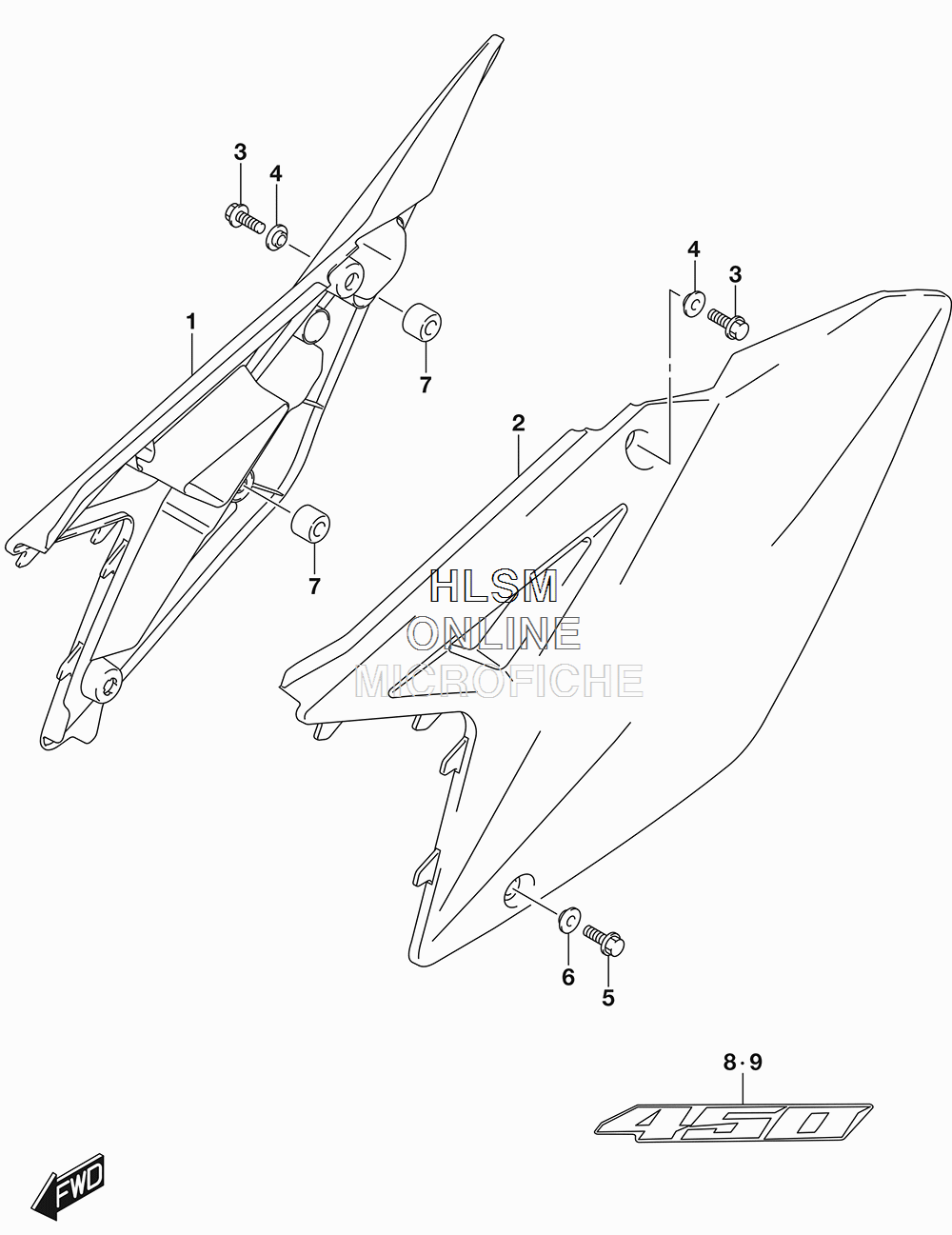

SIDE COVER для Suzuki RM-Z450L7 - 2017 года выпуска
-
№АртикулНазвание
-
147111-28H02-019 COVER, FRAME (RH) (019 - BLACK)COVER, FRAME (RH) (019 - BLACK)
-
247211-28H00-019 COVER, FRAME (LH) (019 - BLACK)COVER, FRAME (LH) (019 - BLACK)
-
301547-0620A BOLTBOLT
-
447191-28H00 WASHERWASHER
-
501547-0616A BOLT (FRONT)BOLT (FRONT)
-
647191-28H00 WASHER (FRONT)WASHER (FRONT)
-
747161-08G00 CUSHION, (RH)CUSHION, (RH)
-
868135-28H00-GY8 TAPE, FRAME COVER, (RH) (GY8 - YELLOW/BLACK)TAPE, FRAME COVER, (RH) (GY8 - YELLOW/BLACK)
-
968145-28H00-GY8 TAPE, FRAME COVER, (LH) (GY8 - YELLOW/BLACK)TAPE, FRAME COVER, (LH) (GY8 - YELLOW/BLACK)
