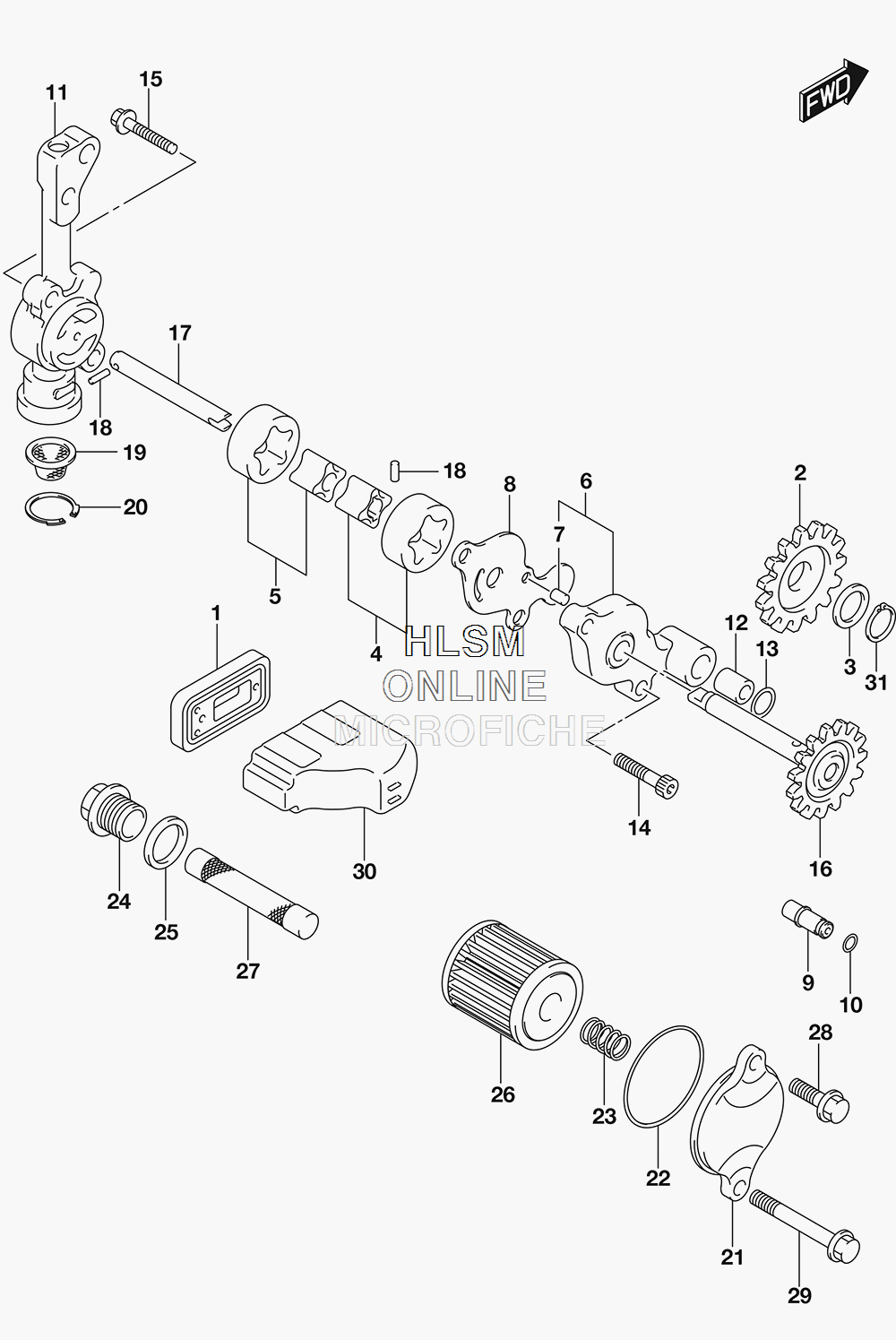

OIL PUMP для Suzuki RM-Z450L7 - 2017 года выпуска
-
№АртикулНазвание
-
113150-28H10 VALVE ASSY, OIL REEDVALVE ASSY, OIL REED
-
216321-28H00 GEAR, OIL PUMP IDLE (NT:15)GEAR, OIL PUMP IDLE (NT:15)
-
309181-12130 SHIM (12X18X0.5)SHIM (12X18X0.5)
-
416410-35G00 ROTOR SET, OIL PUMP NO.1ROTOR SET, OIL PUMP NO.1
-
516410-45G00 ROTOR SET, OIL PUMP NO.2ROTOR SET, OIL PUMP NO.2
-
616430-28H00 COVER, OIL PUMP NO.1COVER, OIL PUMP NO.1
-
704221-04089 ...PIN...PIN
-
816432-35G10 PLATE, OIL PUMP NO.1PLATE, OIL PUMP NO.1
-
916440-28H00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1009280-05007 O RING (D:1.2,ID:4.7)O RING (D:1.2,ID:4.7)
-
1116450-28H10 COVER, OIL PUMP NO.2COVER, OIL PUMP NO.2
-
1204211-09149 PINPIN
-
1309280-09005 O RING (D:1.9,ID:8.6)O RING (D:1.9,ID:8.6)
-
1407130-0520A BOLTBOLT
-
1501547-0625A BOLTBOLT
-
1616440-35G10 SHAFT, OIL PUMP DRIVEN GEARSHAFT, OIL PUMP DRIVEN GEAR
-
1716443-28H00 SHAFT, OIL PUMP NO.2SHAFT, OIL PUMP NO.2
-
1809261-02008 PIN (2.5X11.8)PIN (2.5X11.8)
-
1916530-28H00 STRAINER, OIL PUMP NO.2STRAINER, OIL PUMP NO.2
-
2009381-19003 CIRCLIPCIRCLIP
-
2116315-35G30 CAP, ENGINE OIL FILTER OUTERCAP, ENGINE OIL FILTER OUTER
-
2209280-39001 O RING (D:2,ID:38.5)O RING (D:2,ID:38.5)
-
2309440-10038 SPRINGSPRING
-
2416316-10H01 CAP, ENGINE OIL STRAINERCAP, ENGINE OIL STRAINER
-
2509168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2616510-35G00 FILTER, ENGINE OILFILTER, ENGINE OIL
-
2716520-10H10 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
2801547-0616A BOLTBOLT
-
2901547-0640A BOLTBOLT
-
3013158-28H00 GUIDE, OIL REED VALVEGUIDE, OIL REED VALVE
-
3108331-3112A CIRCLIPCIRCLIP
