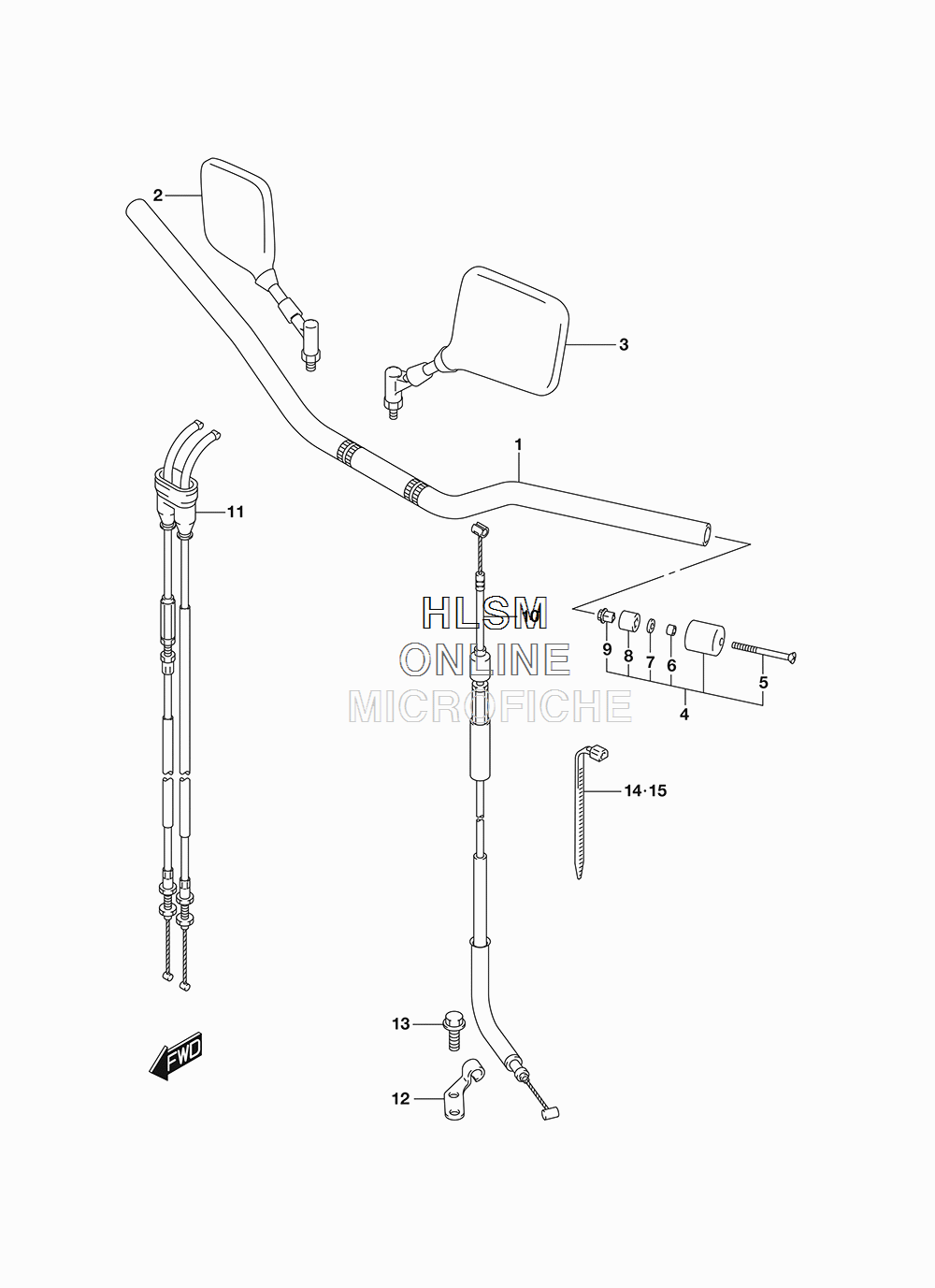

HANDLEBAR для Suzuki DR-Z400SML8 - 2018 года выпуска
-
№АртикулНазвание
-
156111-29F40 HANDLEBARHANDLEBAR
-
256500-06G30 MIRROR ASSY, REAR VIEW (RH)MIRROR ASSY, REAR VIEW (RH)
-
356600-06G30 MIRROR ASSY, REAR VIEW (LH)MIRROR ASSY, REAR VIEW (LH)
-
456200-29842 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
502122-0645B ...SCREW...SCREW
-
609180-06246 ...SPACER (6.1X8X5.2)...SPACER (6.1X8X5.2)
-
708322-0106B ...WASHER...WASHER
-
856272-29F00 ...EXPANDER...EXPANDER
-
956273-29F01 ...NUT...NUT
-
1058200-29F10 CABLE, CLUTCHCABLE, CLUTCH
-
1158301-29F11 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1258634-29F00 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
1301547-0612A BOLTBOLT
-
1409407-10404 CLAMP (L:100)CLAMP (L:100)
-
1509407-25401 CLAMP (L:235)CLAMP (L:235)
