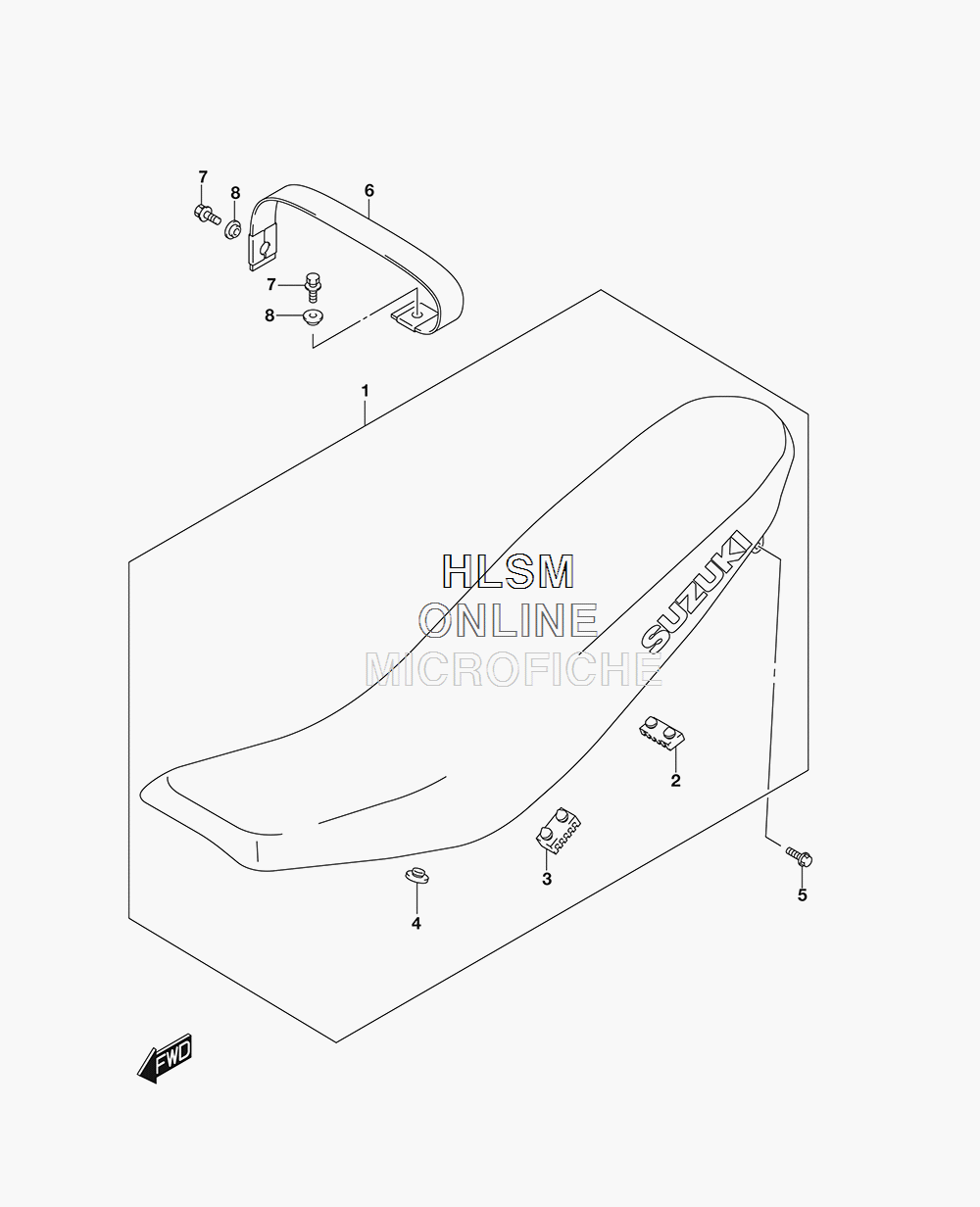

SEAT для Suzuki DR-Z400SML8 - 2018 года выпуска
-
№АртикулНазвание
-
145100-29FE0-BYD SEAT ASSY (BYD - GRAY/BLACK/SILVER)SEAT ASSY (BYD - GRAY/BLACK/SILVER)
-
245149-12C00 ...CUSHION (40X20X6)...CUSHION (40X20X6)
-
345149-31300 ...CUSHION (40X20X15)...CUSHION (40X20X15)
-
409321-10022 ...CUSHION...CUSHION
-
509116-06182 BOLT (6X20)BOLT (6X20)
-
645180-29F00-T5N BAND ASSY, SEAT (T5N - GRAY)BAND ASSY, SEAT (T5N - GRAY)
-
709116-06150 BOLT (6X25)BOLT (6X25)
-
809169-06063 WASHERWASHER
