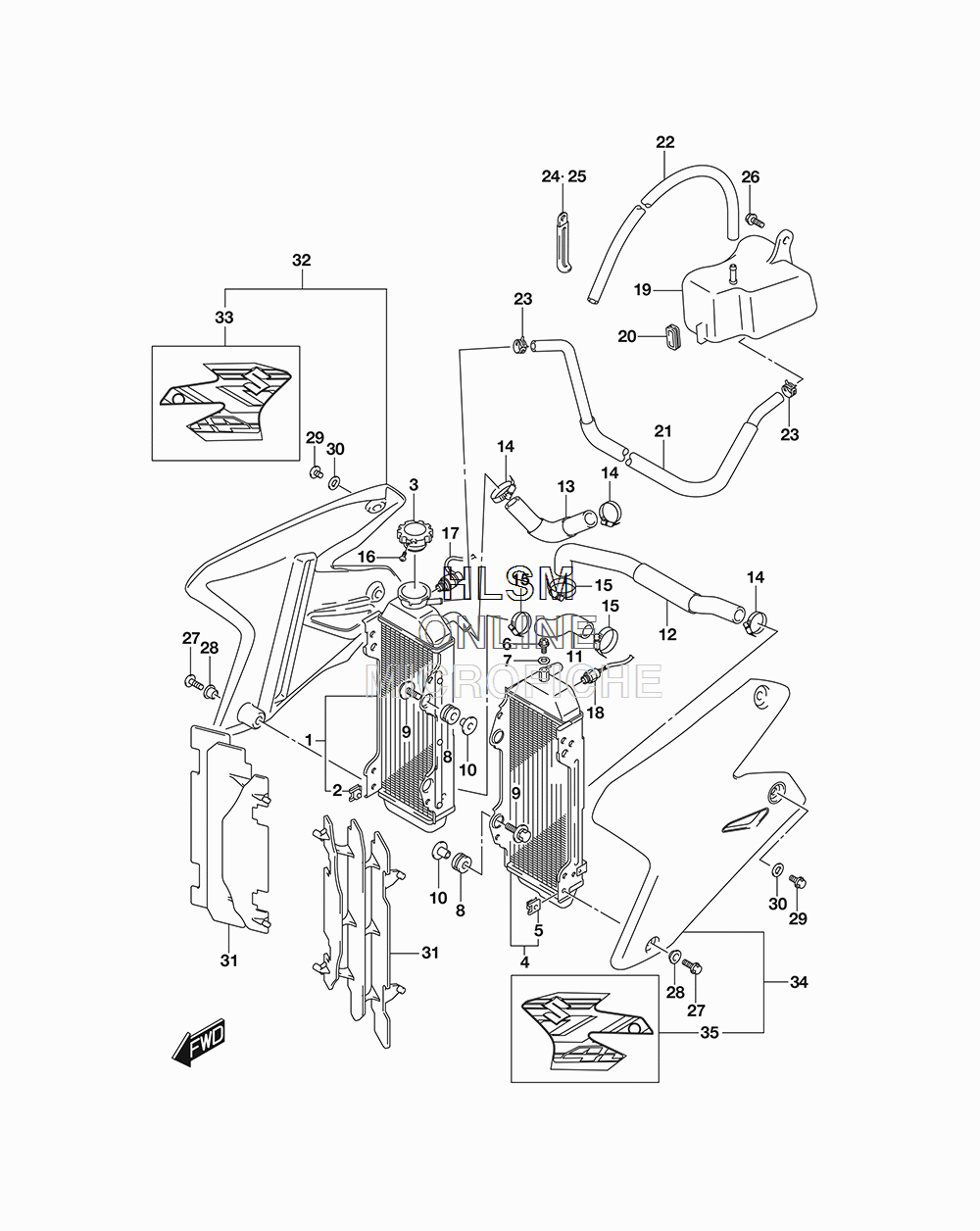

RADIATOR для Suzuki DR-Z400SML8 - 2018 года выпуска
-
№АртикулНазвание
-
117710-29F40 RADIATOR, WATER (RH)RADIATOR, WATER (RH)
-
209148-06015 ...NUT...NUT
-
317730-19D11 CAP, RADIATOR (1.1)CAP, RADIATOR (1.1)
-
417720-29F40 RADIATOR, WATER (LH)RADIATOR, WATER (LH)
-
509148-06015 ...NUT...NUT
-
617568-50F00 BOLT, AIR RELEASEBOLT, AIR RELEASE
-
709168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
817787-19A00 CUSHION, RADIATOR LOWERCUSHION, RADIATOR LOWER
-
909116-06147 BOLT (6X25)BOLT (6X25)
-
1009180-06243 SPACER (6.5X10.5X14.1)SPACER (6.5X10.5X14.1)
-
1117851-29F10 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
1217852-29F30 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
1317853-29F10 HOSE, RADIATOR JOINTHOSE, RADIATOR JOINT
-
1409402-28513 CLAMPCLAMP
-
1509402-32512 CLAMPCLAMP
-
1617733-03D10 SCREW, RADIATOR CAPSCREW, RADIATOR CAP
-
1734850-29F00 SWITCH ASSY, WATER TEMPSWITCH ASSY, WATER TEMP
-
1817680-24A30 SWITCH, FANSWITCH, FAN
-
1917911-29F11 TANK, RESERVOIRTANK, RESERVOIR
-
2017913-29F00 CUSHION, RESERVOIR TANKCUSHION, RESERVOIR TANK
-
2117981-29F01 HOSE, INLETHOSE, INLET
-
2209352-50901-00B HOSE (5X9X2000) (L:2000->650)HOSE (5X9X2000) (L:2000->650)
-
2309401-08411 CLIPCLIP
-
2409404-08205 CLAMP (L:45)CLAMP (L:45)
-
2509404-06429 CLAMP (L:45)CLAMP (L:45)
-
2601550-0612A BOLTBOLT
-
2709103-06274 BOLT (6X16)BOLT (6X16)
-
2809169-06053 WASHERWASHER
-
2909103-06275 BOLT (6X8)BOLT (6X8)
-
3009160-06125 WASHER (6.5X14X1.6)WASHER (6.5X14X1.6)
-
3117831-37E11 LOUVER, RADIATORLOUVER, RADIATOR
-
3217760-33K00-02X COVER, RADIATOR (RH) (02X - BLACK)COVER, RADIATOR (RH) (02X - BLACK)
-
3368685-29F00-BLW ...TAPE, RADIATOR COVER (RH) (BLW - GRAY/YELLOW/BLACK/ORANGE)...TAPE, RADIATOR COVER (RH) (BLW - GRAY/YELLOW/BLACK/ORANGE)
-
3417770-33K00-02X COVER, RADIATOR (LH) (02X - BLACK)COVER, RADIATOR (LH) (02X - BLACK)
-
3568695-29F00-BLW ...TAPE, RADIATOR COVER (LH) (BLW - GRAY/YELLOW/BLACK/ORANGE)...TAPE, RADIATOR COVER (LH) (BLW - GRAY/YELLOW/BLACK/ORANGE)
