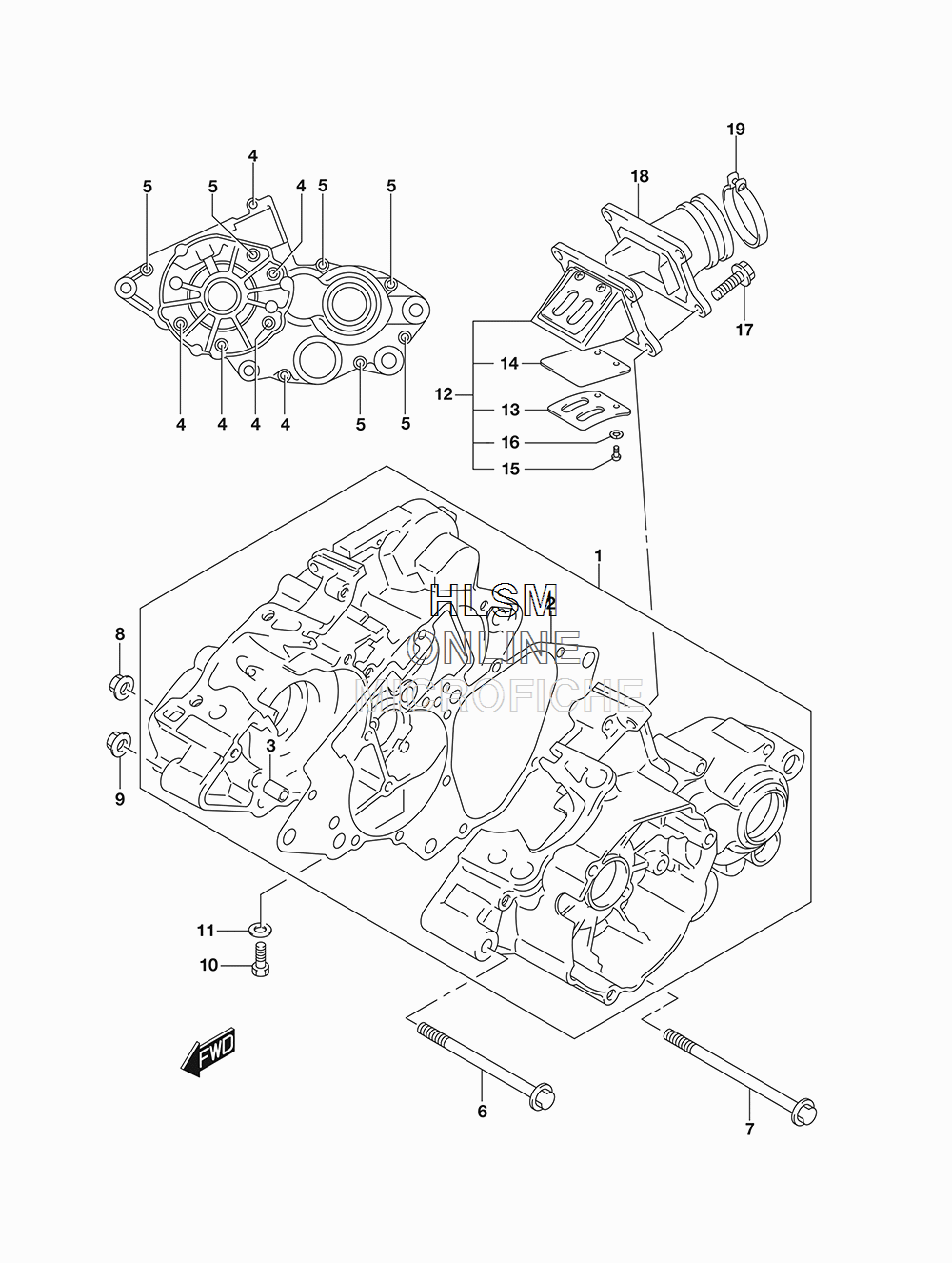

CRANKCASE для Suzuki RM85L8 - 2018 года выпуска
-
№АртикулНазвание
-
111300-03822 CRANKCASE SETCRANKCASE SET
-
211481-03B00 ...GASKET, CRANKCASE...GASKET, CRANKCASE
-
304211-09129 ...PIN...PIN
-
401547-0640A ...BOLT...BOLT
-
501547-0650A ...BOLT (6X50)...BOLT (6X50)
-
609103-10345 BOLT (10X95)BOLT (10X95)
-
709103-08296 BOLT (8X102)BOLT (8X102)
-
809159-08067 NUTNUT
-
909159-10060 NUTNUT
-
1001500-0816A PLUG (OIL DRAIN)PLUG (OIL DRAIN)
-
1109168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1213150-02B50 VALVE ASSY, REEDVALVE ASSY, REED
-
1313152-02B50 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
1413153-02B40 ...VALVE, REED...VALVE, REED
-
1502112-0306B ...SCREW...SCREW
-
1608321-2103B ...LOCK WASHER...LOCK WASHER
-
1701547-0620A BOLTBOLT
-
1813110-03B00 PIPE, INTAKEPIPE, INTAKE
-
1909402-42208 CLAMPCLAMP
