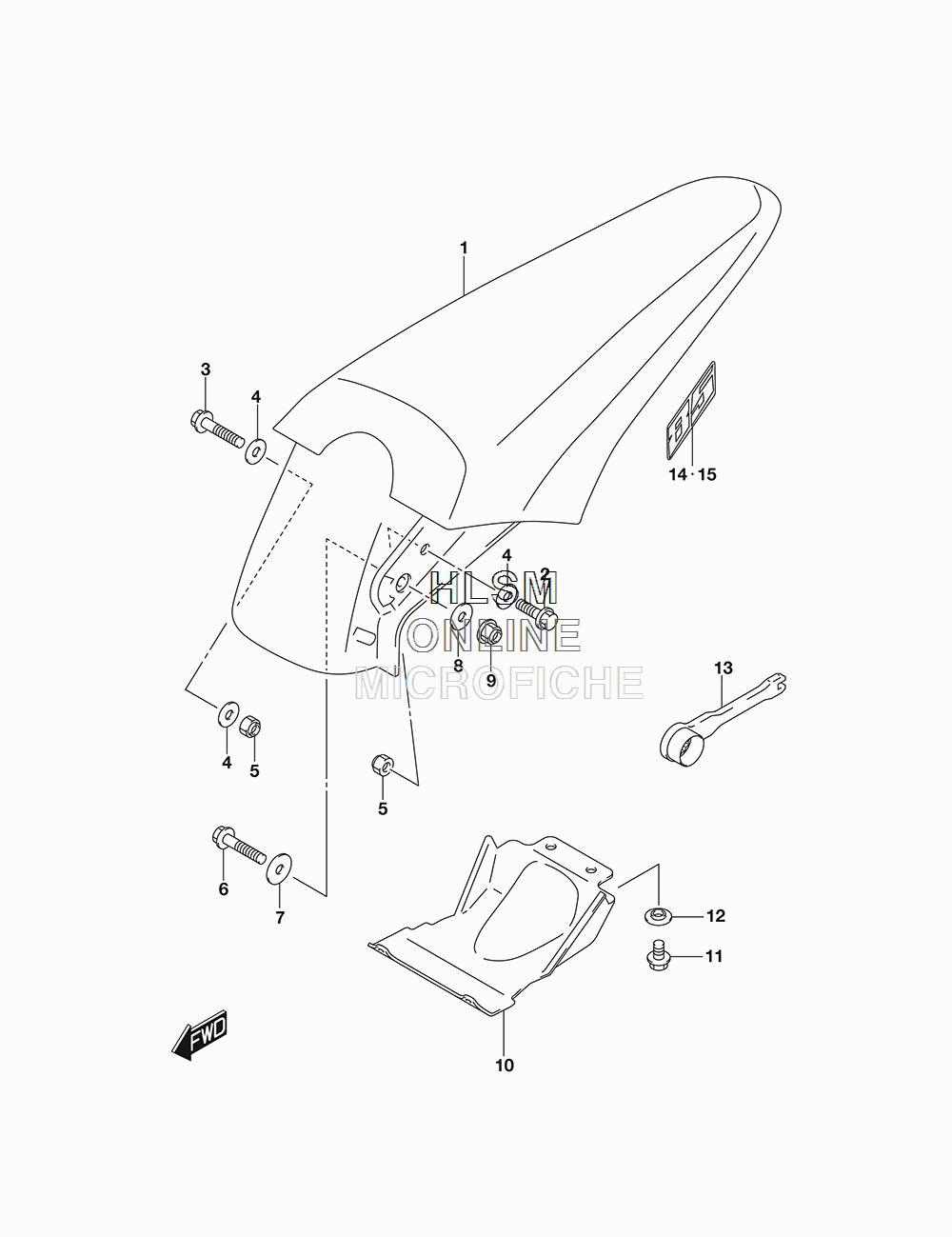

FENDER - REAR для Suzuki RM85L8 - 2018 года выпуска
-
№АртикулНазвание
-
163111-03B60-YU1 FENDER, REAR (YU1 - YELLOW)FENDER, REAR (YU1 - YELLOW)
-
201547-0620A BOLT (LH)BOLT (LH)
-
309103-06251 BOLT (6X30) (RH)BOLT (6X30) (RH)
-
409160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
508319-2106A NUTNUT
-
609103-06251 BOLT (6X30)BOLT (6X30)
-
709160-06135 WASHER (6.5X26X2.3)WASHER (6.5X26X2.3)
-
809160-06132 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
908319-3106B NUTNUT
-
1063351-03B00 MUDGUARD, REAR FENDER FRONTMUDGUARD, REAR FENDER FRONT
-
1101547-0610B BOLTBOLT
-
1209169-06010 WASHERWASHER
-
1309816-00182 BOX SPANNER (21 & 5.8)BOX SPANNER (21 & 5.8)
-
1468175-03B50-GY8 EMBLEM, REAR FENDER (RH) (GY8 - YELLOW/BLACK)EMBLEM, REAR FENDER (RH) (GY8 - YELLOW/BLACK)
-
1568176-03B50-GY8 EMBLEM, REAR FENDER (LH) (GY8 - YELLOW/BLACK)EMBLEM, REAR FENDER (LH) (GY8 - YELLOW/BLACK)
