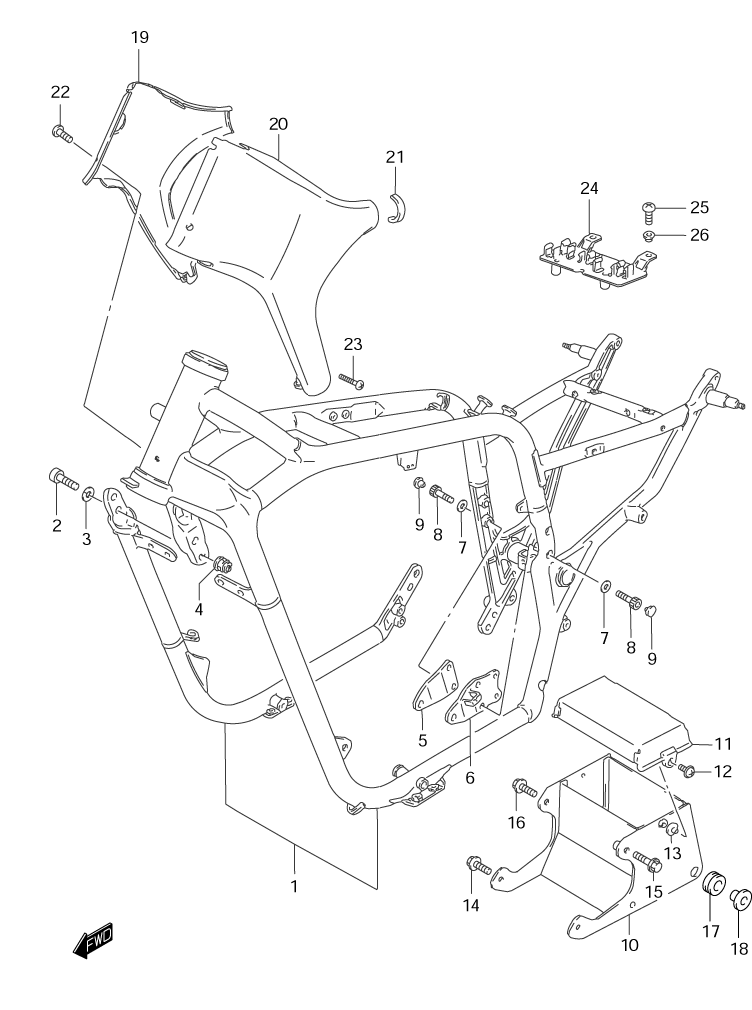

FRAME для Suzuki VS-1400GLP Y - 2000 года выпуска
-
№АртикулНазвание
-
1-141101-38822-33J FRAME SET (BLACK)FRAME SET (BLACK)
-
1-241101-38822-Y7G FRAME SET (GREEN)FRAME SET (GREEN)
-
1-341101-38822-Y7H FRAME SET (BLUE)FRAME SET (BLUE)
-
209106-10019 ...BOLT...BOLT
-
309164-10010 ...WASHER...WASHER
-
408319-31103 ...NUT...NUT
-
5-141951-38B00-33J PLATE, NO.4,(RIGHT) (BLACK)PLATE, NO.4,(RIGHT) (BLACK)
-
5-241951-38B00-Y7G PLATE, NO.4,(RIGHT) (GREEN)PLATE, NO.4,(RIGHT) (GREEN)
-
5-341951-38B00-Y7H PLATE, NO.4,(RIGHT) (BLUE)PLATE, NO.4,(RIGHT) (BLUE)
-
6-141960-38B00-33J PLATE, NO.4,(LEFT) (BLACK)PLATE, NO.4,(LEFT) (BLACK)
-
6-241960-38B00-Y7G PLATE, NO.4,(LEFT) (GREEN)PLATE, NO.4,(LEFT) (GREEN)
-
6-341960-38B00-Y7H PLATE, NO.4,(LEFT) (BLUE)PLATE, NO.4,(LEFT) (BLUE)
-
709164-08015 WASHERWASHER
-
809106-08072 BOLTBOLT
-
909250-06004 CAPCAP
-
1041540-38B01 HOLDER, BATTERYHOLDER, BATTERY
-
1133658-38B00 COVER, BATTERYCOVER, BATTERY
-
1209138-05012 SCREWSCREW
-
1309169-05014 WASHERWASHER
-
1401550-06163 BOLT, FRONTBOLT, FRONT
-
1501550-08203 BOLT, CENTERBOLT, CENTER
-
1609103-08222 BOLT, CENTER (LEFT)BOLT, CENTER (LEFT)
-
1709320-12042 CUSHIONCUSHION
-
1809301-08009 SPACERSPACER
-
19-147350-38B01-33J COVER, FRAME HEAD (RIGHT) (BLACK)COVER, FRAME HEAD (RIGHT) (BLACK)
-
19-247350-38B01-Y7G COVER, FRAME HEAD (RIGHT) (GREEN)COVER, FRAME HEAD (RIGHT) (GREEN)
-
19-347350-38B01-Y7H COVER, FRAME HEAD (RIGHT) (BLUE)COVER, FRAME HEAD (RIGHT) (BLUE)
-
20-147360-38B11-33J COVER, FRAME HEAD (RIGHT) (BLACK)COVER, FRAME HEAD (RIGHT) (BLACK)
-
20-247360-38B11-Y7G COVER, FRAME HEAD (LEFT) (GREEN)COVER, FRAME HEAD (LEFT) (GREEN)
-
20-347360-38B11-Y7H COVER, FRAME HEAD (LEFT) (BLUE)COVER, FRAME HEAD (LEFT) (BLUE)
-
2147359-38B00 PROTECTORPROTECTOR
-
2202142-06103 SCREWSCREW
-
2302112-04253 SCREWSCREW
-
2447411-38B02 HOLDER, COUPLERHOLDER, COUPLER
-
2502142-06163 SCREWSCREW
-
2609169-06010 WASHERWASHER
